CPU Fan
To remove the CPU fan:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the server large access panel. See “Large Access Panel” earlier in this chapter.
4. Unplug the CPU fan from the system board.
5. Remove the four screws
securing the fan assembly to the chassis.
6. Remove the CPU fan
.
1
2

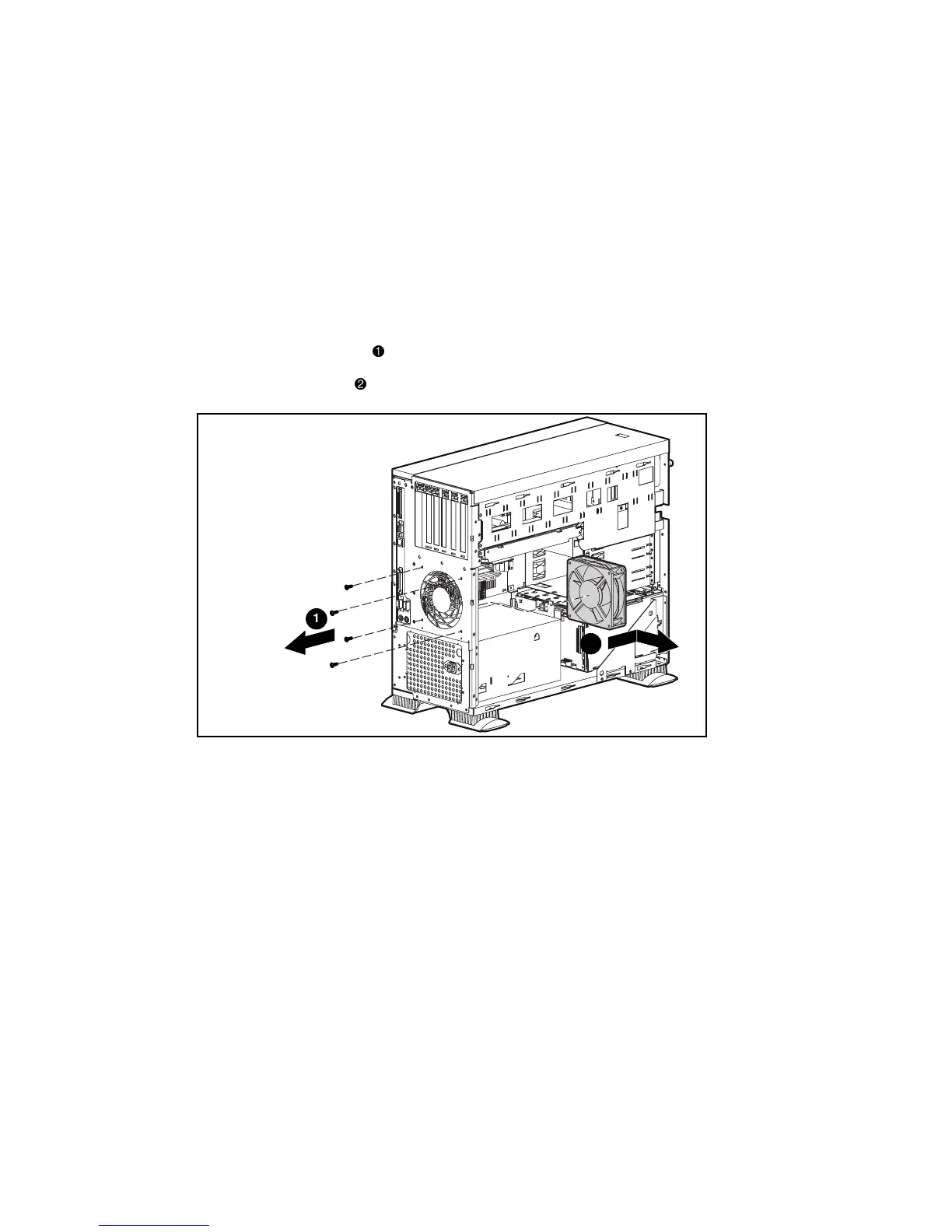

Figure 2-17. Removing the CPU fan
Reverse steps 1 through 6 to replace the CPU fan.
