2-32 Compaq ProLiant ML370 Maintenance and Service Guide
To remove an SDRAM DIMM:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the large access panel. See “Large Access Panel” earlier in this chapter.
4. Press both SDRAM DIMM slot release levers outward ➊.
5. Pull the DIMM module up from the board ➋.
1
1
2

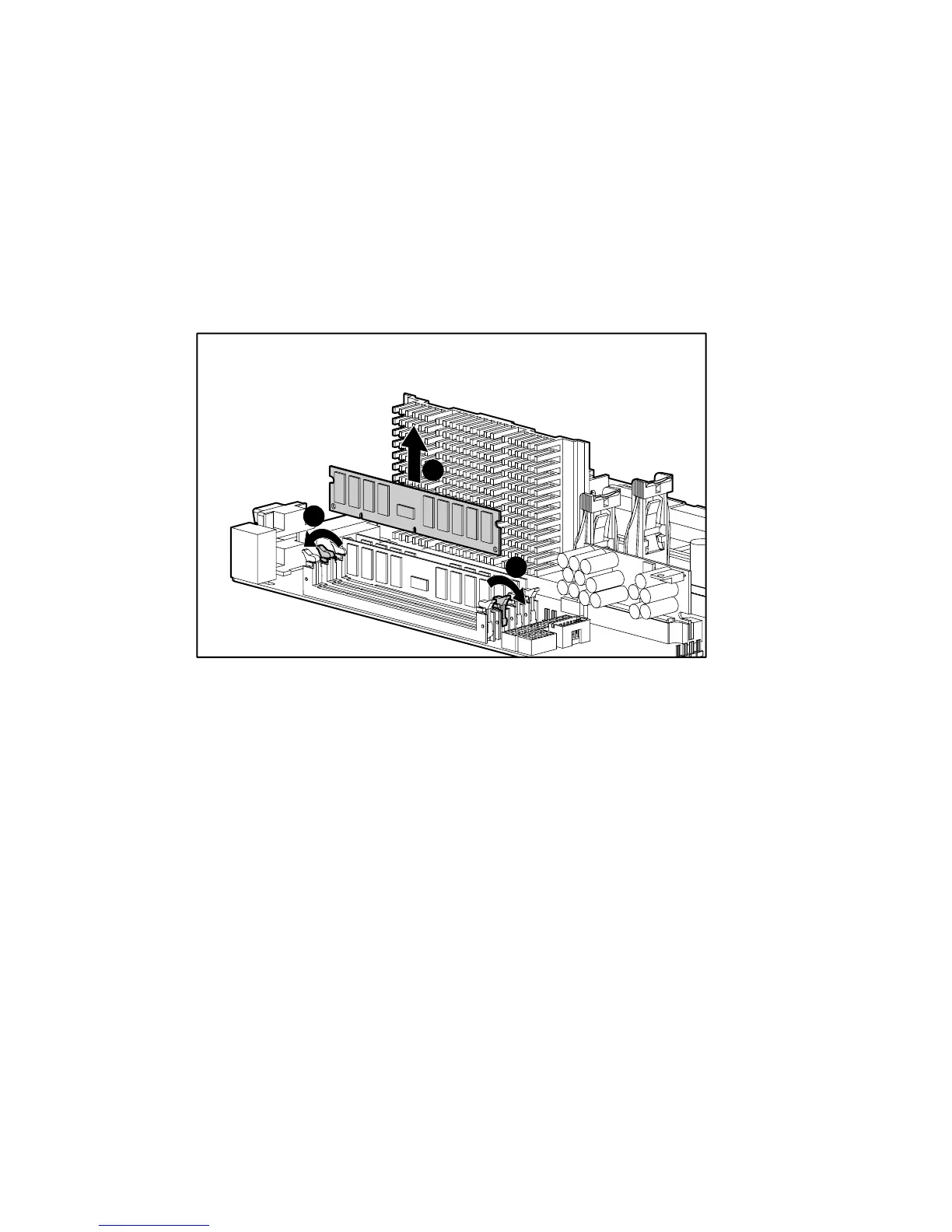

Figure 2-28. Removing a DIMM module from the system board
Reverse steps 1 through 5 to replace the DIMM. The DIMM can be installed in only one way.
Match the notch on the DIMM module with the tab on the memory socket. Push the DIMM
module down into the socket, making sure that the module is fully inserted and properly seated.
