NOTE!
Do not start an installation unless all conceivable considerations regarding detector
location have been taken into account.
For detailed connection and installation information, refer to the data sheet for each
unit.
•
Set the address on every loop unit. Also set the ID on loop units which are
equipped with an ID DIP switch.
•
After the loop unit address is set, place the adhesive label over the address DIP
switch to seal it. (Only applicable for detectors equipped with DIP switch.)
•
Make sure that smoke detectors maintain their protective dust covers until
polluting activities such as construction have been completed and the area have
been cleaned.
•
Plug unused cable glands.
6.4.2 Fluorescent light sources
Due to EMI issues, the recommended minimum distance between the detector and
any part of a fluorescent light source is 0.5 m.
This limitation concerns all types of detectors.

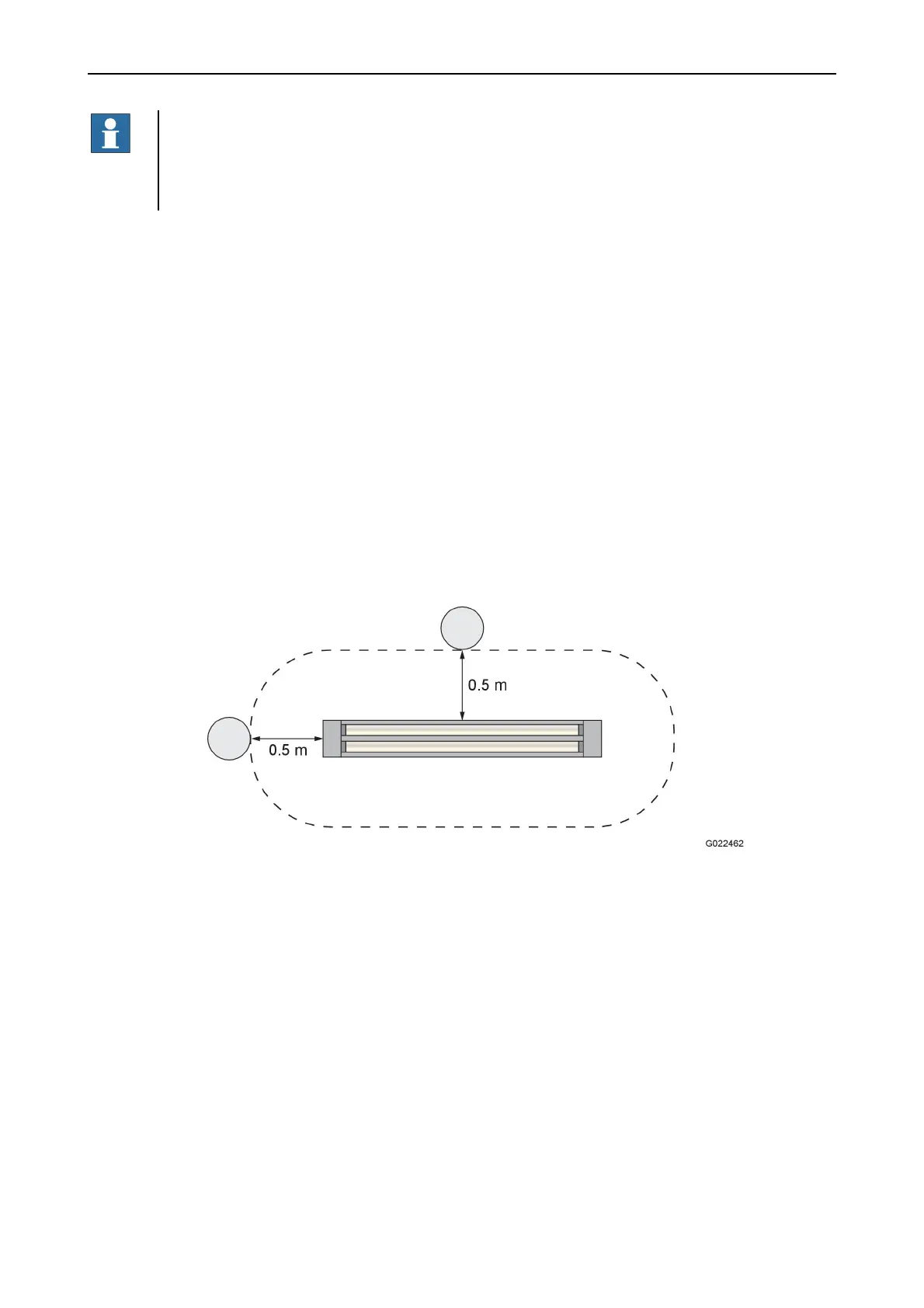

Figure 11. Minimum distance from fluorescent light source to detectors
6.4.3 Smoke detectors
•
If possible, install smoke detectors in the center of a supervised area or where
smoke most likely arises.
•
To avoid contamination and spurious alarms, keep the smoke detector away
from ventilation inlets, etc.
•
Do not install a smoke detector behind an air duct without filter or near
ventilation inlets, which could delay smoke from reaching the detector. A
recommended minimum distance for placement of a smoke detector from a
ventilation inlet/outlet is 0.5 m.
