6.7 Mechanical installation examples for DIN rail
components
6.7.1 DIN rail
6.7.1.1 General information
This section is intentionally left blank and may be replaced
by project specific product information.
6.7.1.2 Mounting of DIN rail
•
Mount the top hat DIN rail of type EN 50022 – 35 x 7.5 mm DIN rail horizontally.
Max length is 20 cm.
•
Use one fixing element in each end of the rail.

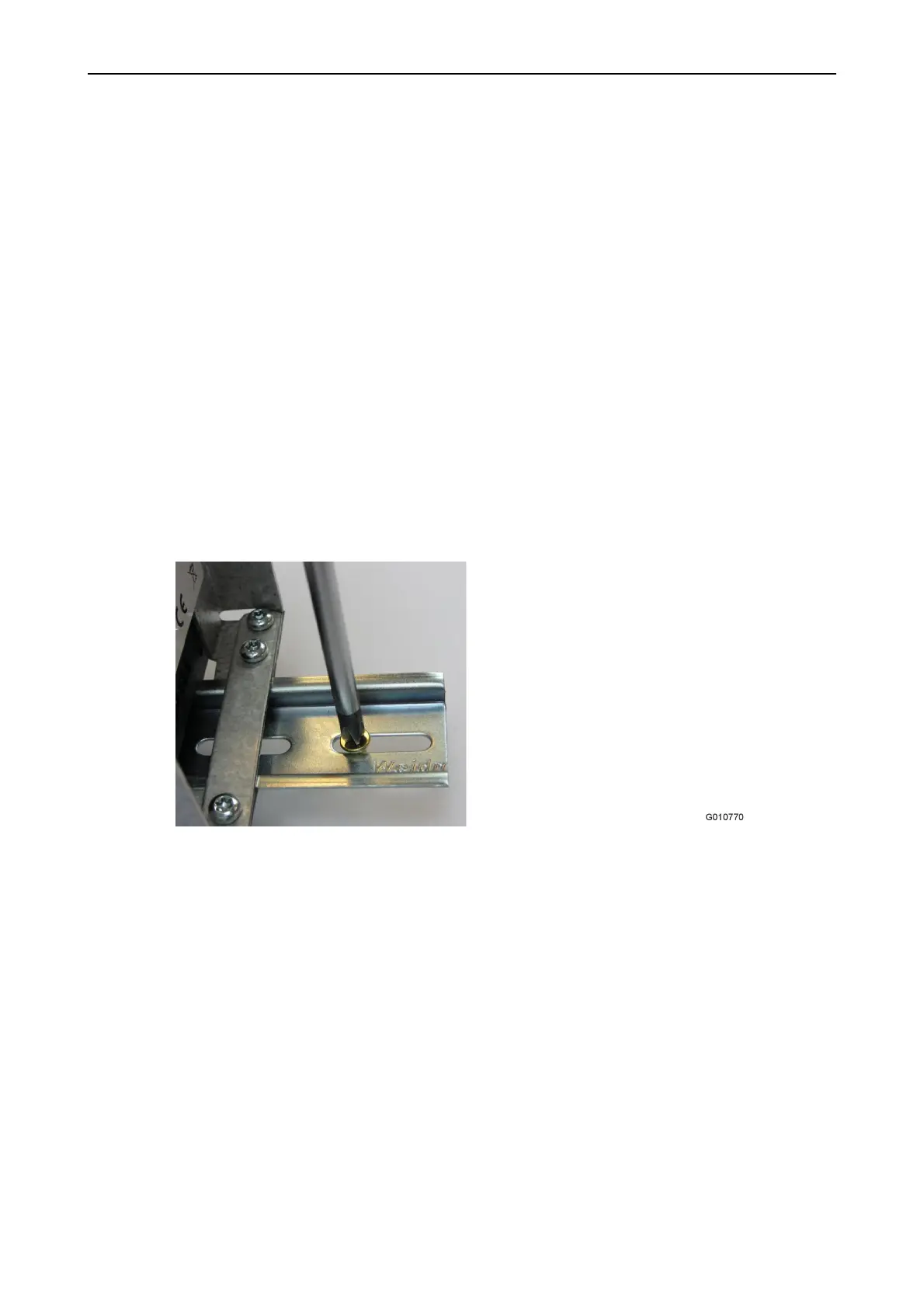

Figure 18. DIN rail attachment
Screw type: Type depending on surface. Maximum diameter of 5 mm / head min. 7 mm
Tooling: Depending on screw type used.
Torque: Depending on surface and screw type used.
6.7.1.3 Dismounting of DIN rail
Screw type: Type depending on surface. Maximum diameter of 5 mm / head min. 7 mm
Tooling: Depending on screw type used.
Torque: Depending on surface and screw type used.
