6.7.3.2 Mounting of DIN rail module support
1. Slide on one module support on each side of the module package.
2. Squeeze the whole package together and tighten the screws on the supports.

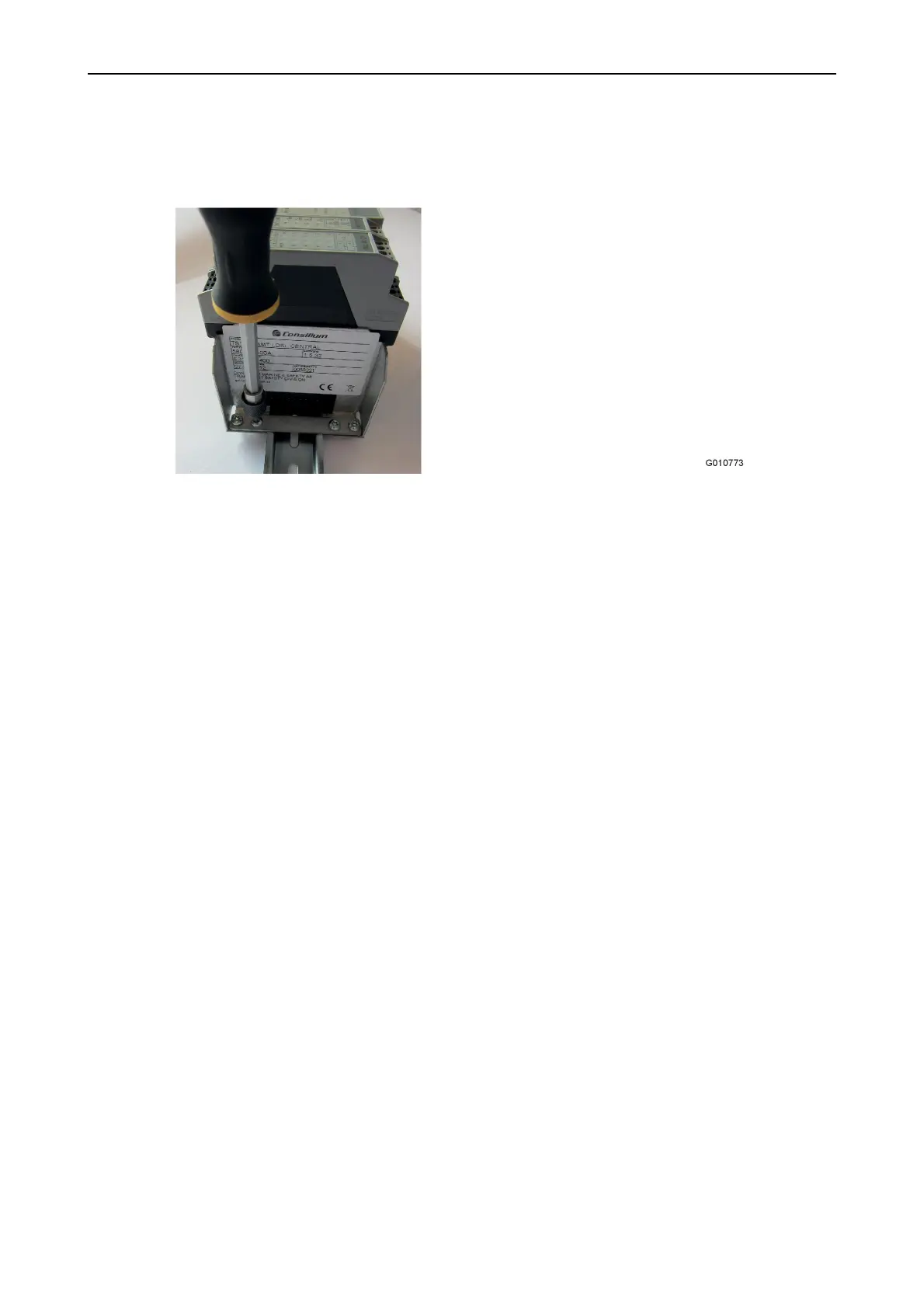

Figure 21. Module support screws
Screw type: M4x8.
Tooling: Screwdriver Torx TX20.
Torque: 2.6 Nm.
6.7.3.3 Dismounting of DIN rail module support
Screw type: N/A.
Tooling: Screwdriver Torx TX20.
Torque: +2.6 Nm.
6.7.4 SLZ-2 DIN carrier
6.7.4.1 General information
This section is intentionally left blank and may be replaced
by project specific product information.
