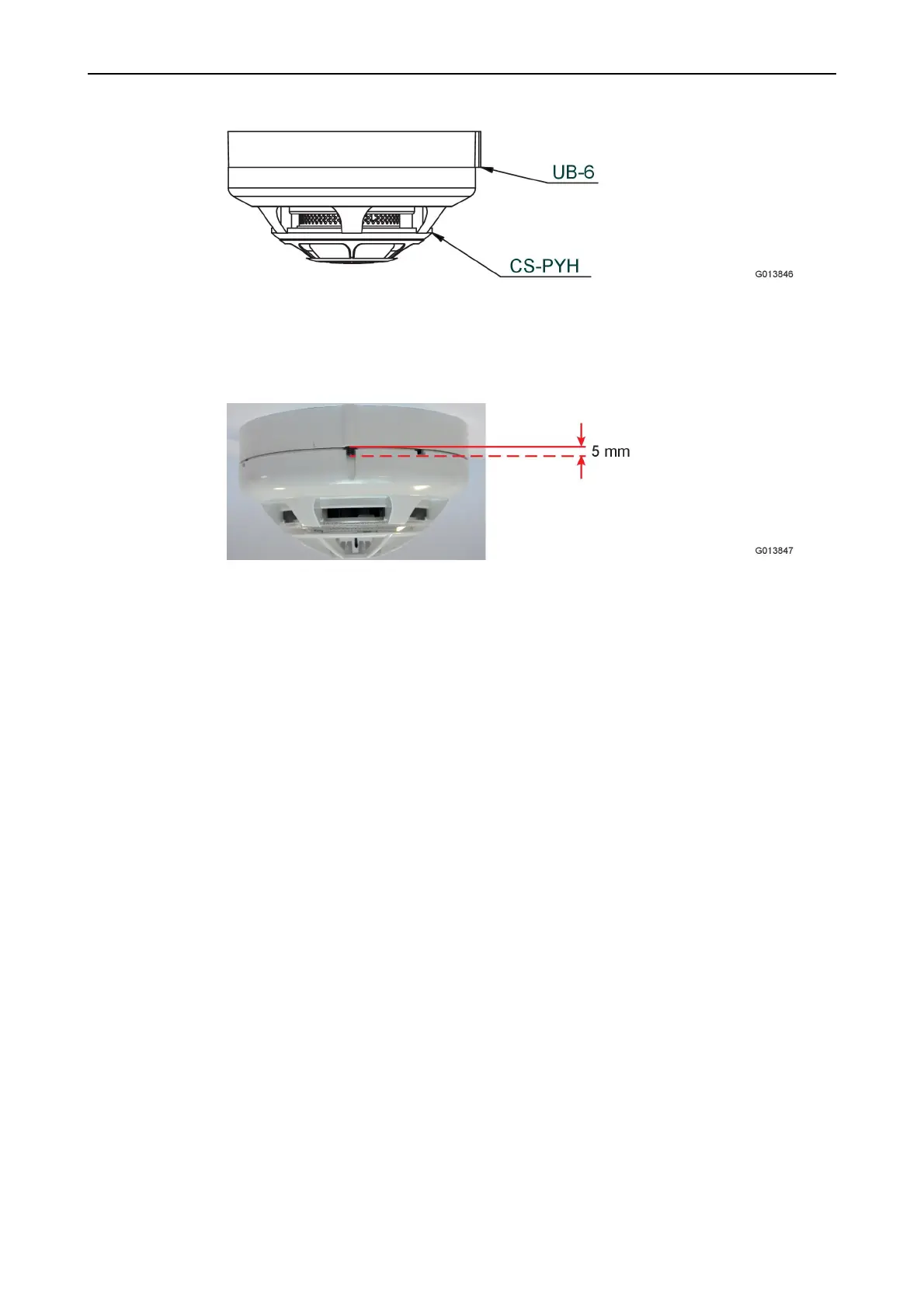

2. Turn the detector clockwise until the cut out of the detector and the UB-6 locking screw are
in line.
3. Turn the locking screw on the base plate about 5 mm anticlockwise, until the detector is
locked by the screw and can not be removed.
Screw type: N/A.
Tooling: 1.5 mm hexagon key.
Torque: N/A.
6.6.2.3 Dismounting of CS-PYH detector from base UB-6
1. Turn the locking screw on the base plate clockwise all the way to the bottom.
2. The detector is now unlocked and can be disconnected by turning it anticlockwise.
Screw type: N/A.
Tooling: 1.5 mm hexagon key.
Torque: N/A.
6.6.3 CS-ASP aspirating smoke detector
6.6.3.1 General information
This section is intentionally left blank and may be replaced
by project specific product information.
