6.6.3.2 Mounting of CS-ASP
1. The aspirating smoke detector CS-ASP is mounted with four screws.
2. Connect inlet and outlet sampling pipes. Use tubing types recommended in the data
sheet.
3. Connect power and loop-line according to the data sheet.
4. Connect the external earth connection on the enclosure to earth.

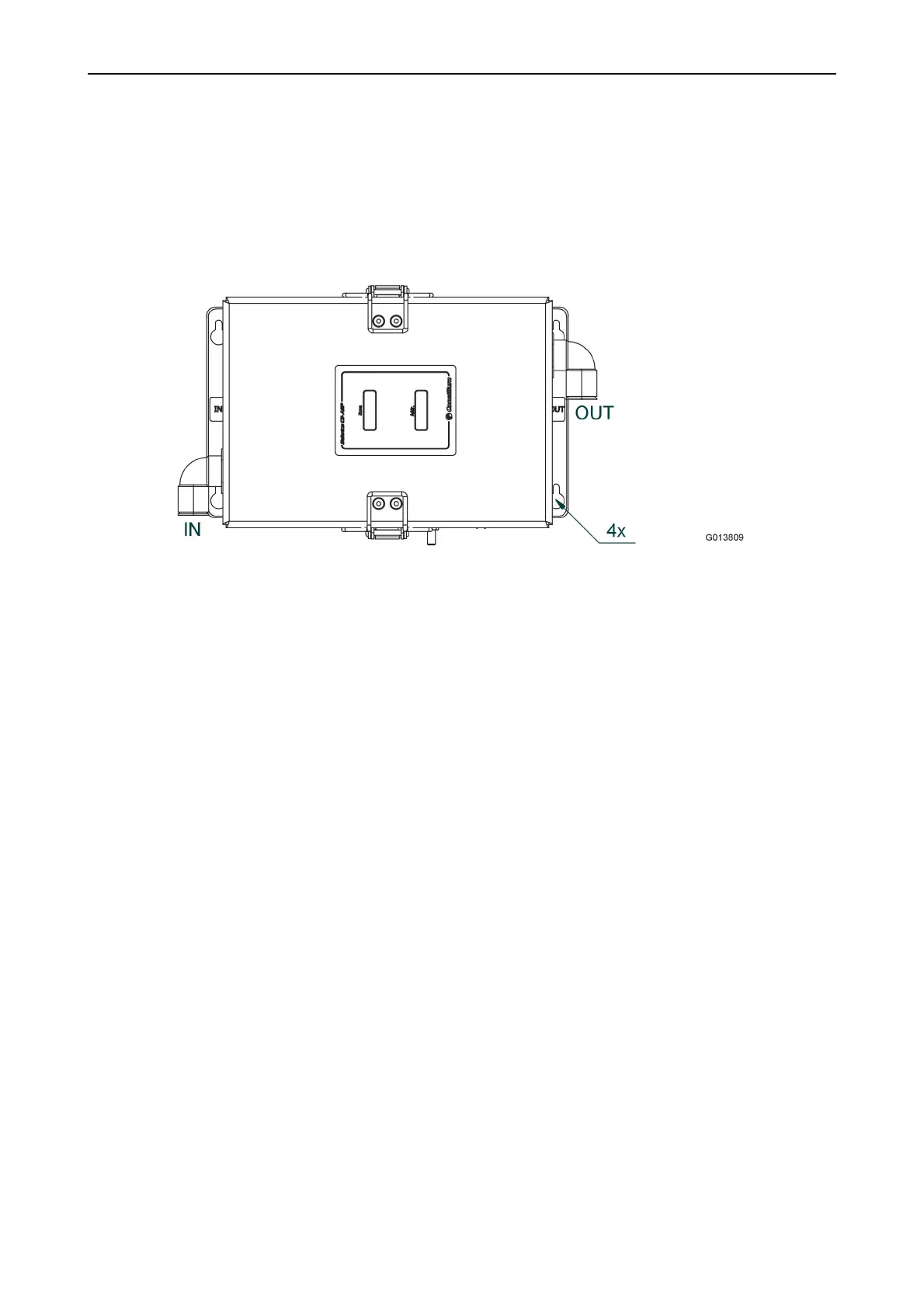

Figure 17. CS-ASP Aspirating Smoke Detector
Screw type: Depending on surface, maximum screw thread Ø4 mm.
Tooling: Depending on screw type used.
Torque: Depending on surface and screw type used.
6.6.3.3 Dismounting of CS-ASP
1. Disconnect the sampling pipes.
2. Disconnect the power and loop-line connectors.
3. Disconnect the external earth connection on the enclosure from earth.
4. Unscrew the four screws holding the aspirating smoke detector, and remove it.
Screw type: NA.
Tooling: Depending on screw type used.
Torque: Depending on surface and screw type used.
