Coretec BS Series - Rs-232 C(Cn4); Rs-232 C(Cn5); Rs-485(Cn6,7)

BS Controller for AC SERVO PRESS
Instruction Manual Ver1.08
BS-M3A-1B
- 22 -
6.5.
RS-232C(CN4)
It is a general-purpose serial communication port. Since DC24V power supply
is assigned, it is dangerous if it connects except an exclusive cable here. A
setup of a protocol and a baud rate is performed from CPS SP Configurator.
Controller side connector typr：HR12-10R-8SDL（HIROSE）
Pin
number
Signal
name
Contents
1
R
ｘｄ
2
T
ｘｄ
3
RTS
4
CTS
5
S-GND
Signal GND
6
7
P-
ＧＮＤ
Power GND
8
２４Ｖ
Power

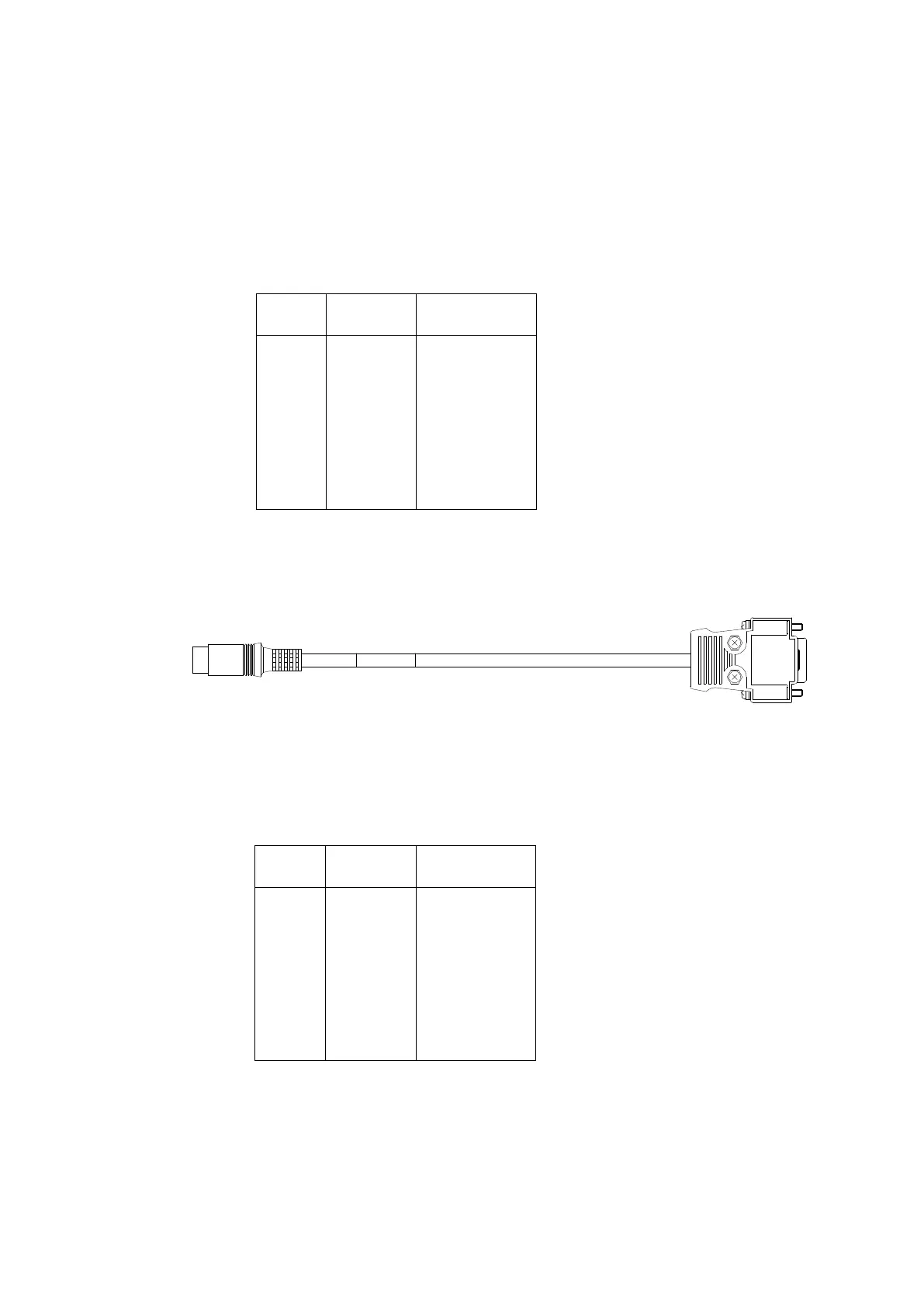

Cable type：CCK232-**M(General)
：CCK232M-**M(Only for Mitsubishi Electric PLCs)
Usage：Connection with RS-232C unit of PLC etc.
6.6.
RS-232C(CN5)
It is a general-purpose serial communication port. Since DC24V power supply
is assigned, it is dangerous if it connects except an exclusive cable here. A
setup of a protocol and a baud rate is performed from CPS SP Configurator.
Controller side connector type：HR12-10R-8SDL（HIROSE）
Pin
number
Signal
name
Contents
1
R
ｘｄ
2
T
ｘｄ
3
4
5
S-GND
Signal GND
6
7
P-
ＧＮＤ
Power GND
8
２４Ｖ
Power
6.7.
RS-485(CN6,7)
It connects with CN3 of MR-J3A. Although two connectors are prepared for
cascade connection, it cannot be used by 1:1. Please connect either of CNs 6
MI-232C**M
