BS Controller for AC SERVO PRESS
Instruction Manual Ver1.08
BS-M3A-1B
- 28 -
6.9.4.

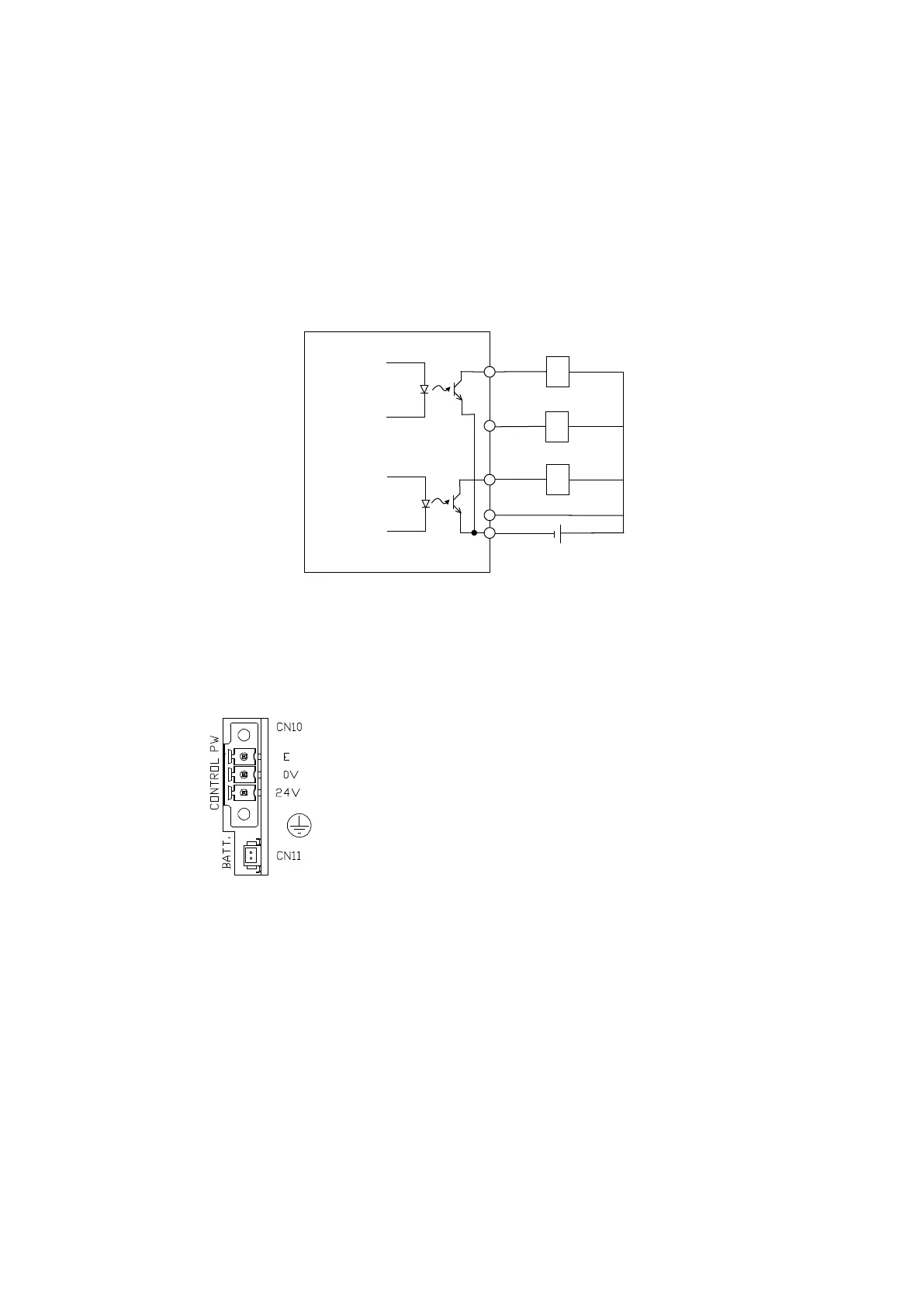

Wiring by the side of output
Open collector output (30mA / 1 circuit)
6.10.
Control power supply (CN10)
Control power supply 24V are connected.
6.11.
Backup battery（CN11）
The exclusive battery for SRAM backup is connected. Please connect a backup
battery in the state of control power supply ON. Although the life of a battery
is about five years, it changes a lot according to a use state and environment. If
battery voltage is less than 2.1V, BAT.ALARM (parallel output 3) turns on.
Even in such a case, inside information is held unless a control power supply is
turned off.
Please attach for a red lead to upside.
6.12.
Anybus
If the metal cover of the right side is removed toward CPS controller, the
BS
DC24V
L
L
L
OUT
OUT
OUT
17,18
35,36
