Coretec BS Series - 7 Timing Chart; Power Supply Injection; Alarm Reset; Origin

BS Controller for AC SERVO PRESS
Instruction Manual Ver1.08
BS-M3A-1B
- 31 -

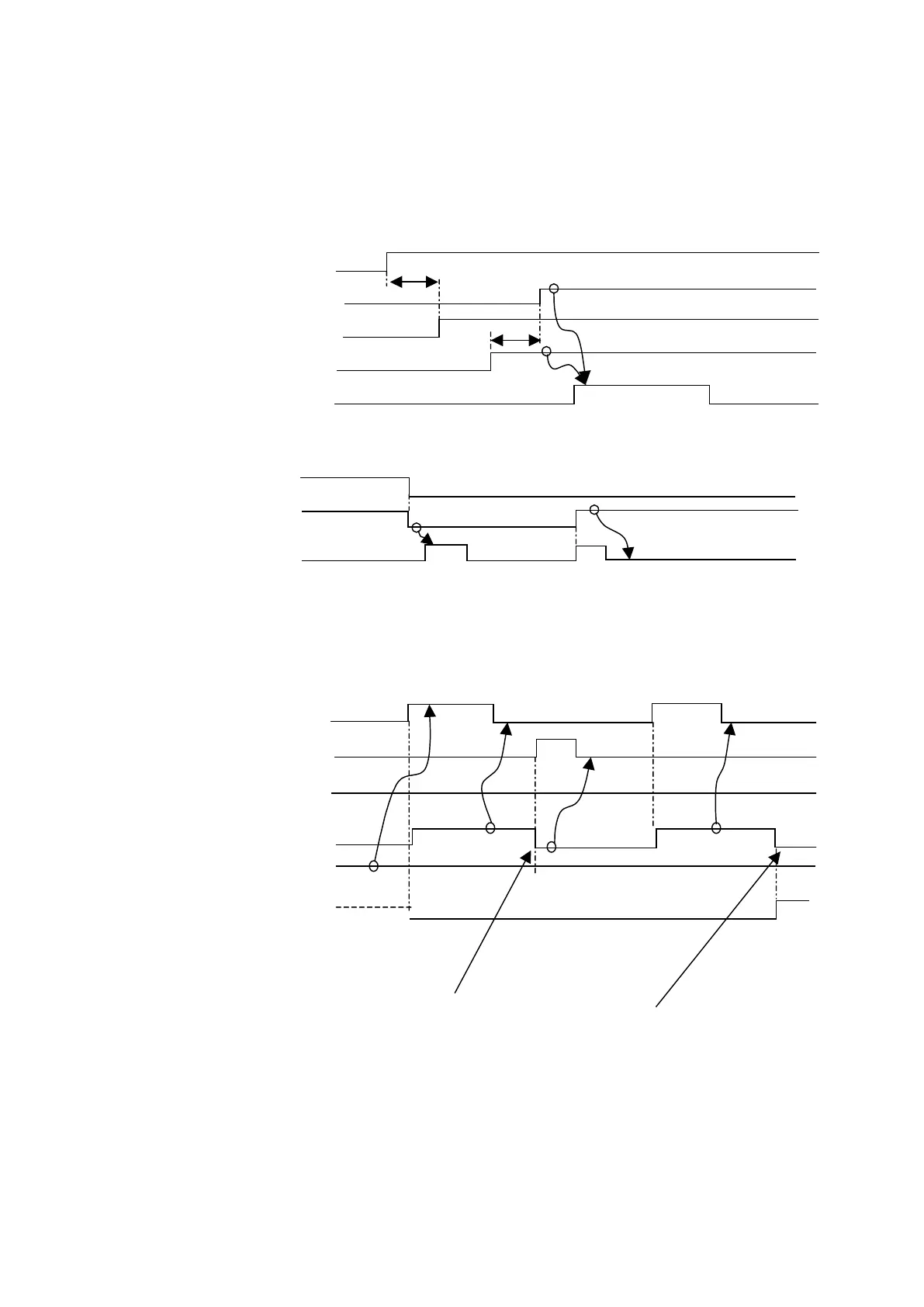

7.
Timing Chart
The timing chart of fundamental operation is shown.
7.1.
Power supply injection
7.2.
Alarm reset
Alarm may not be canceled unless it outputs RESET twice.
7.3.
Origin
O READY
O ALARM
I RESET
MR-J3A CTRL PW
0.5s
MR-J3A AC PW
BS CTRL PW 0.2s
O
READY
I
SERVO_ON
I ORIGIN
I STOP
I JOG_ENA
O IN_ORIGIN
/BAT.ALARM
O SERVO_ON
O ORIGIN_END
Origin is interrupted by STOP.
Orign normal end
