Coretec BS Series - Ethernet(Cn8); Parallel I;O (CN9)

BS Controller for AC SERVO PRESS
Instruction Manual Ver1.08
BS-M3A-1B
- 23 -
and 7.
The potential difference of GND for signals is permissible to 7V. When
communication is not stabilized, please turn on GND for signals of the pin
numbers 5 and 6 . If the metal cover of a right-hand side is removed toward BS
controller and 3 and 4 of the dip switch SW4 on the substrate are turned on
(above), GND for signals will become effective.

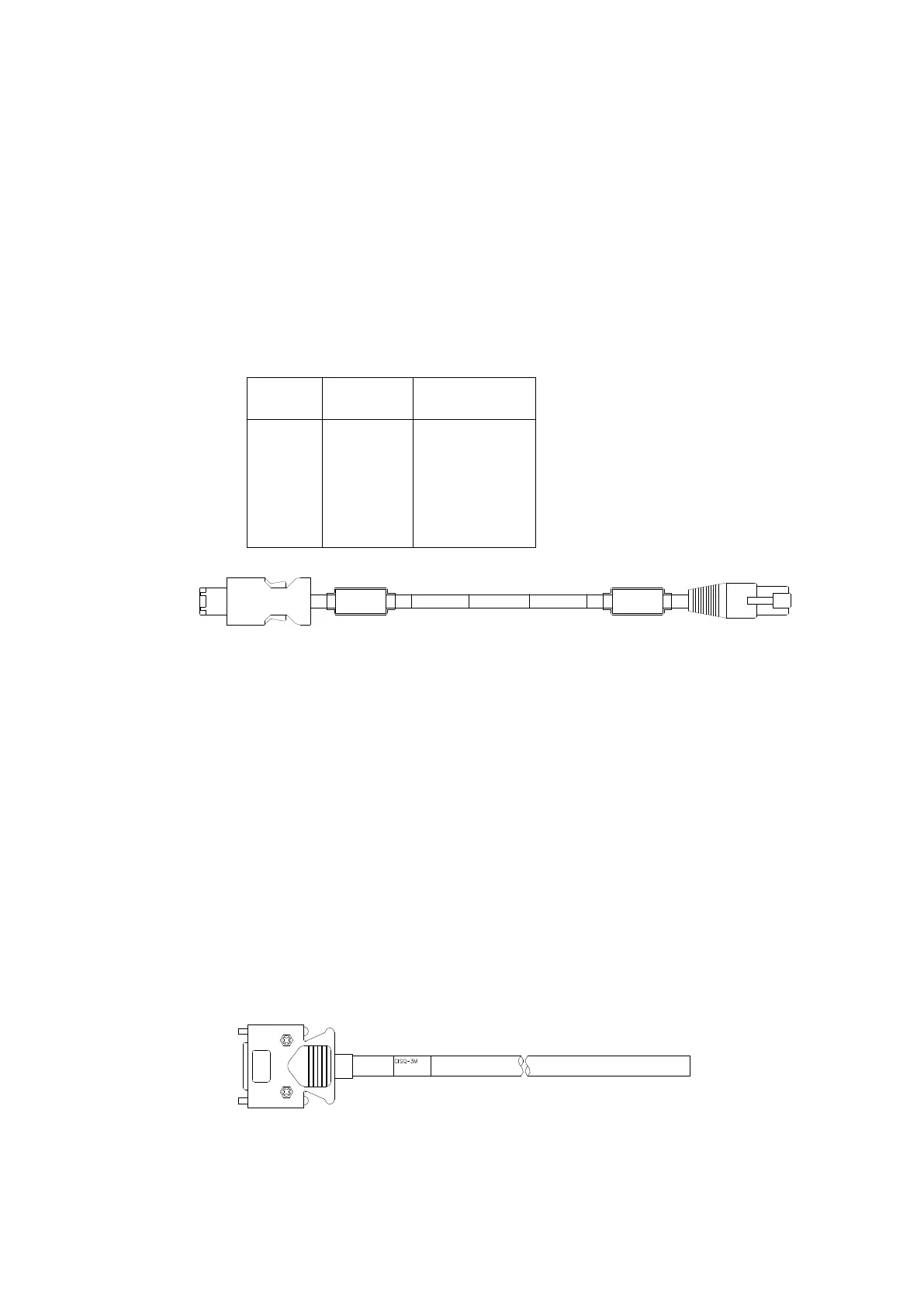

Cable type：
Controller side connector type：53462(Moｌex)
Pin
number
Signal
name
Contents
1
RD
＋
2
RD-
3
TD+
4
TD-
5
S-GND
Signal GND
6
S-GND
Signal GND
Cable type：CBS422-**M
6.8.
Ethernet(CN8)
It connects with a personal computer and exclusive application BS
Configurator performs a setup of BS controller etc. The protocol is UDP/IP.
They are 10 / 100M automatic change. It is necessary to make LAN setup of a
personal computer into a fixed IP address.
The example of a setting IP address 192:168:1:1
Subnet mask 255:255:0:0
Please use a cross cable, when you connect a personal computer and CPS
controller directly. Please use a straight cable, when you connect via a HUB.
6.9.
Parallel I/O (CN9)
It connects with a sequencer etc. and BS is controlled.
Cable type：CCKSQ-**M
（Refer to the wiring diagram for CPS<=>PLC connection.）
One side is cut.
Connector：54306-3611(MOLEX)
CBS422-**M
CBS422-**M
