BS Controller for AC SERVO PRESS

Instruction Manual Ver1.08

BS-M3A-1B

- 30 -

6.14.

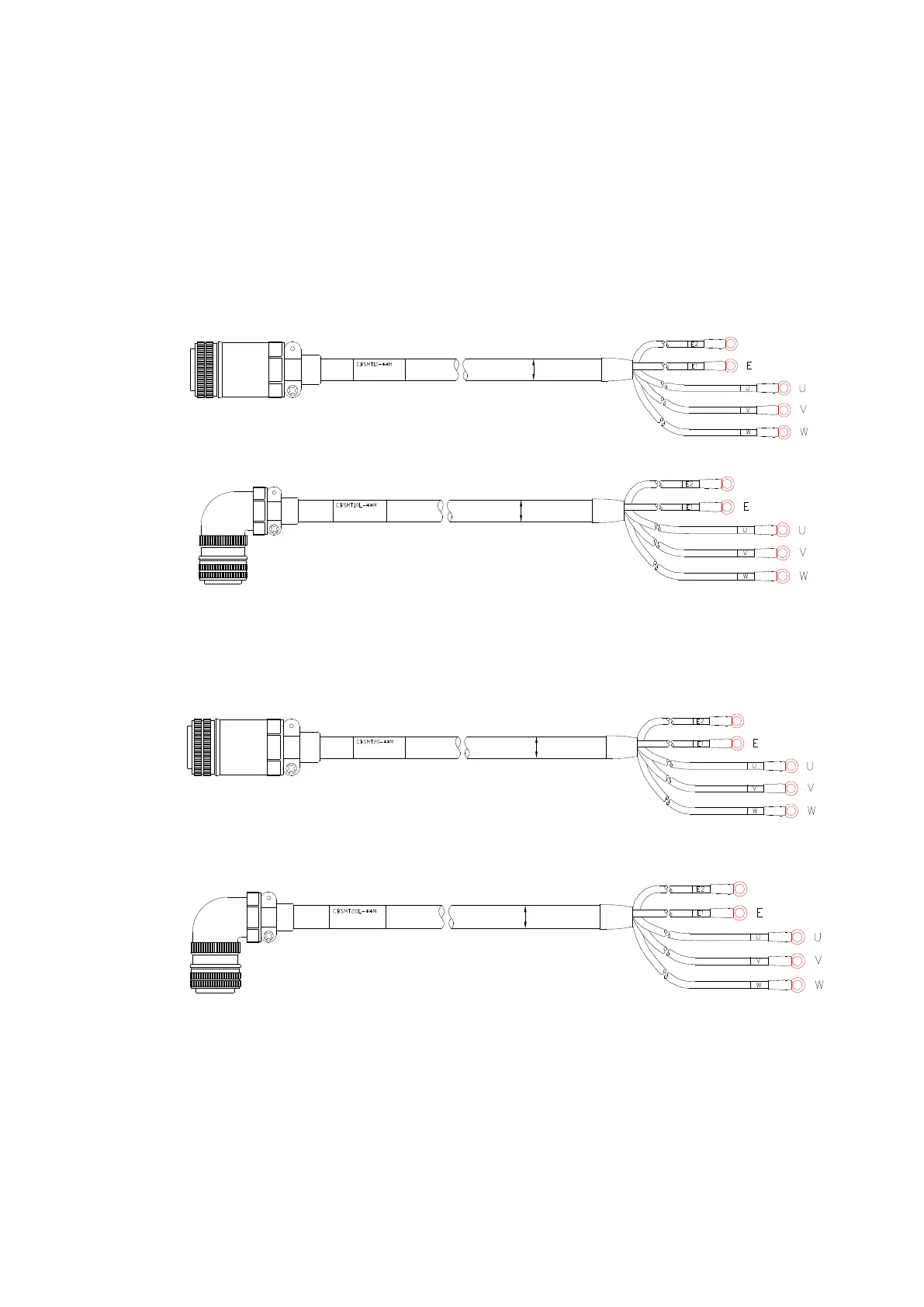

Motor cable

Please fully perform measure against a noise about the motor cable of MR-J3A.

Noise filters, such as a ferrite core, need to be attached.

The cables for BS100 series

Cable type：CBSMT10-**M

Cable type：CBSMT10R-**M (Cable for movable)

Cable type：CBSMT10L-**M

The cables for BS200 series

Cable type：CBSMT20-**M

Cable type：CBSMT20R-**M (Cable for movable)

Cable type：CBSMT20L-**M

6.15.

Encoder Cable

Cable type：MR-J3ENSCBL**M-L

Cable type：MR-J3ENSCBL**M-H (Cable for movable)

Sield
