Connection with Personal Computer
In order to set up BS controller, exclusive application BS Configurator is
started, and it is necessary to connect with a personal computer. The procedure
is explained.
9.1.
Spindle number setup
BS controller is connectable with the same communication system to 31 sets.
In this case, in order to discriminate each controller, it is necessary to set up a
spindle number.
The spindle number setting method

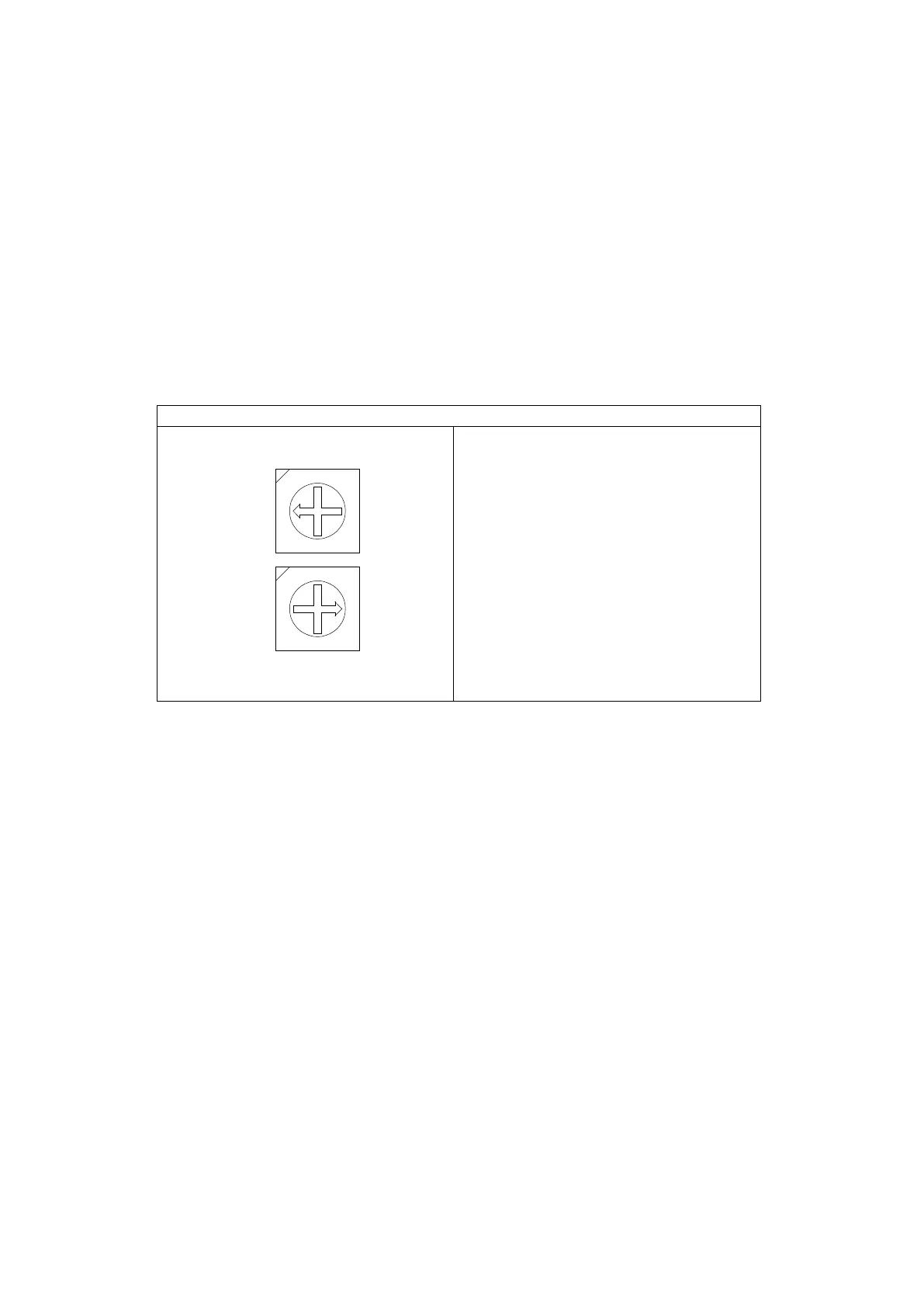

BS front
In the left figure, the spindle number
is set as 5.
ID x 10 is 10 digits.
ID x 1 is 1 digit.
Please set up a sp
indle number in one
communication system not to overlap.
Duplication of a spindle number
causes a communication error.
Please set up the number between
01-
31.In the other setup, it becomes
an error.
When a spindle number is changed, a spindle new number becomes effective
after a re-injection of a power supply.
9.2.
IP address setup of BS controller
The IP address of BS controller is set up like this 192:168: (master number
+14) : (spindle number).
A master number is set up by the SW1 bits 0-3 on CPU board. A master
number adds 1 to the binary value of 4 bits of SW1 low ranks. SW1 is visible if
the cover of an expansion bus is removed. A front panel side is a low rank bit.
The master number is set as 1 at the time of shipment. The controller of a
different master number is not connectable with one communication system.
The default gateway is 192.168.1.1.
9.3.
IP address setup of a personal computer
In order to communicate with BS controller, it is necessary to set a fixed IP
address for a personal computer in the communication method of Ethernet.
Since the setting methods of a fixed IP address differ for every OS, refer to
