BS Controller for AC SERVO PRESS
Instruction Manual Ver1.08
BS-M3A-1B
- 29 -
connector for Anybus will appear. If it equips with Anybus card which HMS
offers, control equivalent to PI/O will be attained by networks, such as
CC-Link.
Although a tool with a brake can be chosen as an option, brake control is not
performed by BS controller. Please control a brake by the user system side. A
brake will be released if current is passed between a No. 1 pin and a No. 2 pin.
The brake is completely released in 0.2 seconds after turning on the current.
Please do not move the ram until the brake is released.
An option brake is an object for position maintenance to the last, and is not
applicable to dynamic braking.
If a jig weight added to the ram exceeds several percent of the tool maximum
thrust, the ram may fall naturally. In such a case, please use the brake for
position keeping.
MR-J3A builds in the dynamic brake. A sudden stop is possible if an emergency
stop (CN34) is opened.

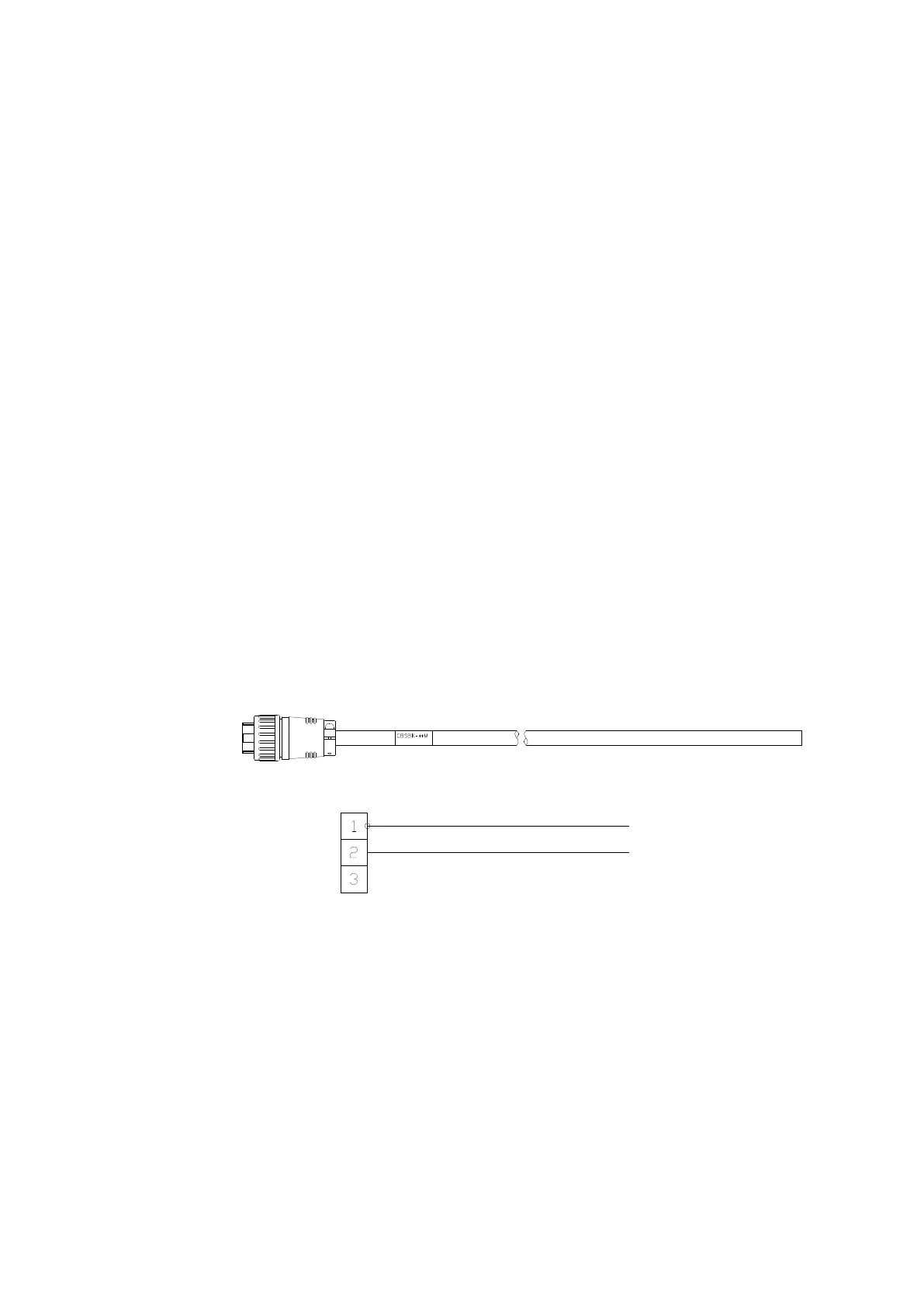

Cable type：CBSBK-**M
