Coretec BS Series - Setup of Receive Filter; Collection Setup; Check of Status

BS Controller for AC SERVO PRESS
Instruction Manual Ver1.08
BS-M3A-1B
- 40 -
9.5.2.
Setup of receive filter
If a setup-data collection-receiving filter is chosen with a pull down menu, a

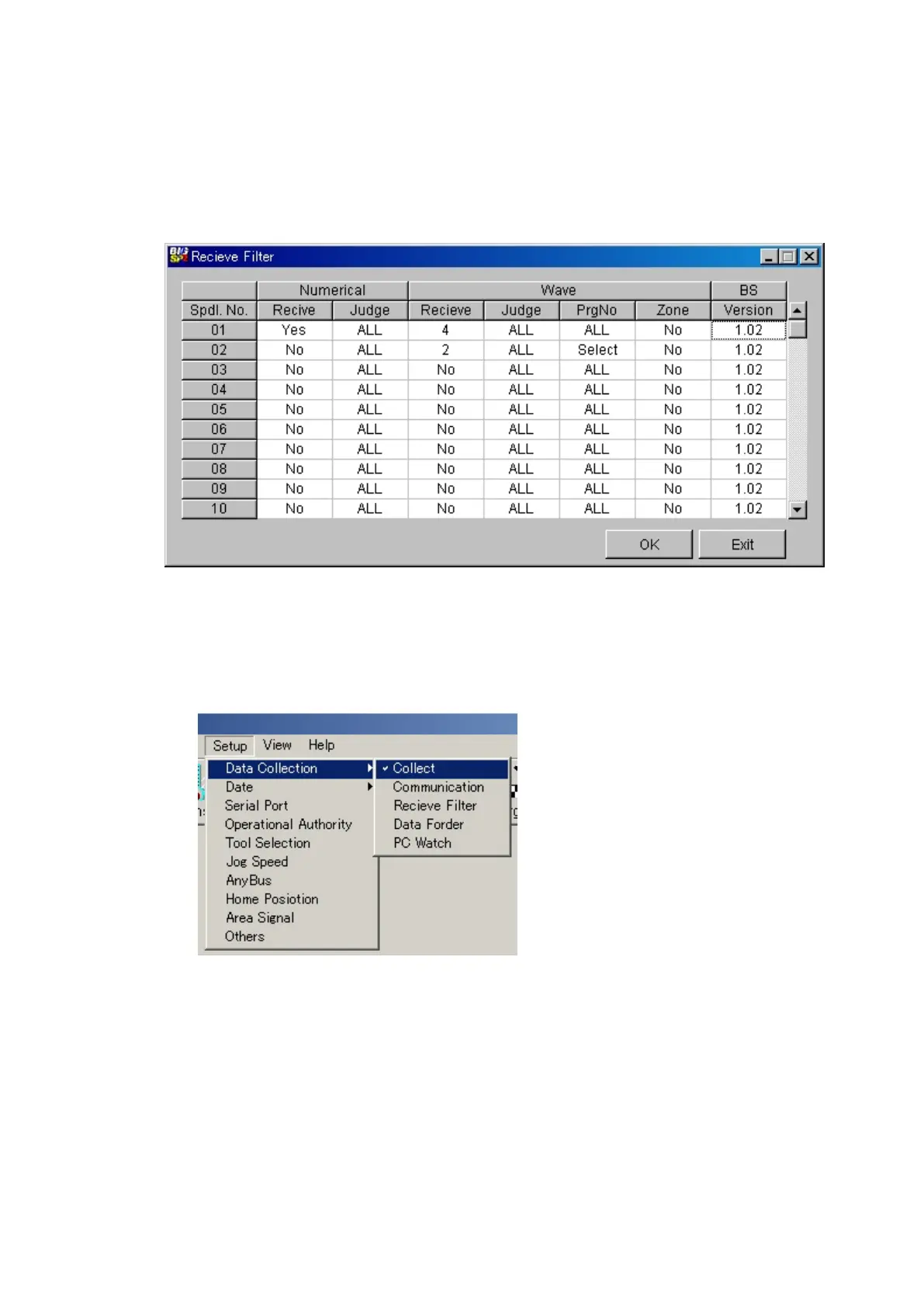

receiving filter screen will be displayed. Please set up, as shown in Fig. 9-3.
Fig.9-3 Receive filter screen
9.5.3.
Collection setup
At the pull down menu, check is put into setup-data collection-collection. (refer
to Fig. 9-4.)
Fig.9-4 Collection setup
9.5.4.
Check of status
If the status bar of the screen lower part is displayed as shown in Fig. 9-5,
communication is performed normally. Although various alarms are displayed
when no setup for BS controller is performed, there is no problem. As shown in
