46 • 4-Series™ Control Systems Product Manual — Doc. 8559B
Regulatory Model: M201903001;
UL® Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device
To search for product certificates, refer to support.crestron.com/app/certificates.

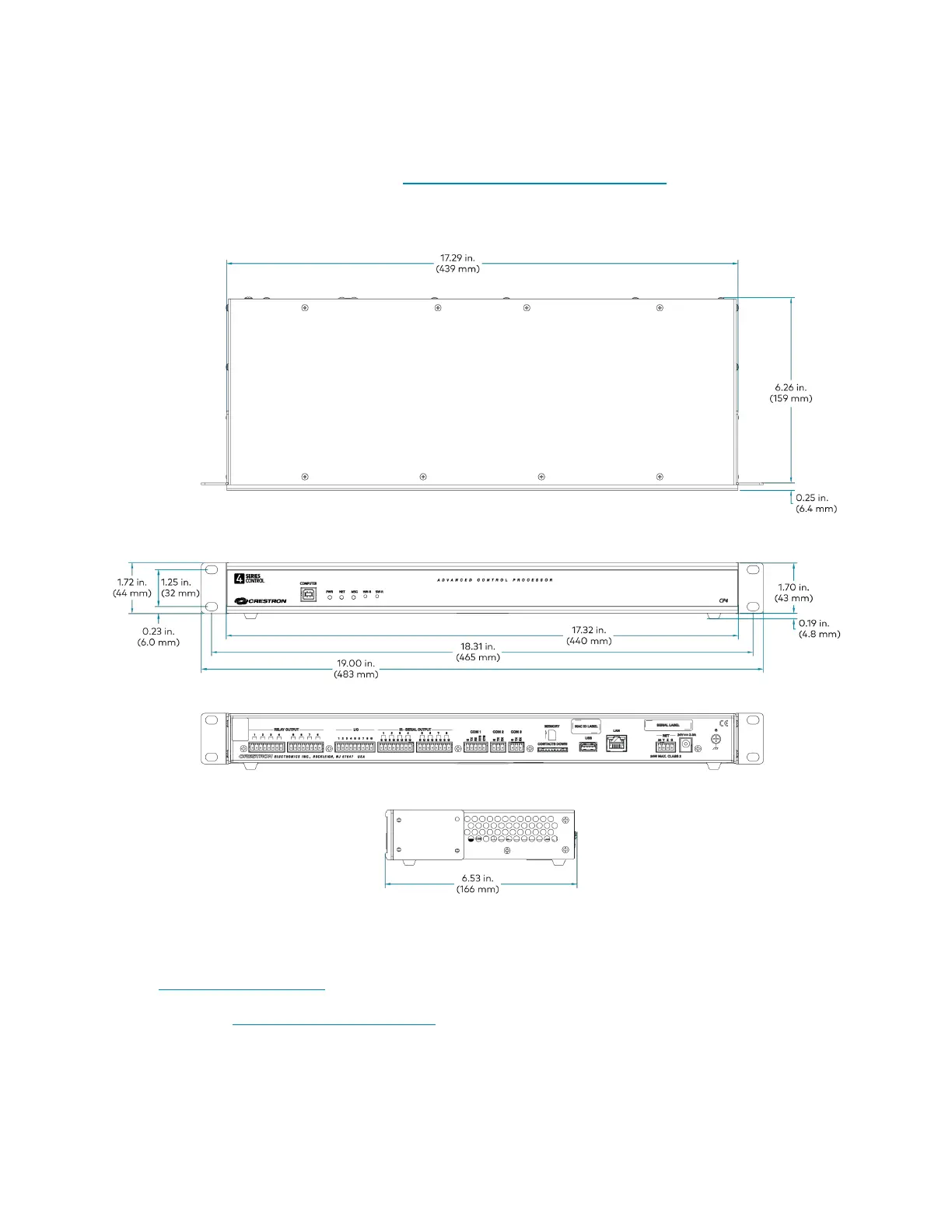

Dimension Drawings
Notes:
1. A BACnet and IP license is required. A free license is available to support up to 50 BACnet objects on a single
4-Series control system. Support for more than 50 BACnet objects requires the purchase of one
SW-3SERIES-BACNET-50+ license. The CP4 supports a maximum of 1000 BACnet objects when dedicated for
BACnet use only. Actual capabilities are contingent upon the overall program size and complexity. To obtain the
license, visit www.crestron.com/bacnetlicense.
2. This feature is only available when using the TSR-310. Other Crestron touch screens, handheld remotes, and
keypads are not supported. For these interfaces, traditional IR or CEC control must be used to control supported
Apple devices.
