Product Manual — Doc. 8559B 4-Series™ Control Systems • 75

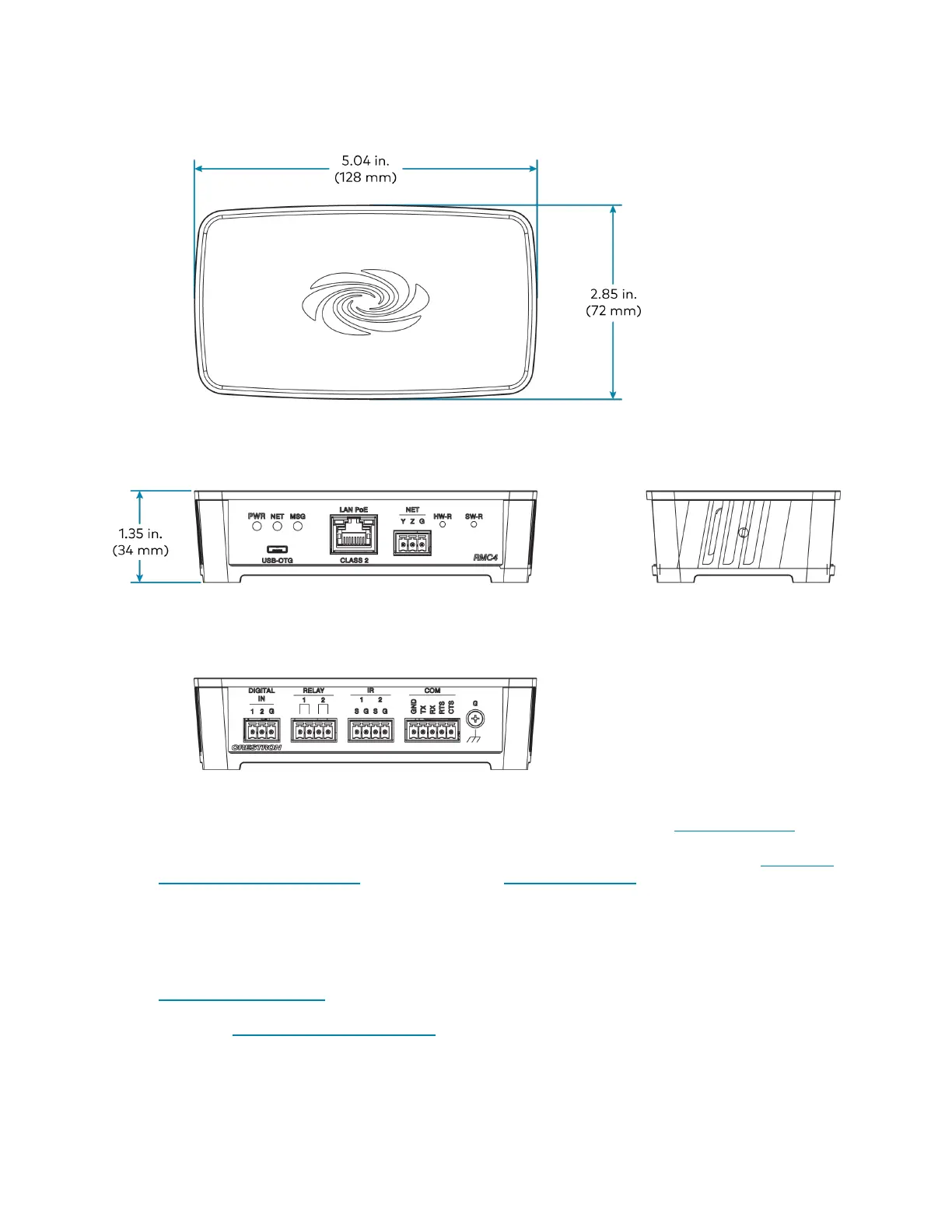

Dimension Drawings
Notes:
1. Modular Programming Architecture (MPA) on the RMC4 requires the purchase of one SW-RMC3-10PROG
license. The license enables support for running up to 10 simultaneous programs on a single RMC4. The license is
not required if only one program is run on the RMC4. To obtain a license for the RMC4, complete the Request for
SW-RMC3-10PROG License form. For questions, contact license@crestron.com.
2. The NET (Cresnet® network) port on the RMC4 is a 3-pin connector which provides connectivity for Cresnet data
only, not power. The Cresnet power conductor does not terminate to the RMC4. An external Cresnet power
supply is required to provide power for Cresnet devices.
3. A BACnet and IP license is required. A free license is available to support up to 50 BACnet objects on a single
4-Series control system. Support for more than 50 BACnet objects requires the purchase of one
SW-3SERIES-BACNET-50+ license. The RMC4 supports a maximum of 500 BACnet objects when dedicated for
BACnet use only. Actual capabilities are contingent upon the overall program size and complexity. To obtain the
license, visit www.crestron.com/bacnetlicense.
4. This feature is only available when using the TSR-310. Other Crestron touch screens, handheld remotes, and
keypads are not supported. For these interfaces, traditional IR or CEC control must be used to control supported
Apple devices.
