2. Secure the control system to the rack rails using four rack mounting screws (not provided).
Surface Mounting
Use four mounting screws(not provided)to mount the control system to a flat surface such as a
wall or under a table. The control system can also be mounted behind a flat panel display or
similar equipment.
Connect the Control System

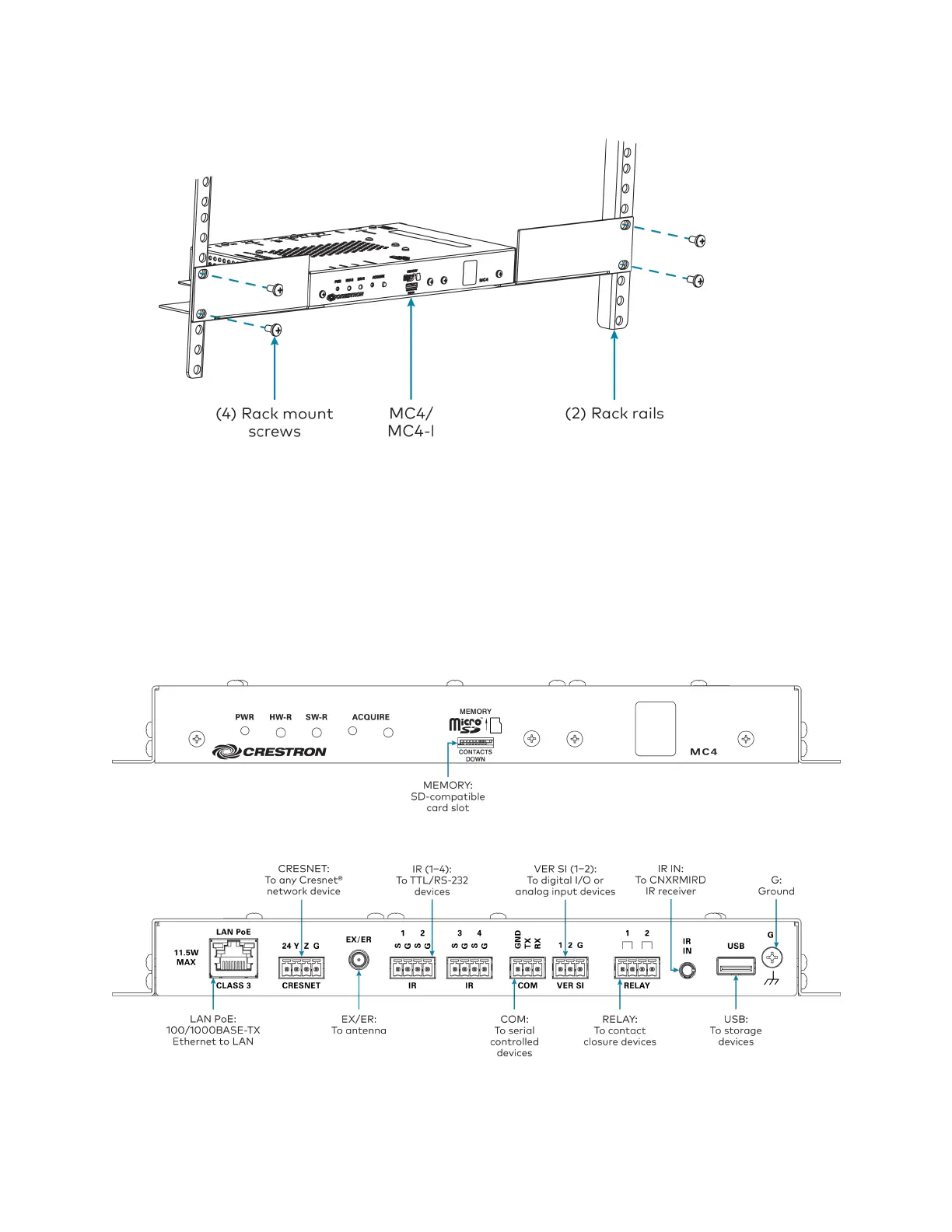

Make all necessary connections to the control system as shown in the following diagrams.
Front Panel Connections
Rear Panel Connections
