Crestron Electronics CP4N - MC4-I Installation

86 • 4-Series™ Control Systems Product Manual — Doc. 8559B
4. Tilt the bottom of the control system away from the bottom of the DIN rail, then remove
the control system.
Connect the Control System
Make all necessary connections to the control system as shown in the following diagrams.

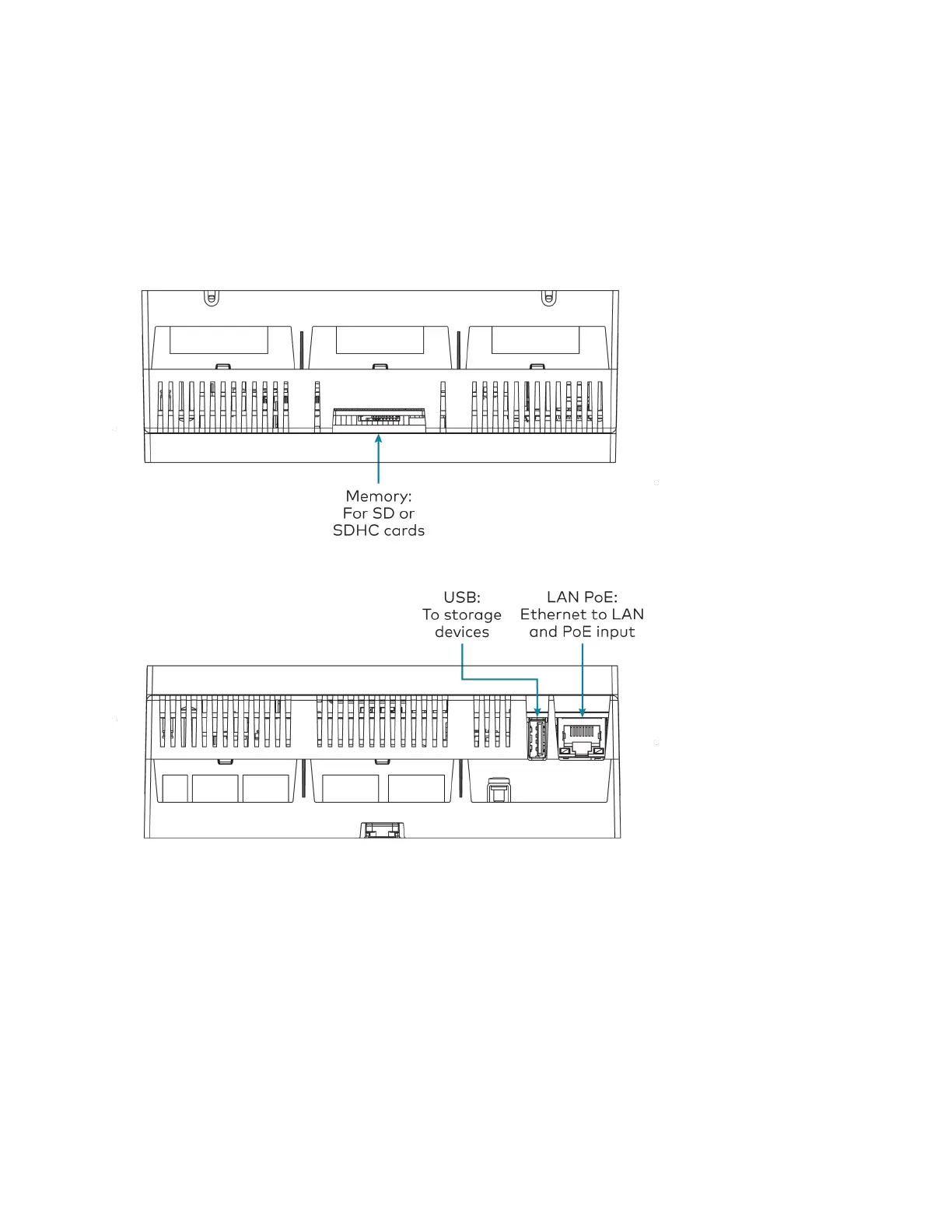

Top Panel Connections
Bottom Panel Connections
