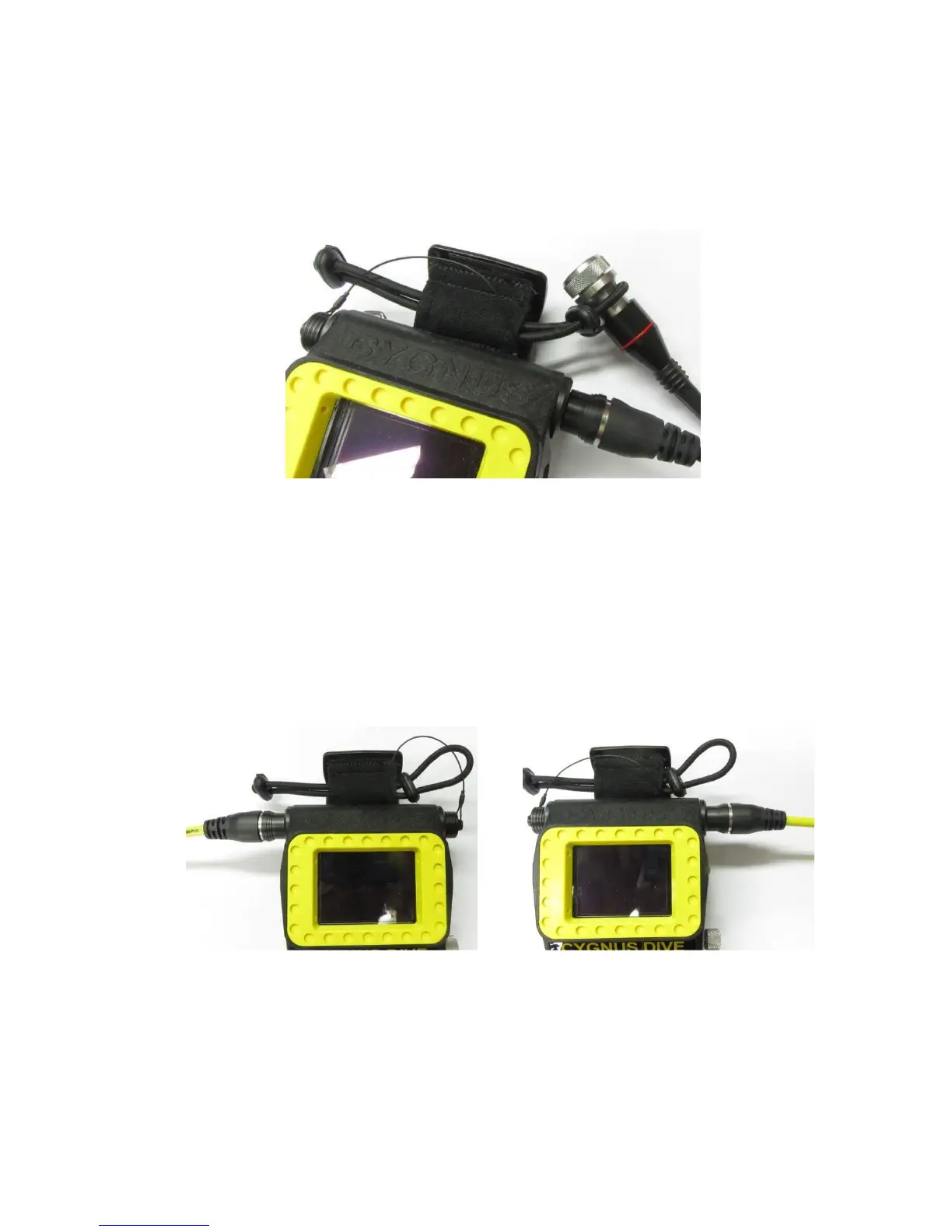

The Ultrasonic Probe is attached with a coiled cable allowing the
diver to reach around structures when carrying out the survey.
When not in use the probe can be easily secured to the strap by a
loop and toggle using one hand.
Probe Securing Loop
The DIVE gauge can be worn on the right or left arm of the diver
as required. The probe can be connected into either of the two
probe sockets on the gauge body, they are both identically wired.
The other free connector can be used for the top-side RS-485 data
link, when not used a blanking plug is supplied to protect the
connector.
Right and Left Handed Probe Connections
A security lanyard is supplied that can be attached to the D ring on
the DIVE gauge then secured to a ring on the diver’s harness.
