Page 73 of 118
15. HelmetView Remote Display

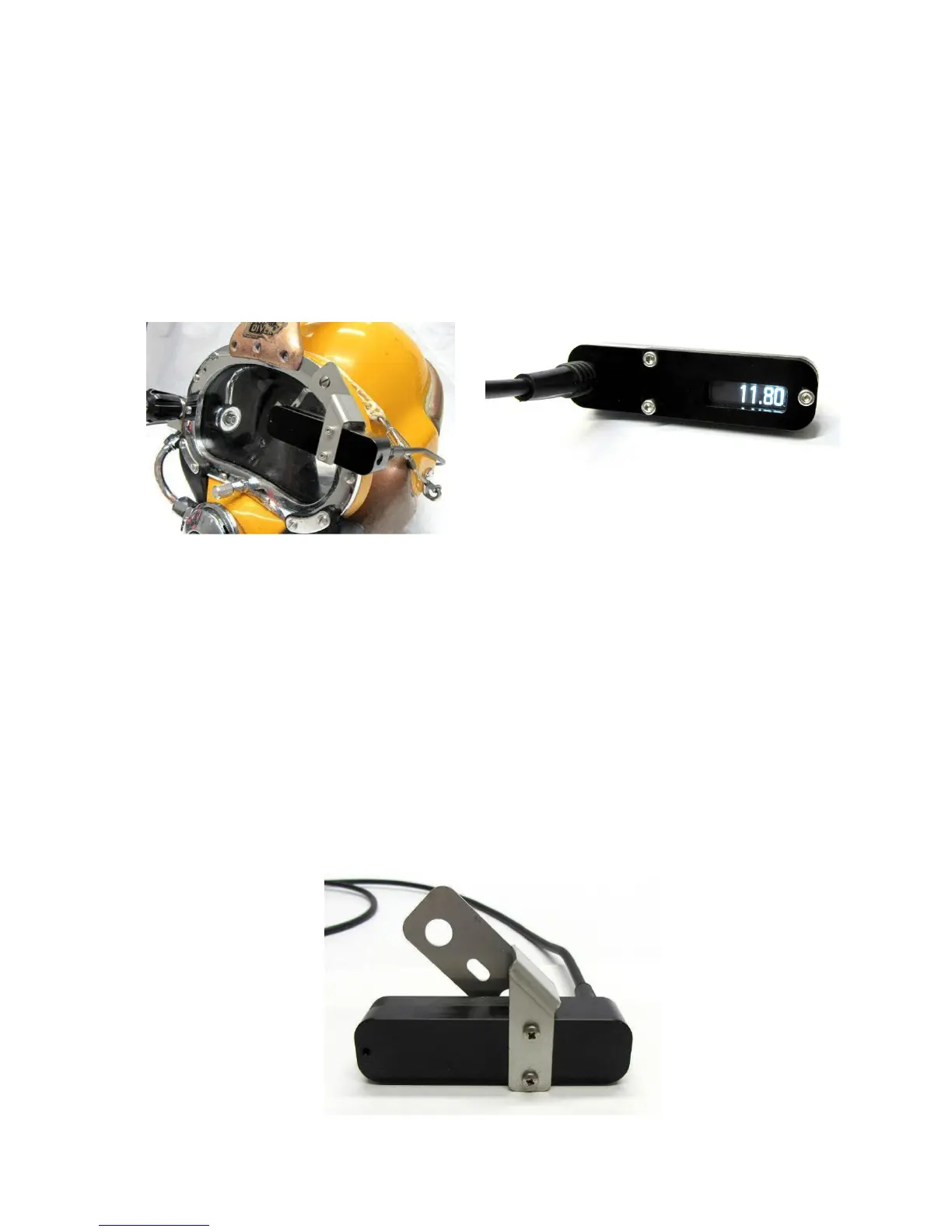

HelmetView is an optional remote display that can be mounted on
a Kirby Morgan
®
dive helmet using an accessory screw. The
display will show the measured thickness value or the echo bars
just like the DIVE’s display. HelmetView enables the diver to view
thickness measurements in limited visibility or black water.
HelmetView is supplied as a remote display unit with 1.5 meters of
cable with connector and a mounting bracket to suit the Kirby
Morgan
®
helmets.
HelmetView is simply plugged into the spare connector on the
opposite side to the probe cable. When the DIVE gauge is turned
on the remote display will reflect the gauge’s display.
Fitting the Mounting Bracket
The mounting bracket is screwed to the rear of the HelmetView
display using two M3 x 6mm screws.
