Measurement Units (UNITS)
The gauge can display the thickness
measurement in mm or inches.
To change the units select UNITS from the
Main Menu.
Changing the measurement units will not
affect the calibration.

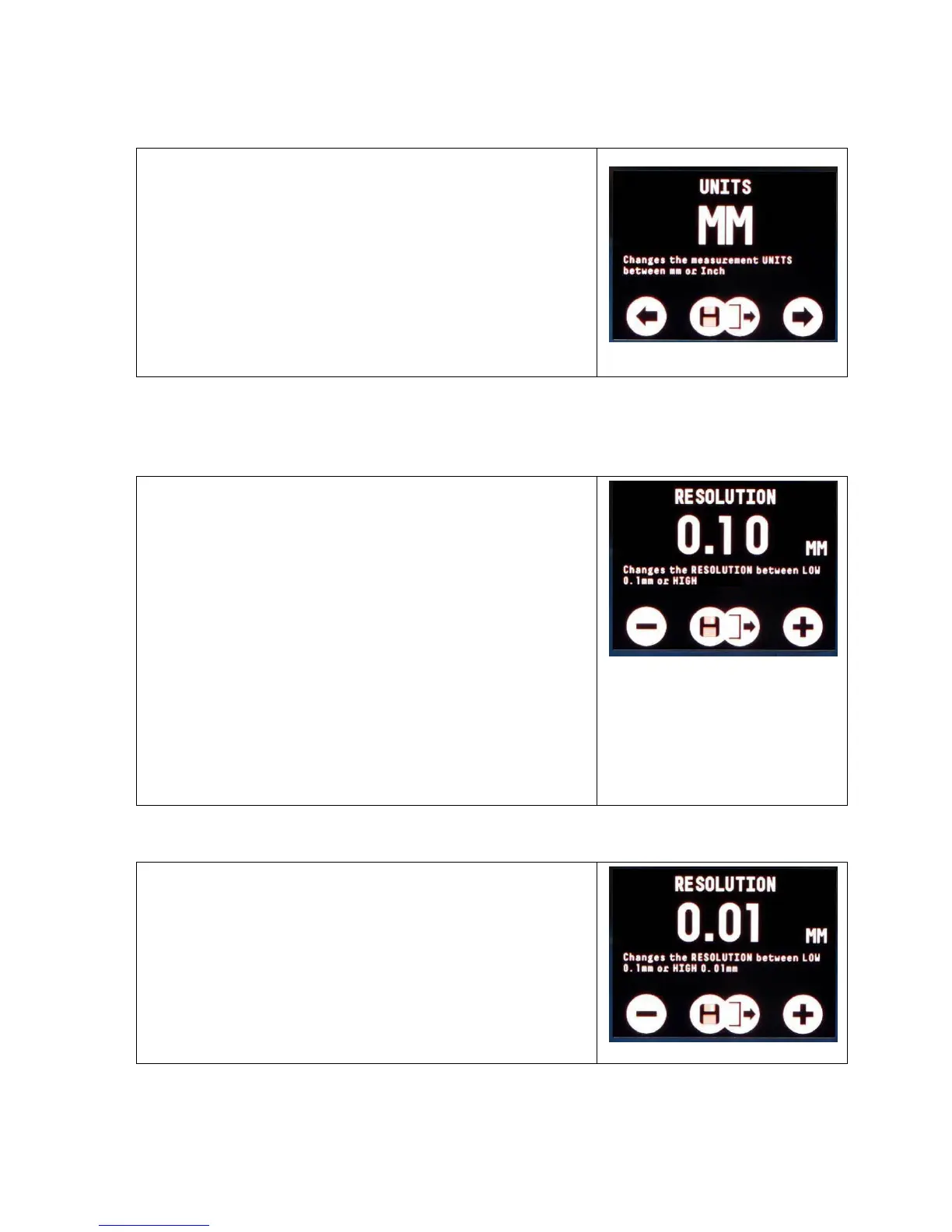

Units Setup Screen
Thickness Measurement Resolution (RESOLUTION)
Multiple Echo Mode
The gauge can display the thickness
measurement in 0.05mm or 0.1mm
resolutions (0.002 or 0.005 Inch)
To change the resolution select
RESOLUTION from the Main Menu.
Decreasing the resolution may help the
gauge to obtain a Multiple Echo thickness
measurement on heavily corroded
materials as the return echoes don’t have
to be matched as precisely.
Resolution Setup Screen
Single Echo and Echo-Echo Modes
The gauge c
an display the thickness
measurement in 0.01mm or 0.1mm
resolutions (0.001 or 0.005 Inch)
To change the resolutions select
RESOLUTION from the Main Menu.
Resolution Setup Screen
0.05
mm
