Cygnus M2-DIVE User Manual

Cygnus DIVE Operating Manual M2-DIVE-M-ENG_Iss5.docx
Page 77 of 118

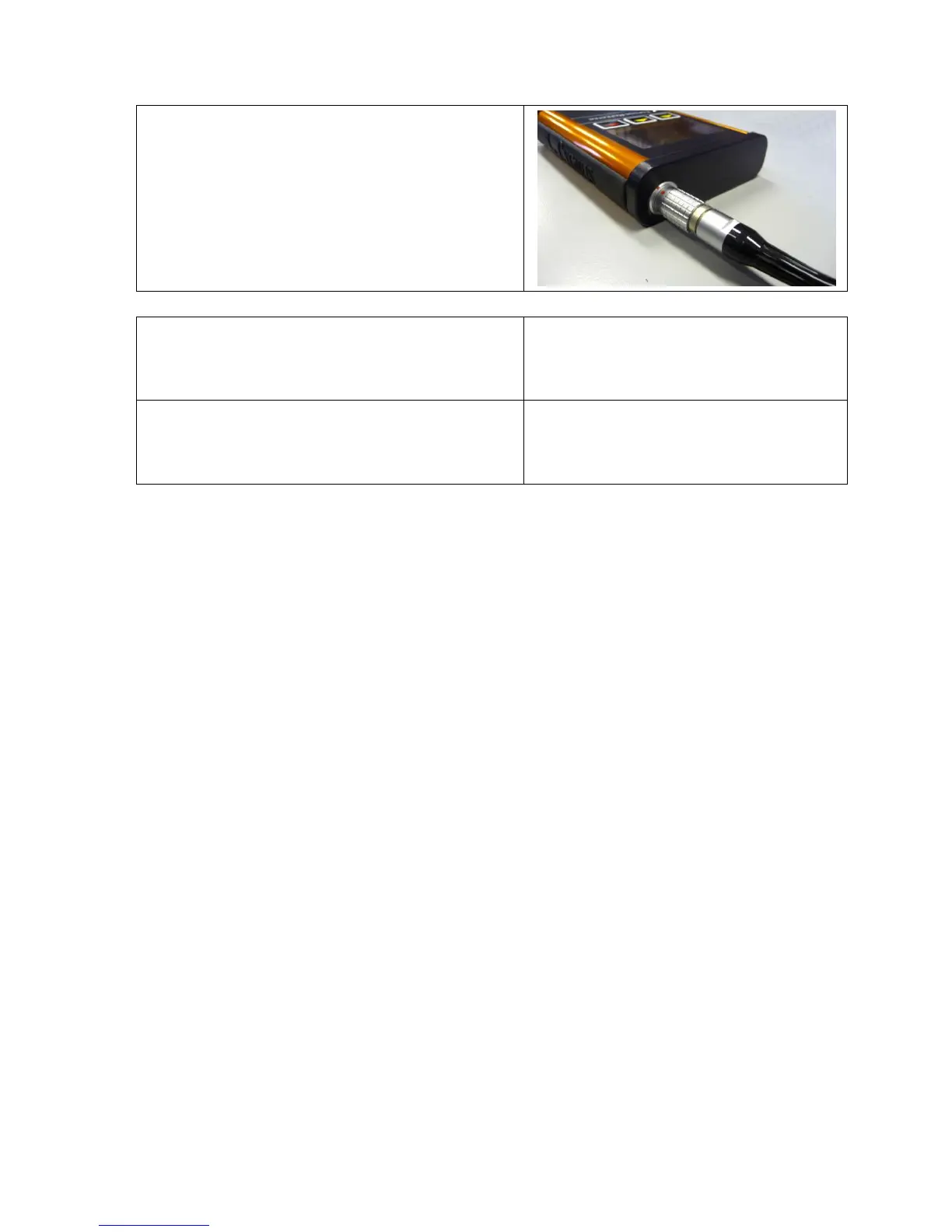

The Lemo connector plugs into the
top of the Topside Repeater Display
unit.
Align the red marks on the plug
and socket.
Remove the blanking plug from the
spare connector on the DIVE
gauge.
The plug on the umbilical plugs into
the socket on the DIVE gauge.
Testing the Link
Before use on a dive it is recommended to test the link between
the DIVE gauge and the Topside Repeater (TSR) display unit. To
do this simply power on both the TSR and the DIVE gauge then
measure the test block – the TSR should display the same
measurement as the gauge.
Changing the Batteries
The non-video overlay TSR operates from 2 x AA batteries. To
change the batteries unscrew the round battery cover from the
bottom of the TSR unit, the batteries can then be removed and
replaced. When replacing the battery cover, screw only finger
tight.
Topside Repeater with Video Overlay
The TSR is available with a Video Overlay function that will display
the thickness measurement on a composite video signal, this
allows the thickness measurement to be viewed on the topside
monitor screen, and also recorded if video recording is being used.
