Cygnus DIVE Operating Manual
M2-DIVE-M-ENG_Iss5.docx
Page 94 of 118

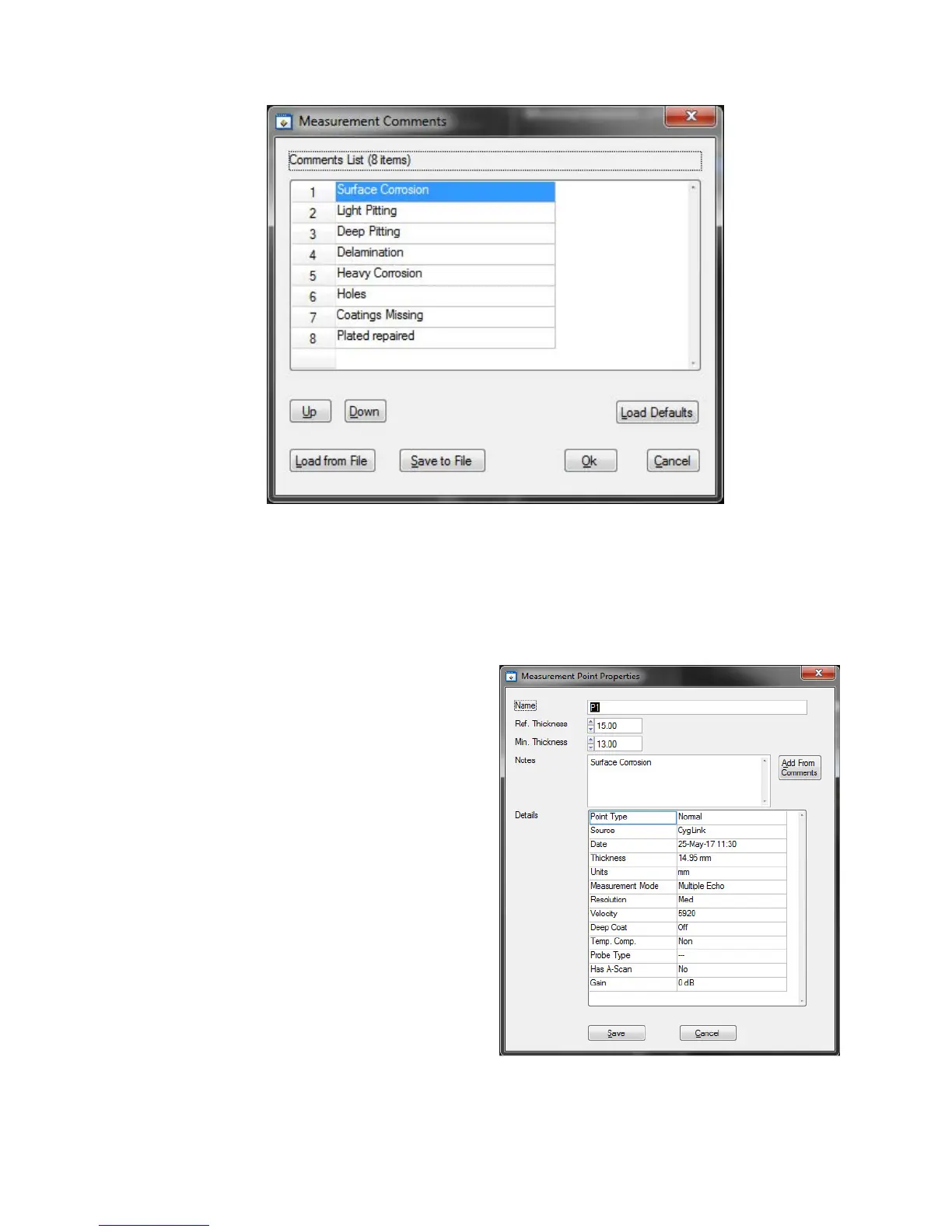

Measurement Comments Screen.
Adding Comme
nts or Notes to
a Measurement
You can add
your
own quick text
Notes to any logged th
ickness
measurement, ju
st select the
measurement po
int in the list
and right click to
display more
options.
Click
Add Note
t
o type in a
brief text note.
93
95
