1-4
SERVICE INFORMATION

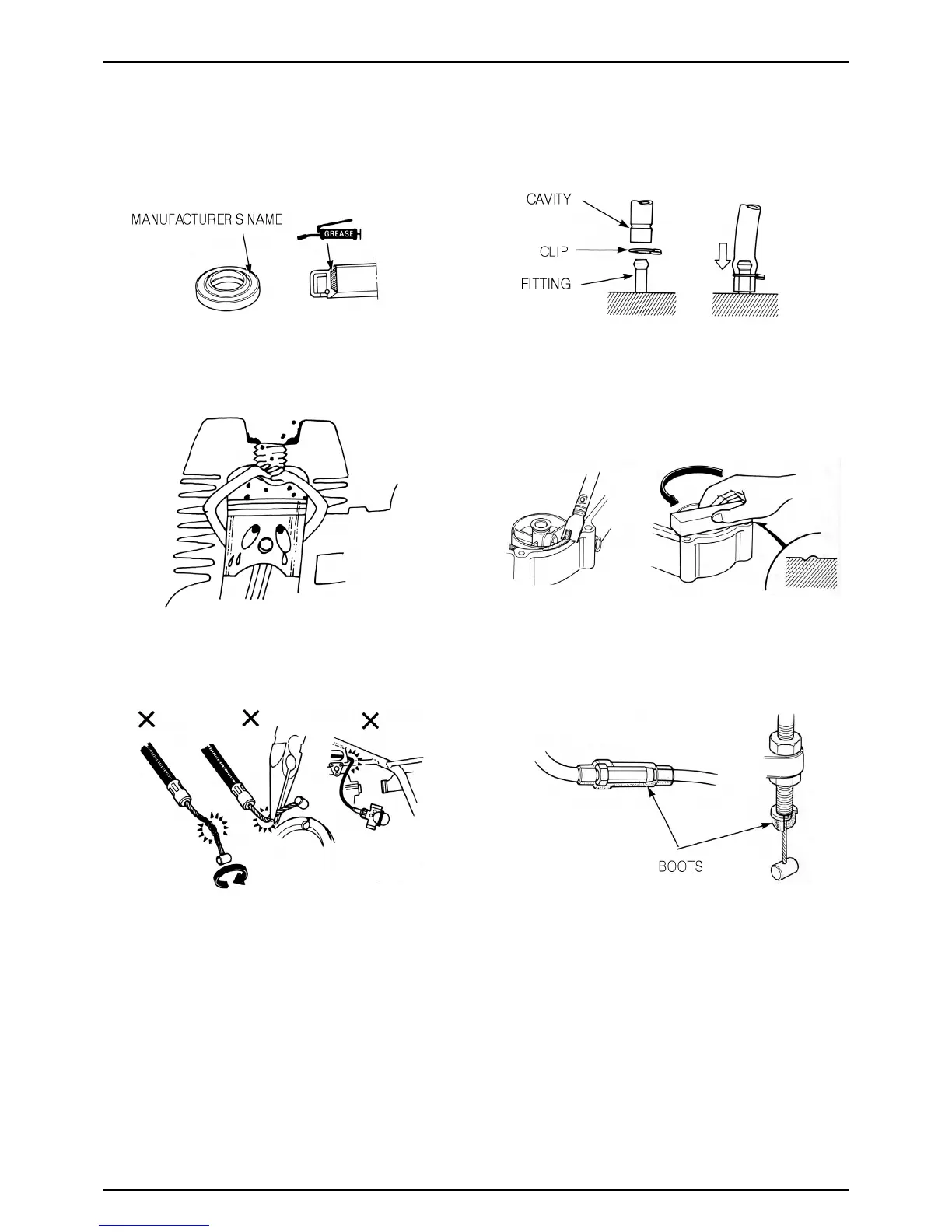

21. Keep the pneumatic system interior or the engine
interior from the infiltration of dust.
22. Install the gasket mounted in the contact surface of
each case of the engine while removing gasket
material completely. Remove damaged contact surface
by wiping with the oil stone equally.
19. Install the oil seal so that the manufacturer marked
surface directs outer surface.(direction not covered
with oil)
• Pay attention not to bend or damage the lip.
• Apply the grease to the lip.
20. Connect the tube until the tube fully inserted in the
joint. Install the clip if it is supplied. Replace the tube
having slacked end.
23. Pay attention not to bend the cable excessively.
Transformed or damaged cable may cause malfunction
or damage.
24. Install the boots with the installing groove by inserting
the boots into the groove.
’
