DAELIM S2 250 Service Manual

5-3
FUEL SYSTEM

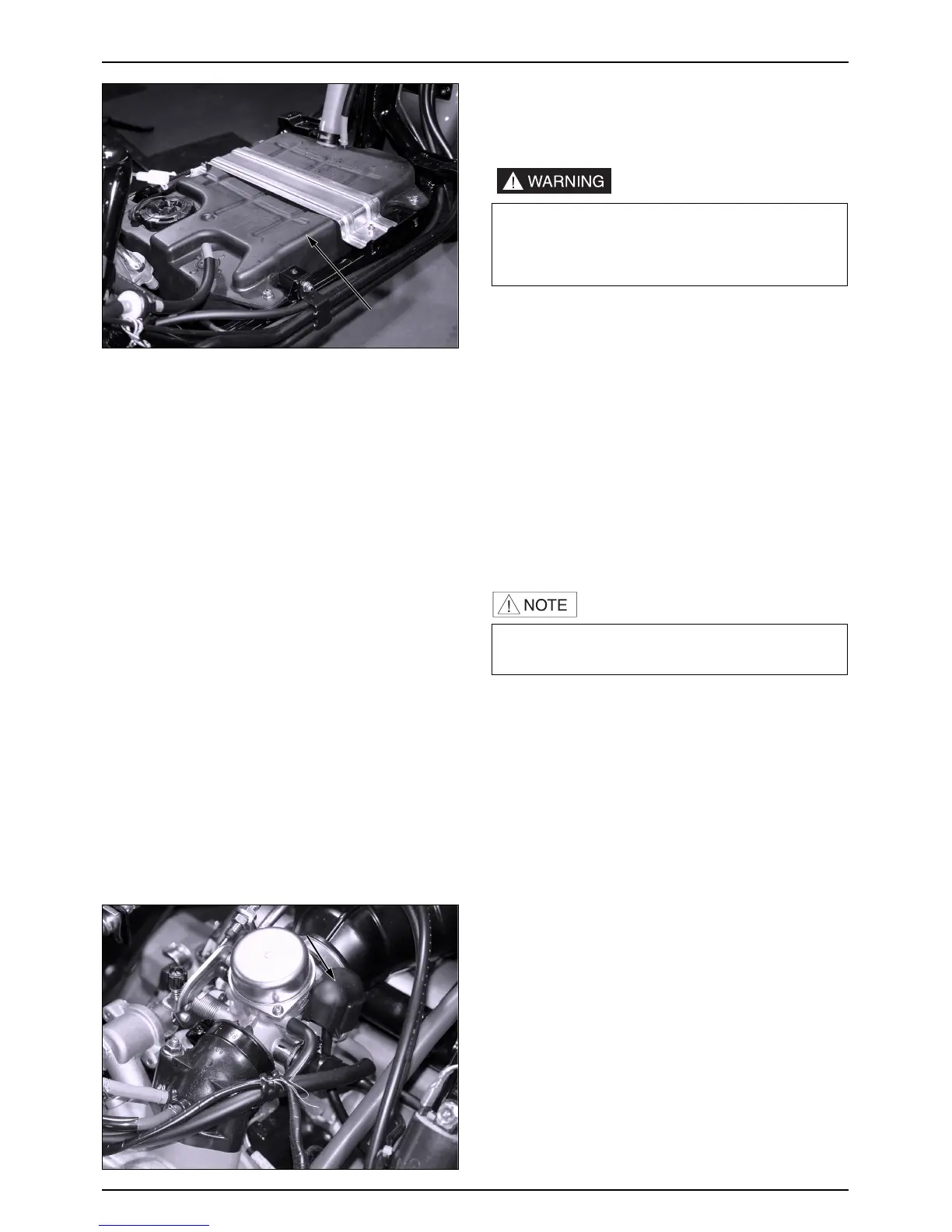

FUEL TANK
REMOVAL
● Release the seat lock by turning the main switch key to
open the seat.
● Remove the following parts.
- Luggage box. (⇨4-4)
- Floor panel leg.
- Center cover.
- Rear center cover.
- Rear carrier/Back rest.
- Body cover.
● Remove the fuel tube from the fuel tank.
● Remove the tube between the fuel tank and the fuel
filter.
● Remove the fuel vapor tub.
● Remove the fuel tank.
● Install in the revers order of removal
CARBURETOR
REMOVAL
● Remove the seat.
● Remove the luggage box.
● Remove the center cover.
● Remove the fuel tube and the vaccum tube.
● Remove the wiring coupler of the auto bystarter.
•After removing the fuel tank, be sure to close the
fuel tank cap.
•Gasoline is extremely flammable. Avoid fire during
work, and pay particular attention to electric sparks.
Furthemore, the evaporated (gasified) gasoline is
highly explosive. Work in a well-ventilated areas.
