3-4
EXTERNAL PARTS

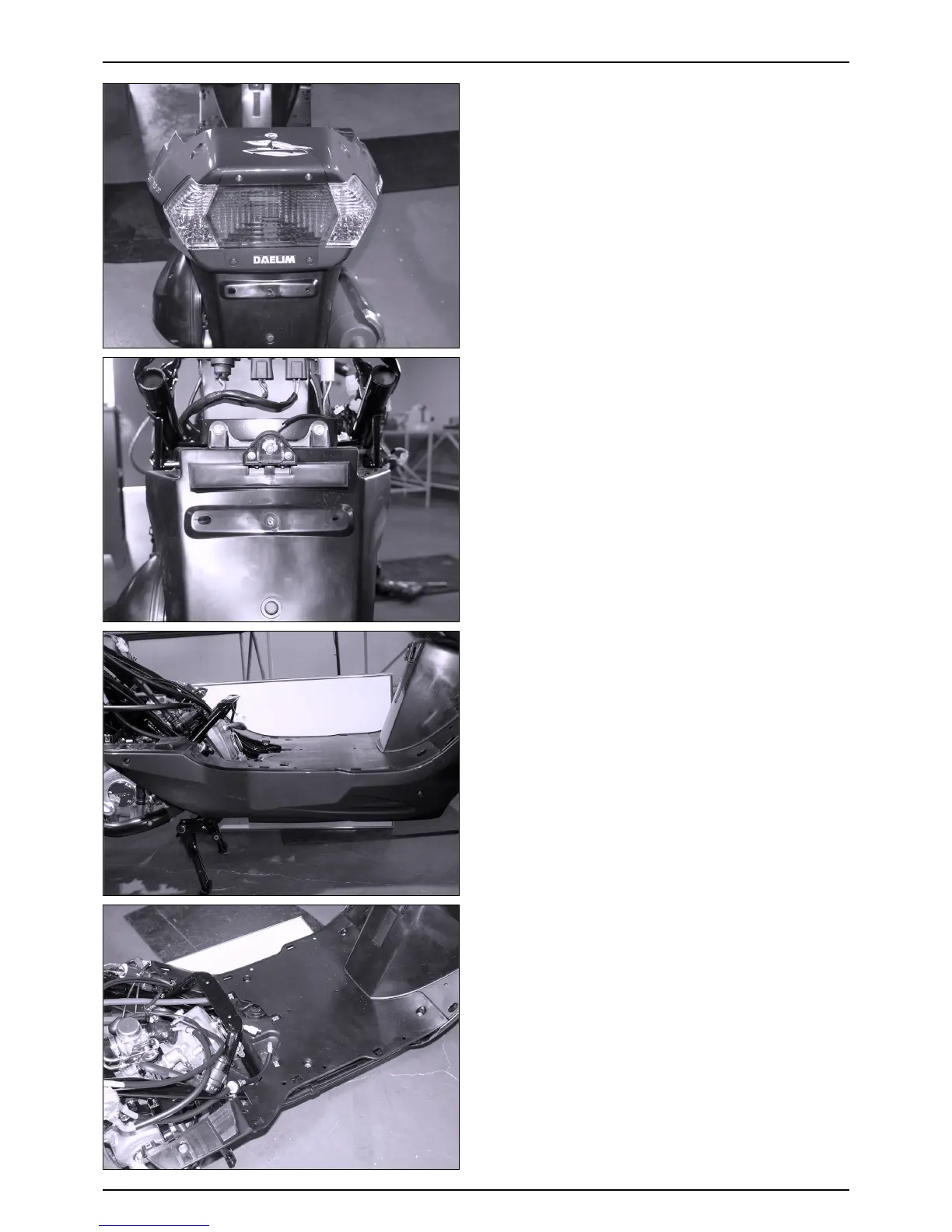

BODY COVER
● Remove the Rr. Grip R/L
● Remove the following parts
- Seat
- Luggage box
- Center cover
- Body side cover
● Loosen the special screw
● Loosen the body cover clip (R/L)
● Remove the wire for the tail light and pull the body
cover backward.
● Install in the reverse order of removal
REAR FENDER
● Remove the body cover
● Loosen the 4 washer bolts and remove the Rr. fender
● Install in the reverse order of removal
FLOOR SIDE COVER
● Remove the center cover
● Loosen the 3 body cover clips, 2 washer screws and 1
tapping screw in back side of left
● Remove the floor mat
● Install in the reverse order of removal
FLOOR PANEL
● Remove the floor side cover
● Loosen the 6 washer bolts
● Pull the floor panel backward to remove it
● Install in the reverse order of removal
