3-8

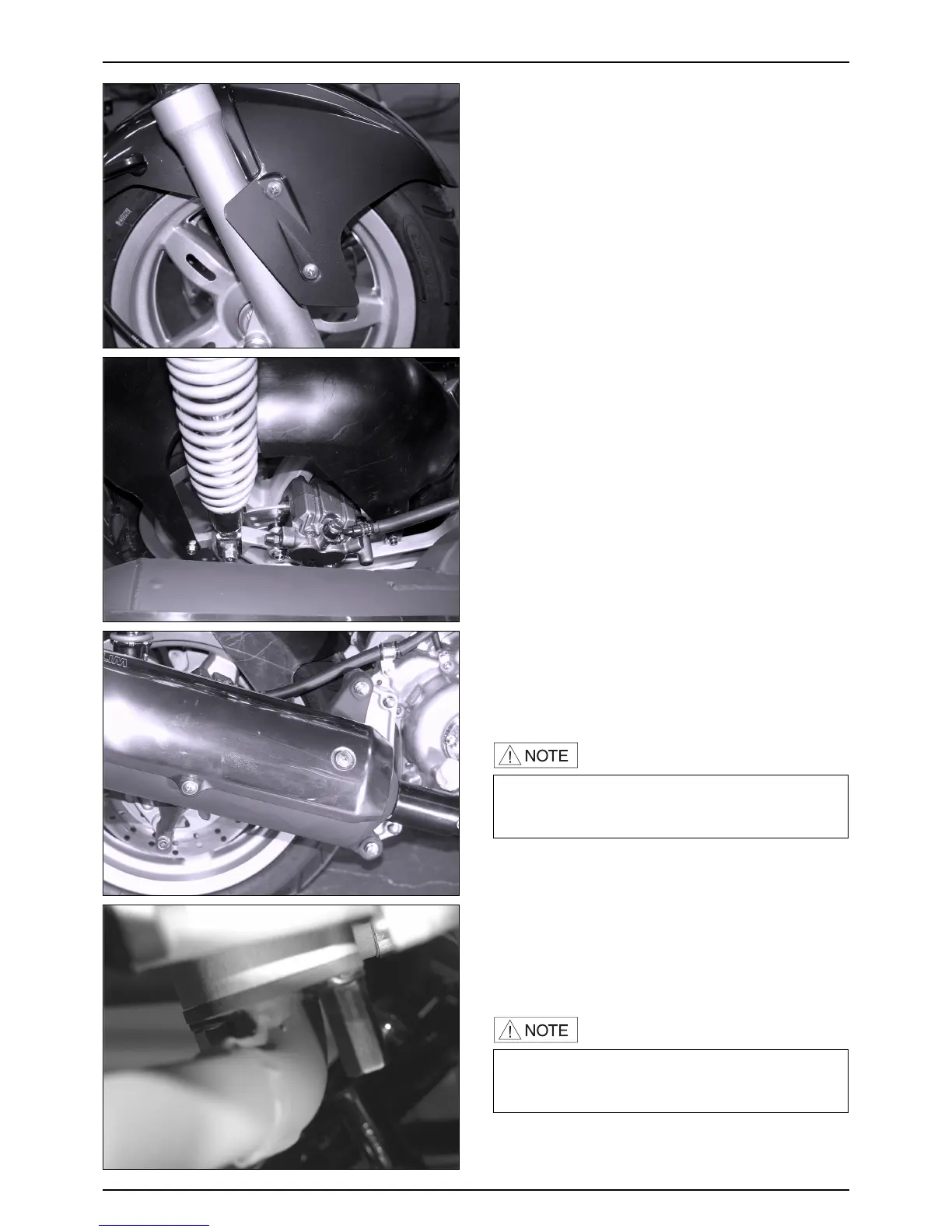

EXTERNAL PARTS
FRONT FENDER
● Loosen the 4 screws (R/L, 2Ea for each)
● Install in the reverse order of removal
EX. PIPE
● Loosen the 2 cap nuts securing the cylinder comp.
● Pull the Ex. Pipe comp. downward to remove it
● Install in the reverse order of removal
MUFFLER
● Loosen the muffler flange bolt securing Ex. pipe comp.
● Loosen the 3 bolts securing the Rr. Fork
● Remove the Ex. muffler comp.
REAL WHEEL MUDGUARD
● Loosen the 2 flange bolts of RH.
● Loosen the flange bolt securing the air cleaner and
mudguard
● Remove the air cleaner
● Loosen the washer bolt securing the mudguard
● Install in the reverse order of removal
•Never performing the maintenance of the muffler
right after stopping the vehicle because the muffler is
extremely hot.
•Replace the packing when assemblying the muffler
and Ex. pipe comp.
