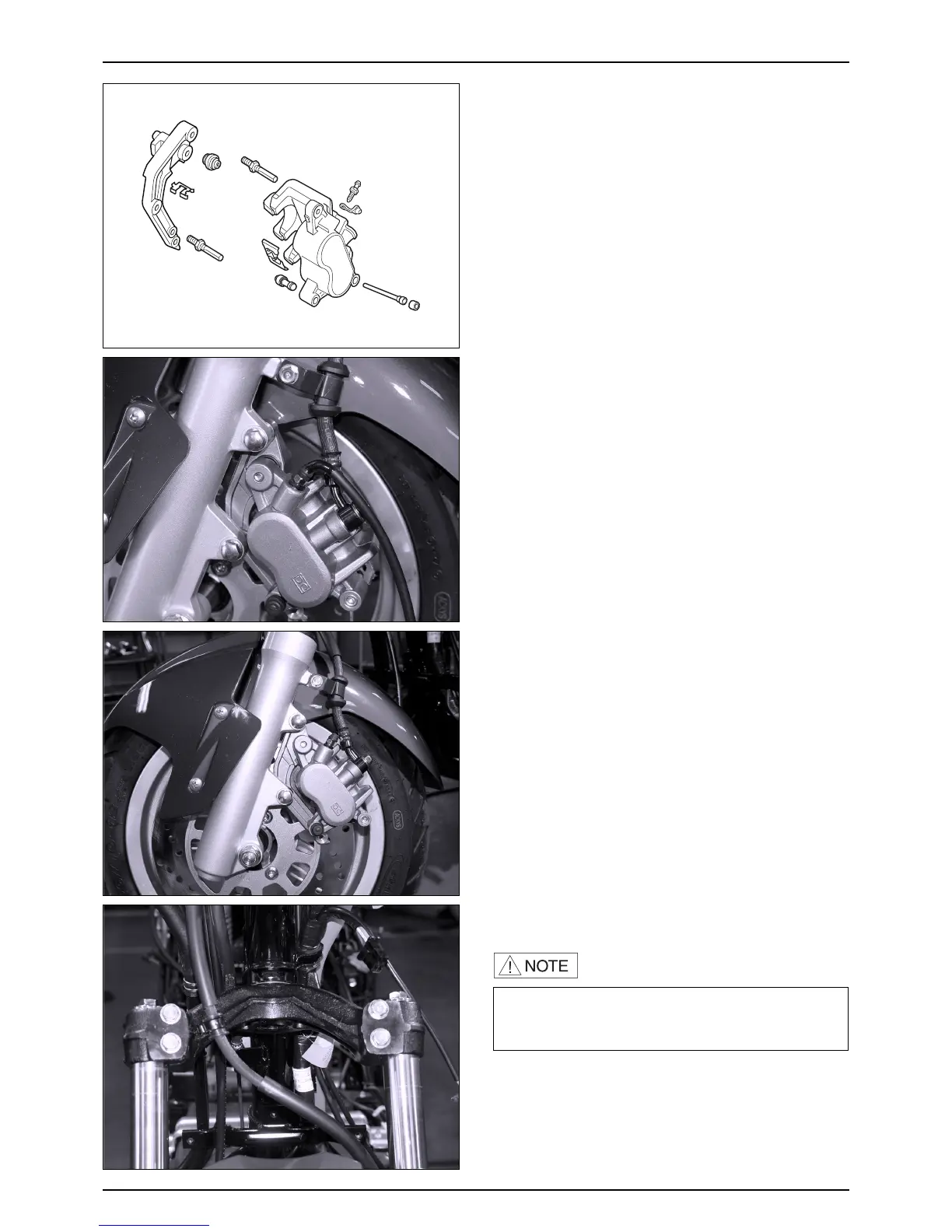

● Apply the silicone grease to the boot.
● Connect the boot to the portion of the caliper.
● Install the pad spring in the caliper.
● Install the caliper pin bolt and the slide pin in the
caliper.
● Install the brake pad and the hanger pin in the caliper.
● Install the front caliper to the front fork
● Tighten the bolt to the specified torque.
TORQUE VALUE : 3.0kgf
·
m
● Connect the brake hose to the caliper and install 2
sealing washers and oil bolt.
● Tighten the oil bolt to the specified torque
TORQUE VALUE : 3.4kgf
·
m
● Fill the brake fluid to the upper limit line and bleed air.
FRONT FORK
REMOVAL
● Remove the following parts.
-Front under cover
-Front brake caliper
-Front fender
-Front wheel
● When removing the front fork, loosen the fork pipe
bolt lightly.
● Loosen the 4 setting bolts securing the RH./LH. front
fork, remove the RH./LH. front fork.
● After removal of RH. front fork, loosen the flange bolt
and remove the front brake hose clamp A.
14-14
FRONT WHEEL/FRONT FORK/STEERING/BRAKE
·Support the vehicle securely under the engine not to
turn over it.
·Loosen the fork pipe bolt, but do not remove it.
To Next Page
