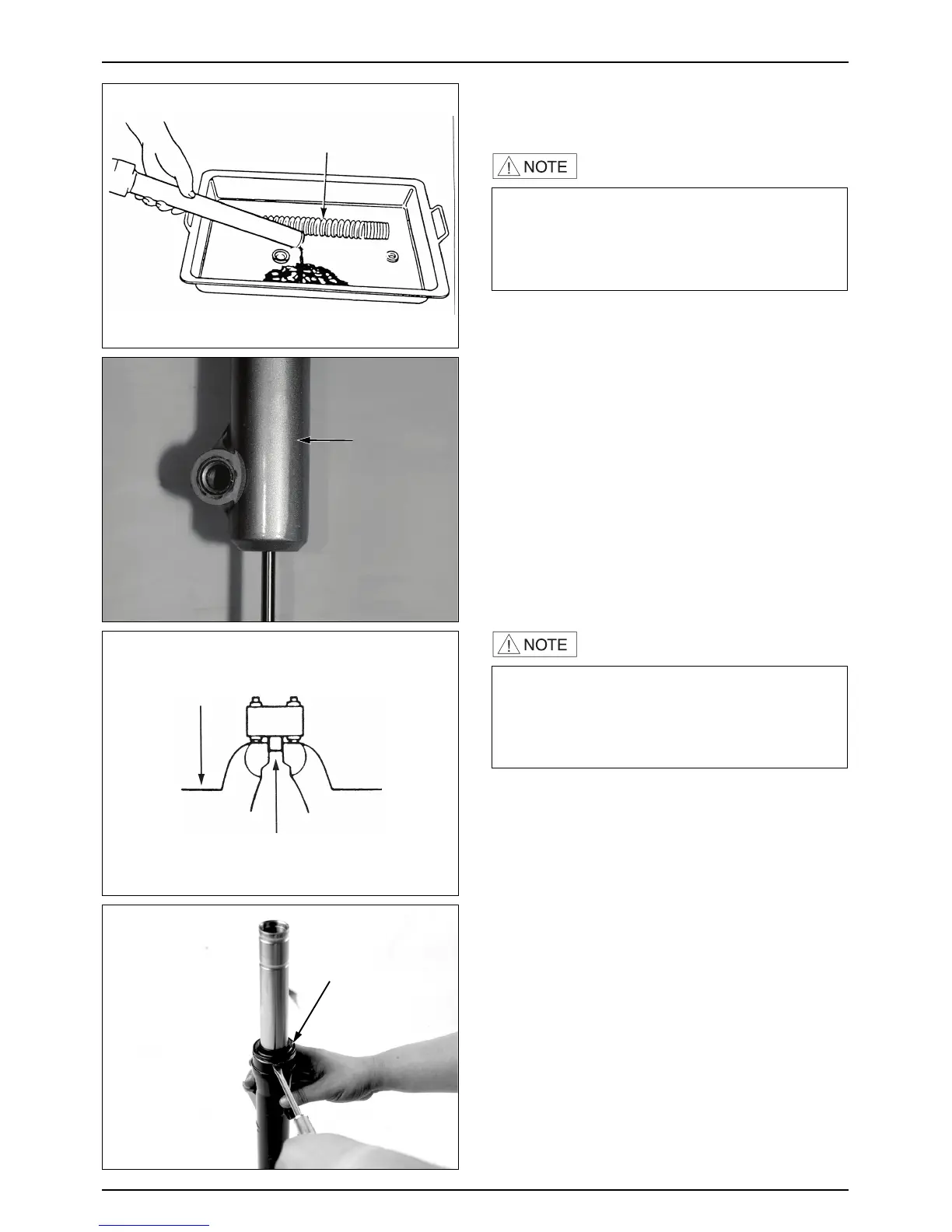

DISASSEMBLY

● Remove the fork pipe bolt.

● Wrap the bottom case with a piece of cloth, and

remove the socket bolt.

● Remove the dust seal.

14-15

FRONT WHEEL/FRONT FORK/STEERING/BRAKE

·If the screw is completely loosened, the fork tube

cap bolt may spring out by the force of the spring.

Take due precautions.

·Remove the fork spring, and expand and release the

fork pipe several times to drain fork oil.

·If the socket bolt turns idle but cannot be removed,

temporarily assemble the spring and the fork tube

cap bolt first.

·Hold the bottom case firmly with a vise, taking

precautions not to distort or damage it.

SPRING

VISE

BRACKET

DUST SEAL

SOCKET BOLT
