DAELIM S2 250 Service Manual

19-7

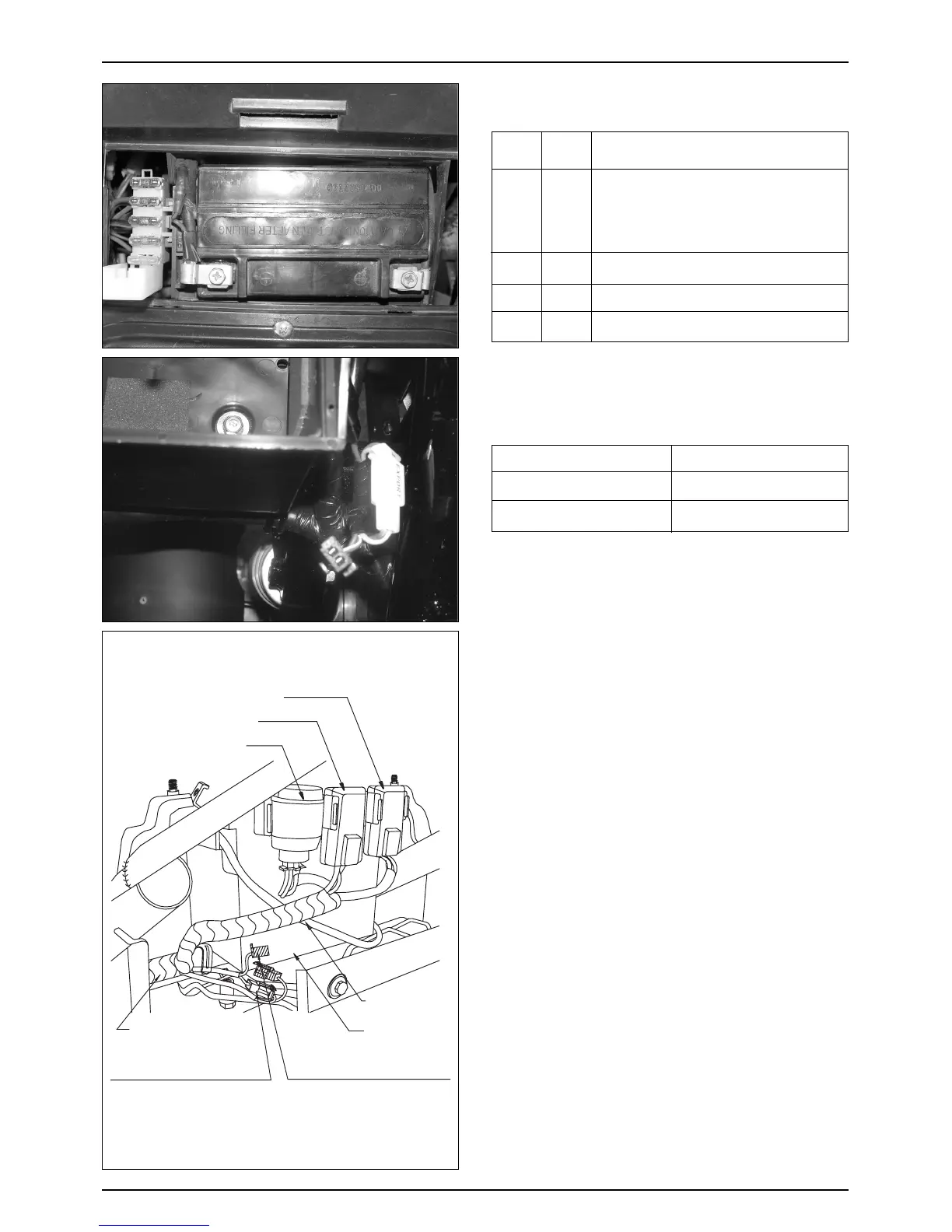

LIGHTS/SWITCH/HORN
HEAD LIGHT RELAY
THERMO SWITCH RELAY
WINKER RELAY
EARTH CABLE
MAIN WIRE
HARNESS
BATTERY BOX
DOMESTIC USE ONLY
(COUPLER COLOR : BLACK)
EXPORT USE ONLY
(COUPLER COLOR : WHITE
"EXPORT" MARKED)
COUPLER CONNECTION
● Connect the coupler corefully according to the type of
vehicle.
● If headlight switch in mounted wiht the vehicle,
connect the white colored coupler only.
● If hazard switch is mounted with the vehicle connect
the black colored coupler only.
FUSE CAPACITY
Fuse A 30A
Charging, combi S/W, trunk lamp,
regulator
Fuse B
15A
Winker relay, meter lighting, horn,
headlight (HI), front/rear stop switch,
taillight, heater control, fuel meter, water
temp. meter
Fuse C
10A
Ignition coil, auto bi-starter
Fuse D
10A
Fan motor
Fuse F
10A
Headlight (LO)
TYPE SPEC.
EXPORT
DOMESTIC
COLOR
WHITE
BLACK
