INSTALLATION
● Install the brack caliper to the front fork and tighten the
bolt to specified torque.
TORQUE VALUE : 3.0kgf
·
m
● Connect the brcakhose to the caliper body and tighten 2
oil bolts and washers to specified torque.
TORQUE VALUE : 3.4kgf
·
m
● Fill the break fluid to te upper limit line and bleed air.

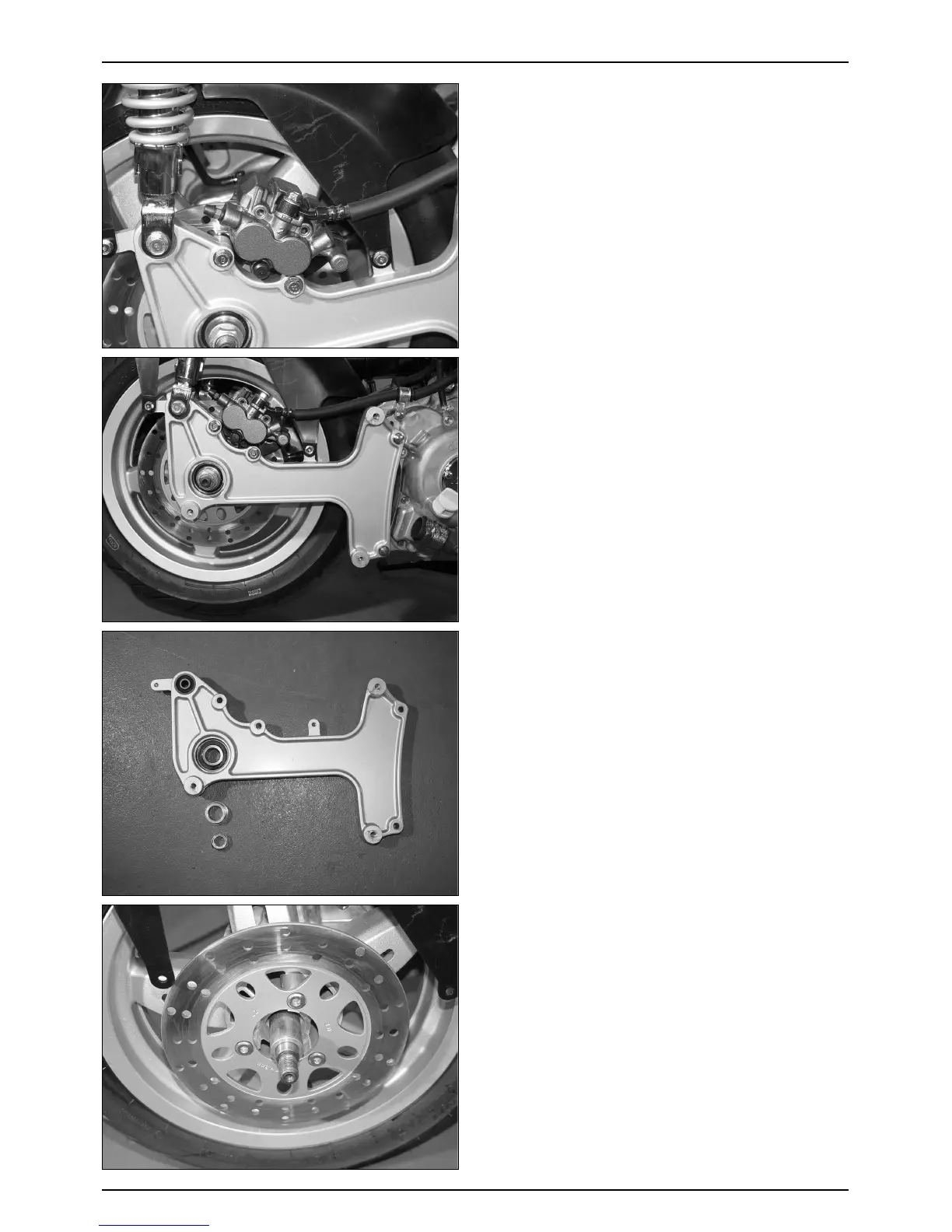

REAR WHEEL
REMOVAL
● Remove the exhaust muffler.
● Remove the rear brake caliper.
● Remove the rear fork.
● Remove the rear axle collar.
● Remove the rear wheel.
● Rotate the inner bearing with finger and check it for
smooth operation.
● Check the malfunction and replace if necessary.
REAR FORK
● Remove the muffler.
● Remove the rear breake caliper.
● Loosen the lower bolt securing the RH. rear cushion.
● Loosen 2 bolts securing the mud guard.
● Loosen the axle nut and remove the collar.
● Loosen 2 bolts securing the engine and remove the rear
fork.
15-5
REAR WHEEL / BRAKE / SUSPENSION / SWING ARM
