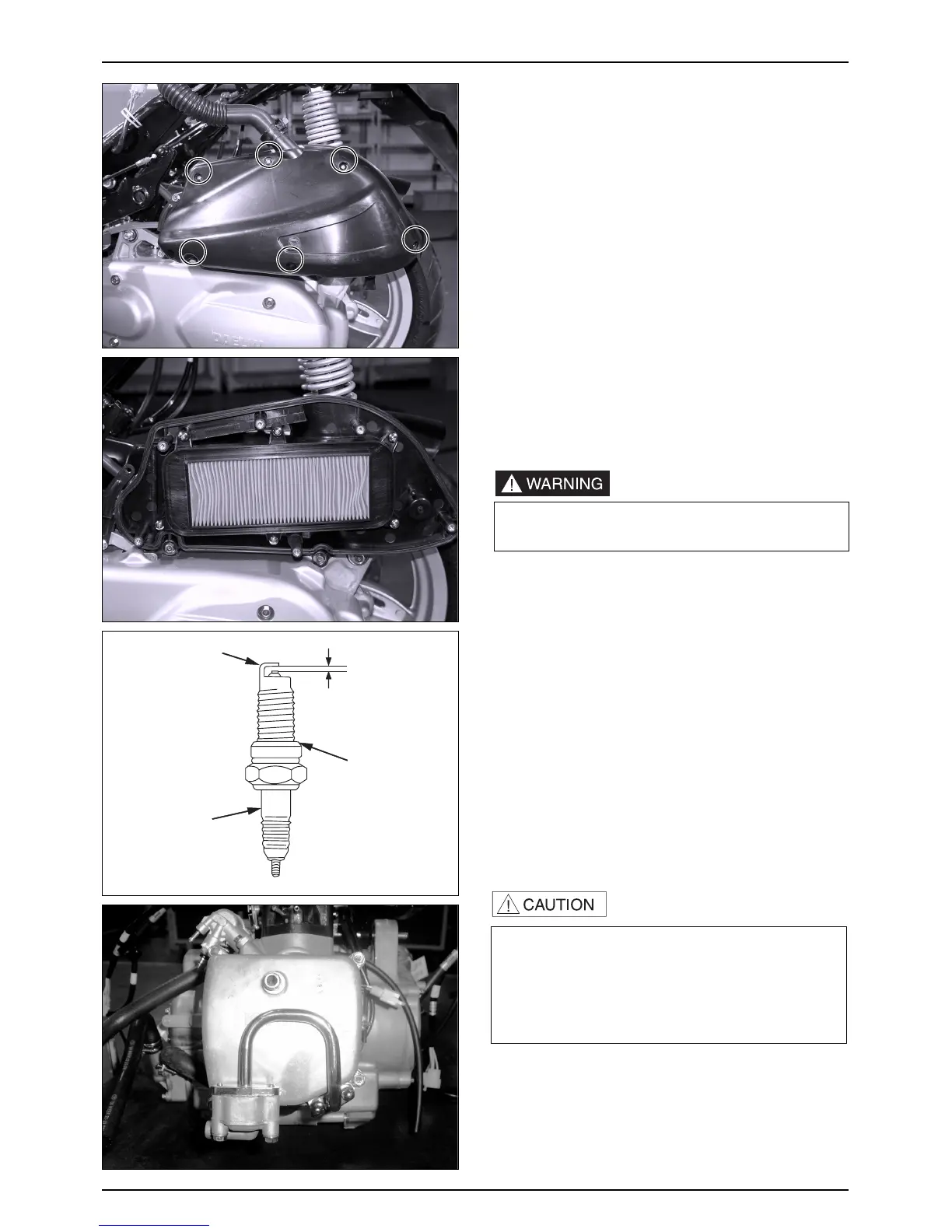

INSPECTIONS / ADJUSTMENTS
AIR CLEANER
● Loosen the 6 screws securing the air cleaner case cover,
remove it.
● Loosen the 2 screws securing the air cleaner element
holder, remove it.
VALVE CLEARANCE
● Remove the cylinder head cover.
SPARK PLUG
● Remove the plug maintenance cover.
● Remove the spark plug cap and disassemble the plug.
● Check the plug for damage, contamination or deposits.
● If the spark plug is severely contaminated or damaged,
raplace with a new one. If the plug can be reused after
removing only the carbon, use plug cleaner and wire
brush to clean the plug.
● Always use a feeler gauge to check the gap.
GENUINE PLUG : DPR7EA9
SPARK PLUG : 0.9~1.0mm
TORQUE VALUE :
1.47~1.96kgf
·
m
● Remove the air cleaner element.
● Wash away any accumulated dust or dirt, by gently
squeezing it in non flammable or high flash point
solvent.
•Using gasoline or low flash point solvents for
cleaning parts may result in a fire or explosion.
•Make sure there is no dirt or debris on the seat of the
spark plug hole before inserting the spark plug.
•To prevent damage to the cylinder head, hand-
tighten the spark plug before using a wrench to
tighten to the specified torque.
•Do not overtighten the spark plug.
CHECK GAP,
DEPOSITS
0.6 ~ 0.7mm
CHECK FOR
CRACKS
CHECK WASHER
FOR DAMAGE
To Next Page
