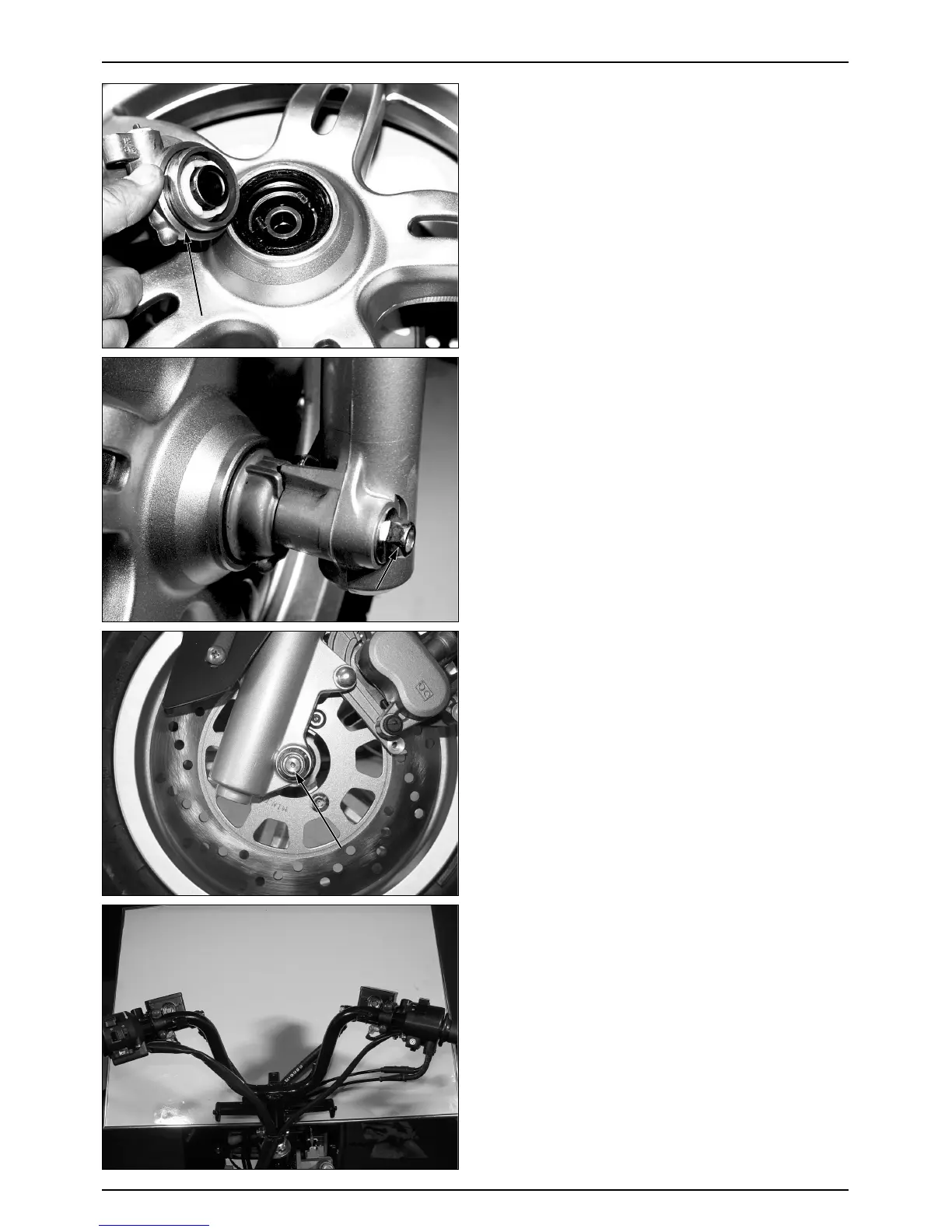

● Apply grease to the dust seal rim.

● Install the dust seal, and align the tangs of the

speedometer gear retainer with the gear groove to

assemble the speedometer gear box.

FRONT WHEEL INSTALLATION

● Insert the front wheel between the front forks.

● Insert the disk, taking precautions not to damage the

pad, and assemble the wheel.

● Align the slots of the speedometer gear with the tangs

of the left fork slider.

● Insert the front axle into the speedometer gear box and

the wheel hub.

● Install the axle nut.

● Install the speedometer cable, and tighten with screws.

● Place the front wheel on the ground, and tighten the

axle nut to the specified torque.

TORQUE VALUE : 5.0-7.0 kgf

14-7

FRONT WHEEL/FRONT FORK/STEERING

FRONT WHEEL

BRAKE MASTER CYLINDER

REMOVAL

● Remove the handlebar covers.

● First drain the brake fluid from the hydraulic brake

system.

● Disconnect the front stop switch wire connector.

● Remove the brake fluid tube bolt.

● Remove the two bolts securing the brake master

cylinder.

● Remove the brake master cylinder.

SPEEDOMETER GEAR BOX

FRONT AXLE

AXLE NUT
