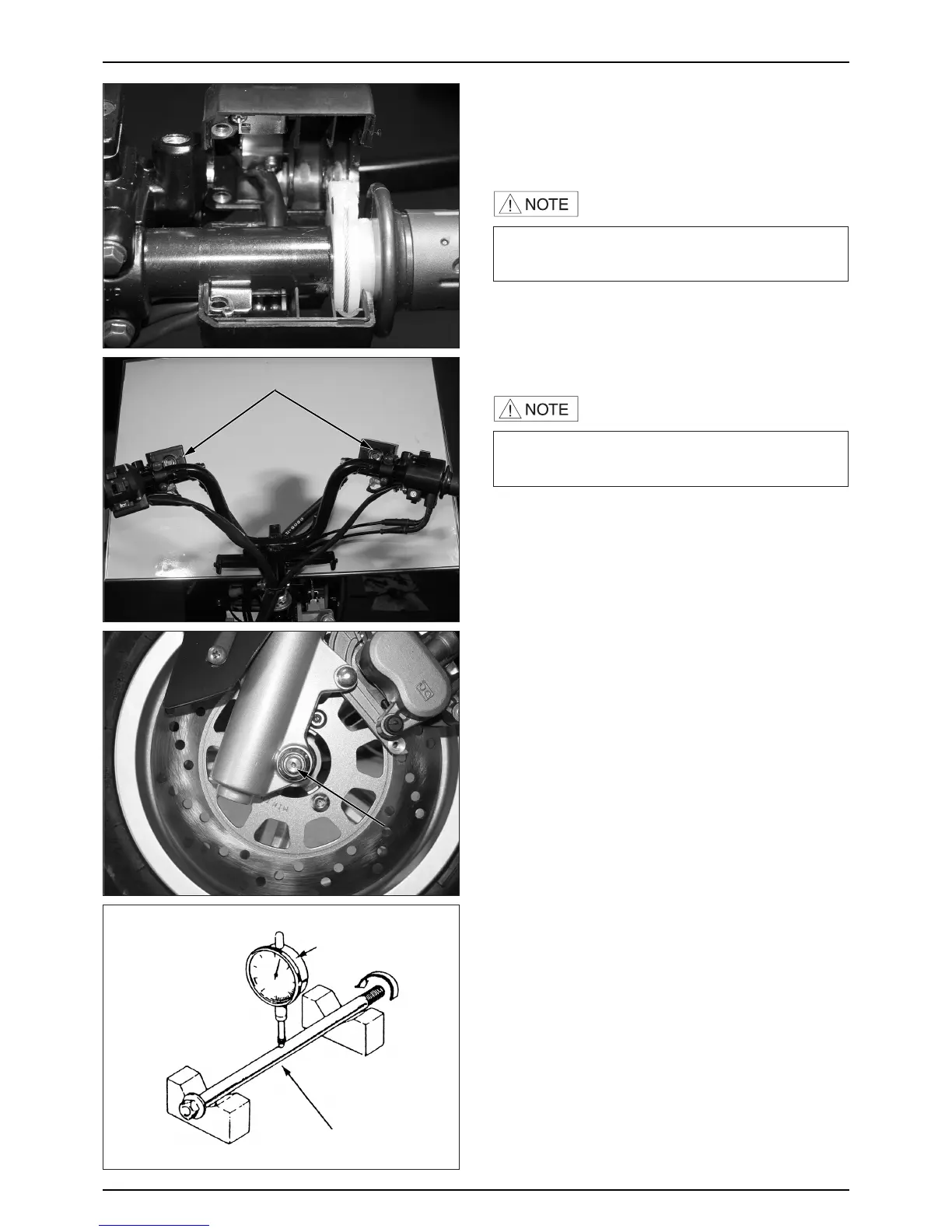

FRONT WHEEL/FRONT FORK/STEERING/BRAKE

● Lubricate the throttle grip front end with grease and

then install the throttle grip.

● Connect the throttle cable to the throttle grip.

● Install the right and left handlebar switches and tighten

the screws.

● Install the front and rear brake master cylinders.

● Install in the reverse order of removal.

FRONT WHEEL

REMOVAL

● Jack the motorcycle front wheel off the ground.

● Remove the front axle nut to pull out the axle.

● Remove the front wheel and the speedometer gear unit.

INSPECTION

AXLE RUNOUT

● Set the axle in V blocks and measure the runout using a

dial gauge.

● The actual runout is 1/2 of the total indicator reading.

SERVICE LIMIT : 0.2mm replace if over

·Adjust the throttle grip free play to the specified

range of 2~6mm.

·Install the brake master cylinders by aligning the

index marks.

DIAL GAUGE

AXLE

BRAKE MASTER CYLINDER

AXLE NUT
