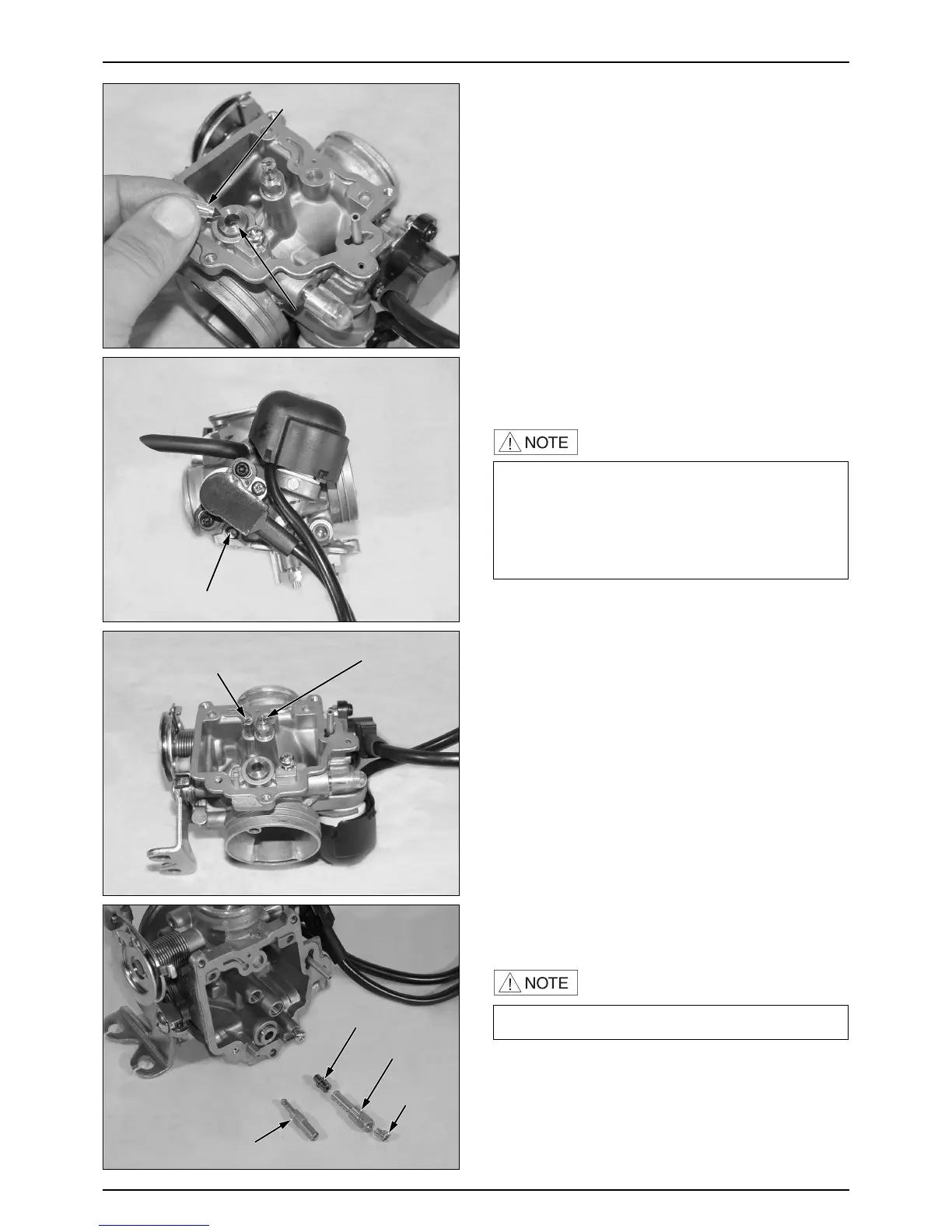

FLOAT VALVE INSPECTION
● Inspect the float valve seat contact area for wear.
JETS/SCREWS REMOVAL
● Inspect the float valve seat contact area for wear.
● Remove the main jet, needle jet holder and needle jet.
● Remove the slow jet.
● Clean the removed the main jet, needle jet holder,
needle jet and slow jet with detergent oil.
5-6
FUEL SYSTEM
•Before removing the pilot screw, turn the pilot screw
clockwise until it seats lightly and record the rotating
turns.
•Do not force the pilot screw against its seat to avoid
seat damage.
•Be sure to use clean detergent oil.
