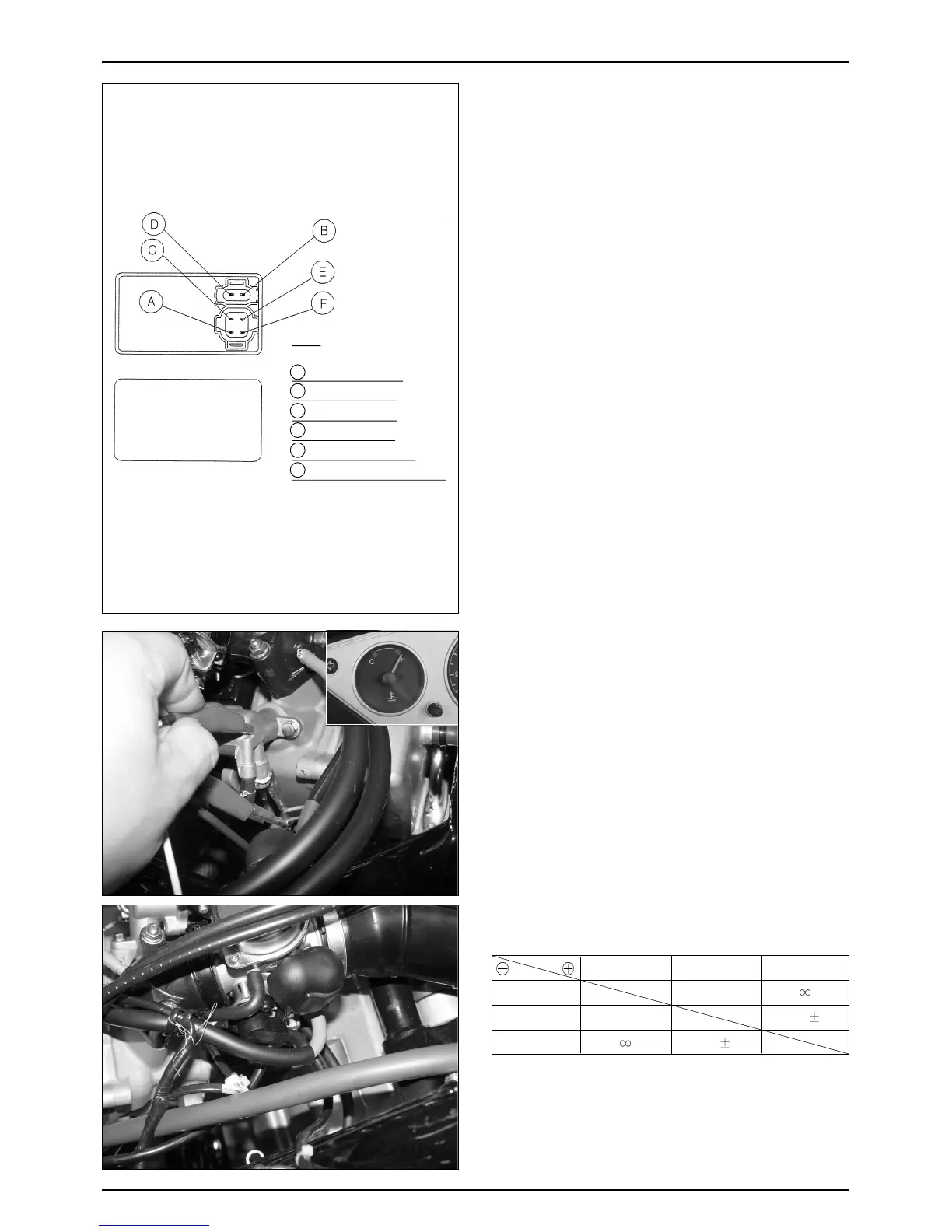

19-5
LIGHTS/SWITCH/HORN
A TERMINAL : EARTH
B TERMINAL : NONE
C TERMINAL : NONE
D TERMINAL : SW. 1
E TERMINAL : BATTERY
F TERMINAL : PULSER(INPUT)
CORD
SZ1-LC
HEADLIGHT CONTROLLER
● When the main switch turns ON, the headlight (low),
meter illumination, taillight, position light and license
light turns on during a second and turns off.
● If the engine RPM becomes over 1,100rpm, the
headlight (low), the meter illumination, taillight,
position light and license light turns on
COOLANT TEMPERATURE GAUGE
● If the gauge needle indicates the red zone when idling
or running, turn the main switch OFF.
● Wait until the engine is cool and perform the following.
● Disconnect the wire from the thermo sensor.
● Ground the thermo sensor wire with a jumper wire.
● Turn the main switch ON. Disconnect the thermo
sensor wire from the ground immediately if the gauge
needle moves fully to H. (If it moves fully to H, the
gauge can be damaged.)
THROTTLE POSITION SENSOR
V/A
V/G
4~6
4~6
0~5 1
V/A V/G V/B
V/B
0~5 1
