DAELIM S2 250 Service Manual

6-6
COOLING SYSTEM
CHECK THERMOSTATIC SWITCH
● When coolant temperature lower then 83~87°C the
thermostatic switch OFF.
● When coolant temperature over 88~92°C the
thermostatic switch ON.

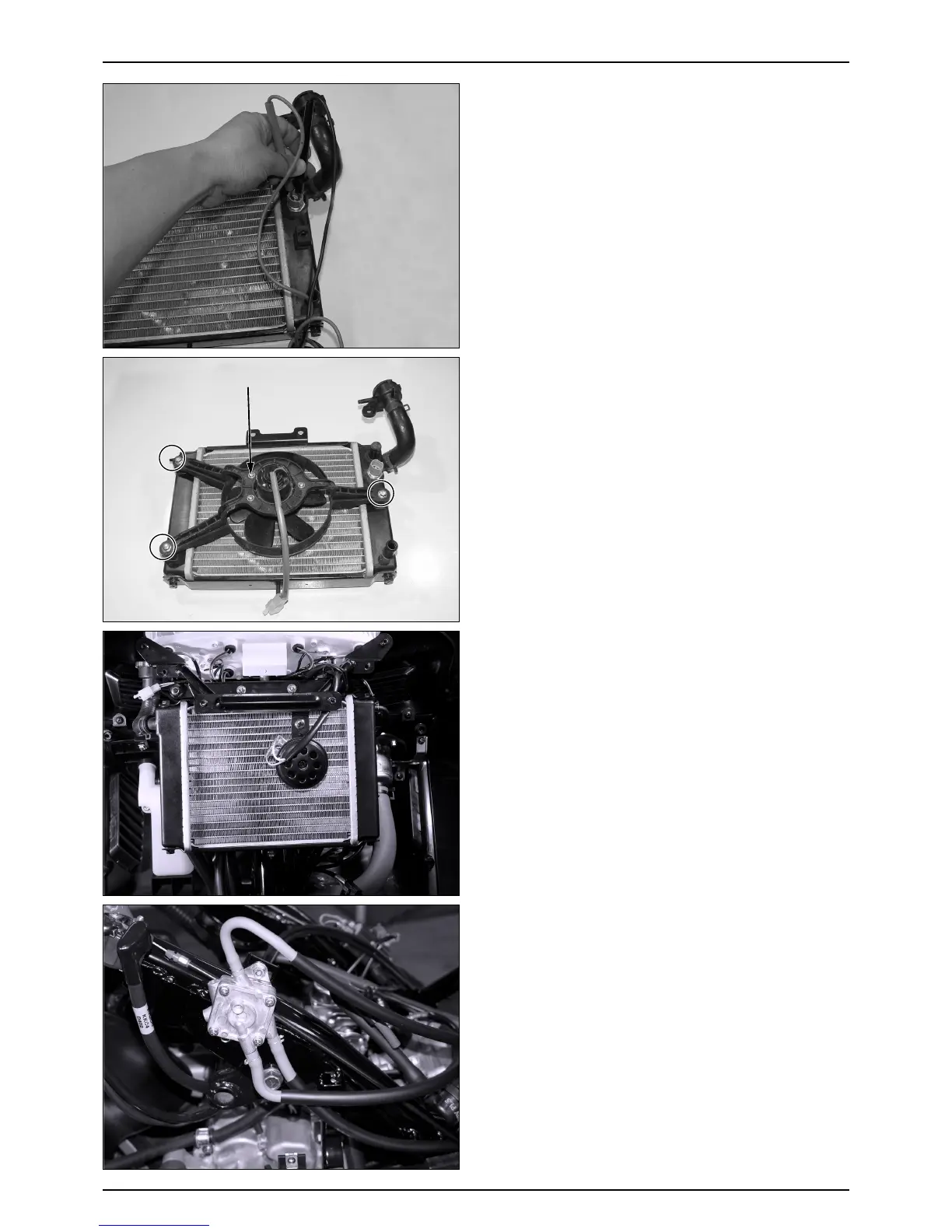

RADIATOR INSTALLATION
● Install the radiator on the radiator bracket with the 2
bolts and 1 nut.
● Connect the upper and lower hoses and secure them
with hose bands.
● Connect the thermostatic switch wire and fan motor
wire couplers.
● Install the fan shroud on the radiator with the 3 bolts.
