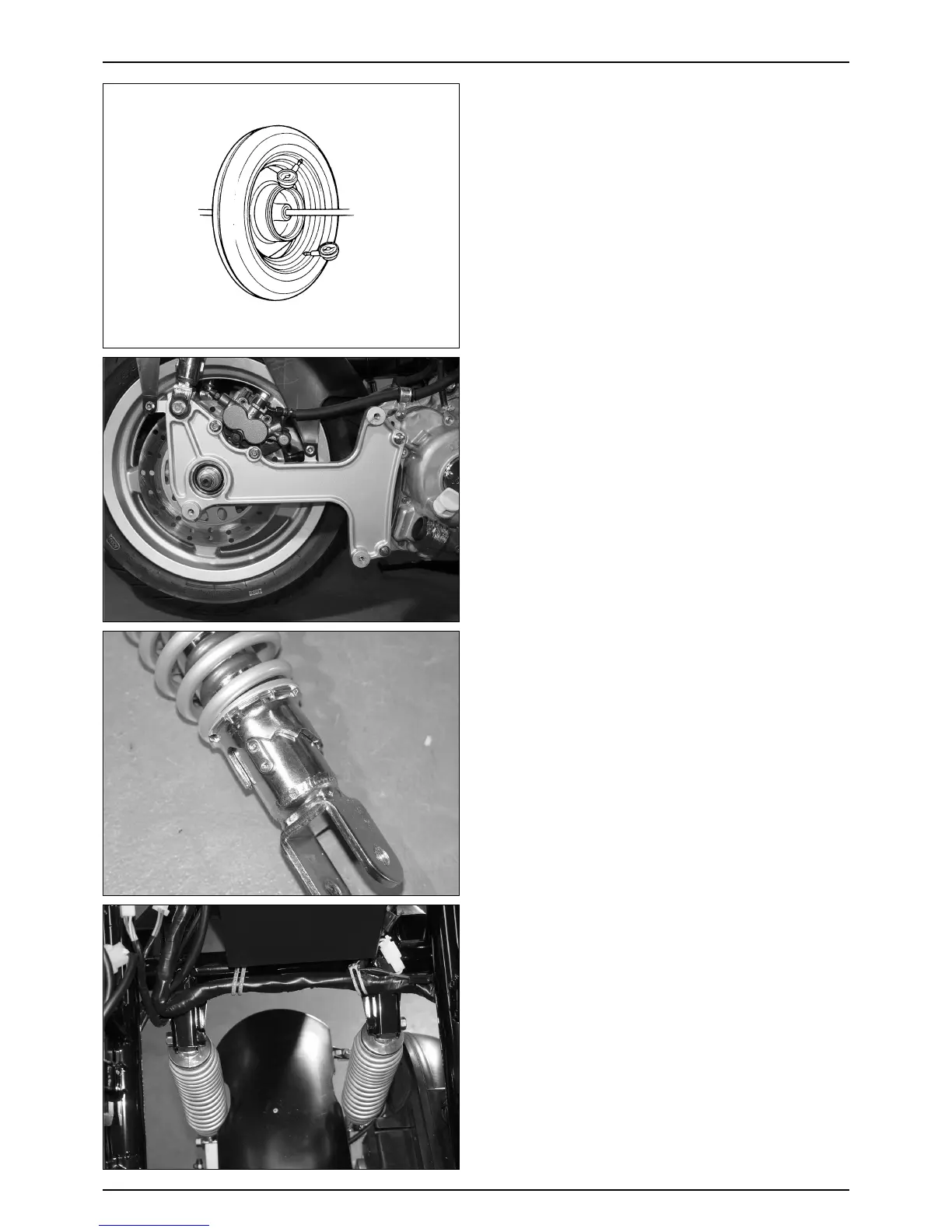

INSPECTION
Measure the rear wheel rim runout.
SERVICE LIMIT :
RADIAL : 1.0mm replace if over
AXIAL : 1.0mm replace if over
ASSEMBLY
Install in the reverse order of removal.
TORQUE VALUE
Rear cushion lower bolt: 1.96~2.94kgf
·
m
Rear axle nut: 7.84~9.8kgf
·
m
REAR CUSHION ADJUST
Adjust the cushion spring according to the load
condition.
The rear cushion can be adjusted as below.
1-2-3-4-5
soft medium hard
REAR CUSHION
REMOVAL
Remove the luggage box.
Remove the air cleaner.
Remove the upper bolt.
Remove the lower bolt.
Remove the rear cushion.
15-6
REAR WHEEL / BRAKE / SUSPENSION / SWING ARM
