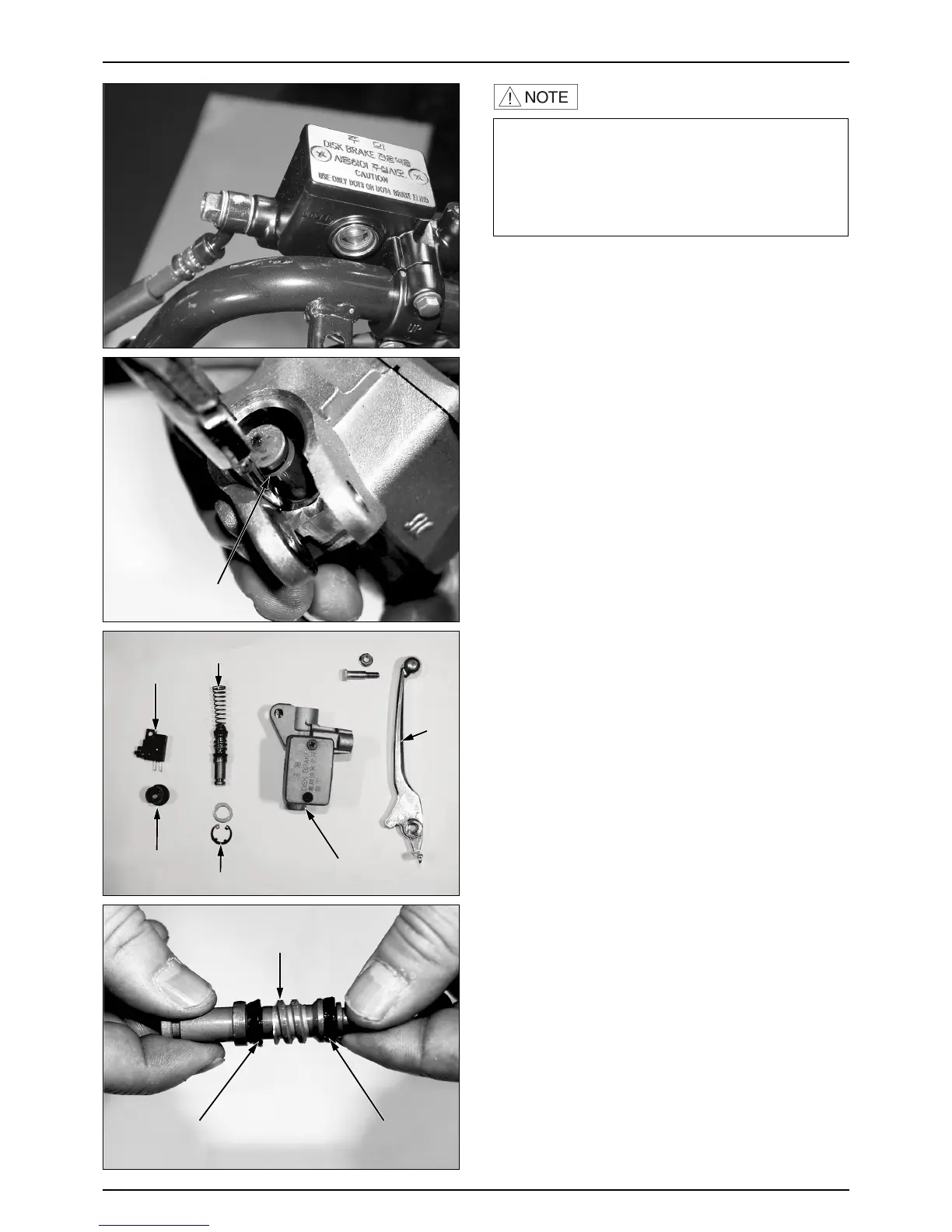

DISASSEMBLY
Remove the Fr/Rr stop switch.
Take out the boot and circlip from the master cylinder.
TOOLS : SNAP RING PLIERS
Remove the washer, piston, spring from the master
cylinder.
Clean the master cylinder, reserve, master piston with
the recommended brake fluid.
INSPECTION
Check the piston periphery for scores, scratches or
nicks and replace if necessary.
Check the primary and secondary cups for wear.
14-8
FRONT WHEEL/FRONT FORK/STEERING/BRAKE
·When servicing the brake system, use shop towels to
cover rubber and plastic parts and coated surfaces to
avoid being contaminated by brake fluid.
·When removing the brake fluid tube bolt, be sure to
plug the tube end to avoid brake fluid leakage.
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
STOP
SWITCH
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
LEVER
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER SET
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
MASTER
CYLINDER BODY
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
CIR CLIP
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP
SECONDARY CUP PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
PRIMARY CUP
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
BOOT
