14-6

FRONT WHEEL/FRONT FORK/STEERING/BRAKE

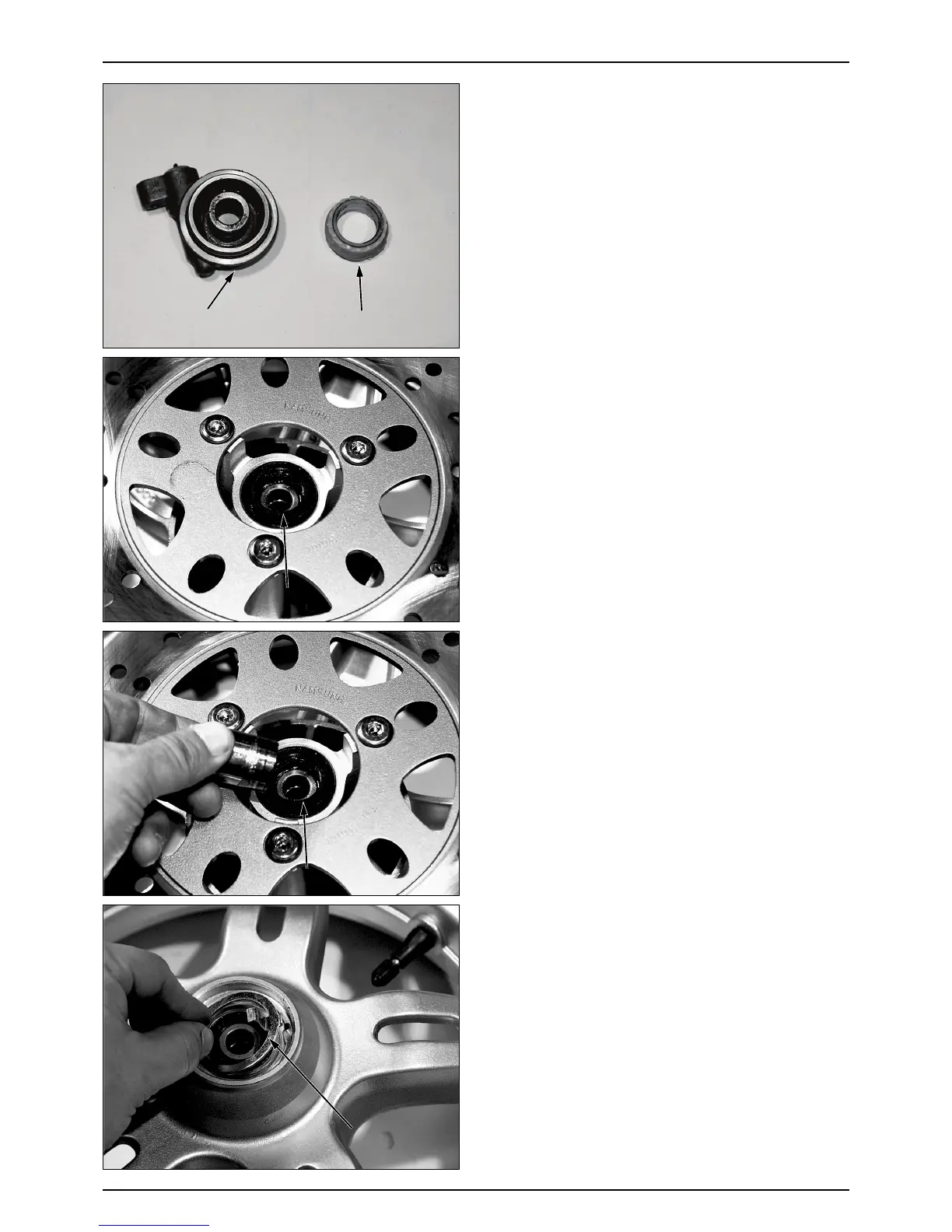

SPEEDOMETER GEAR REPLACEMENT

● Remove the speedometer gear and washer from the

speedometer gear box.

● Check the gear for wear or damage.

● Install the washer.

● Apply grease to the speedometer gear prior to

assembling.

● Install the washer.

● Apply grease to the speedometer gear unit and install.

FRONT WHEEL ASSEMBLY

● Apply grease to the left side dust seal rim.

● Install the left side dust seal.

● Install the brake disk.

● Install disk bolts.

TORQUE VALUE : 4.0~4.5kgf

● Install the left side collar.

● Install the speedometer gear unit by aligning its

retaining pawl with the hub cutout.

SPEEDOMETER GEAR BOX

SPEEDOMETER GEAR BOX SPEEDOMETER GEAR

SPEEDOMETER GEAR

DUST SEAL

RH. SIDE COLLAR

GEAR BOX RETAINER
