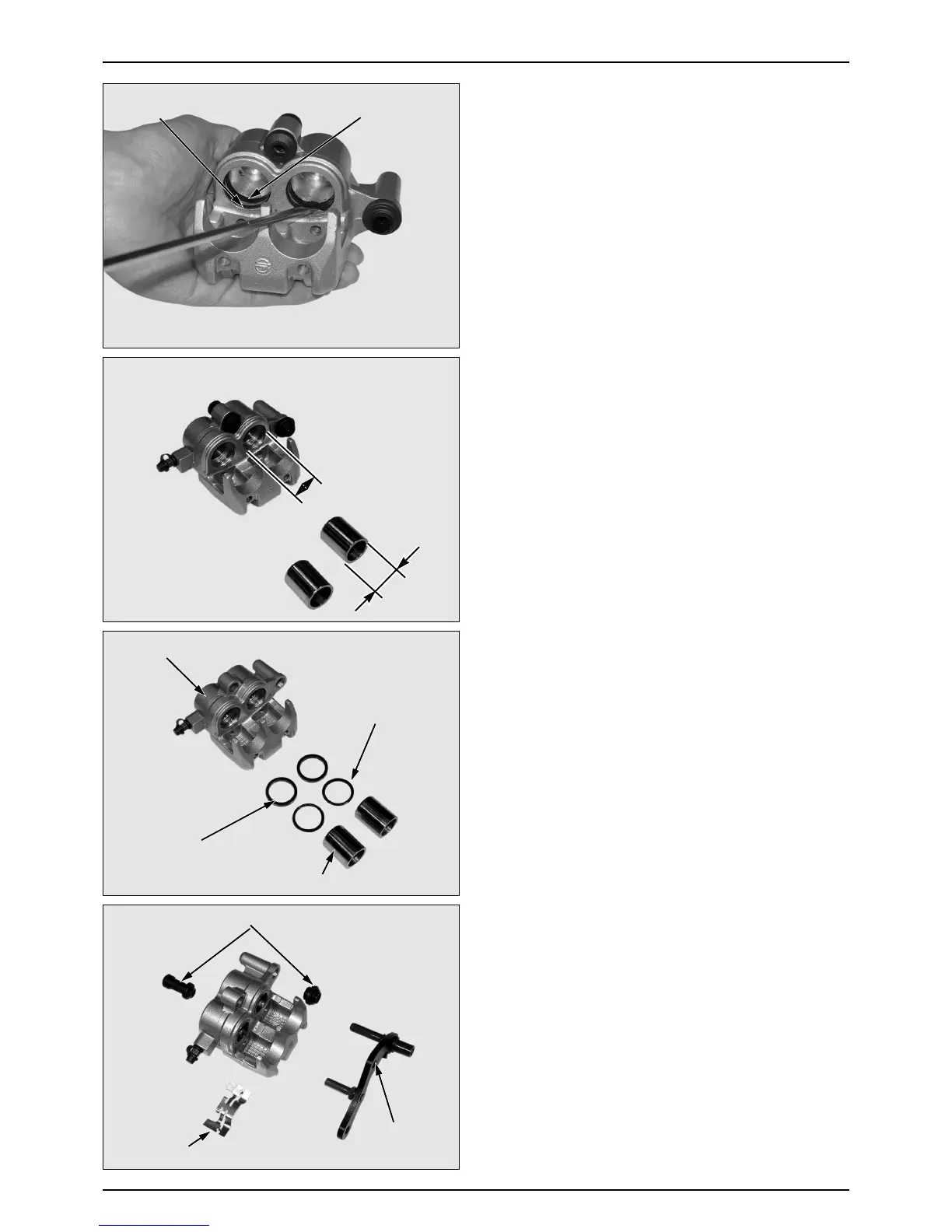

● Disassemble the piston seal and the dust seal.
● Clean the piston and inside of caliper with break fluid.
● Apply the silicone grease to the pin bush.
● Connect the pin bush to the portion of the caliper.
● Install the pad spring in the caliper.
● Install the caliper pin bolt and the caliper bracket in the
caliper.
● Install the break pad in the caliper.
BRAKE CALIPER ASSEMBLY
● Clean the piston seal and the dust seal with the brake
fluid and install them in the caliper. Install the piston in
the caliper with the groove side of the piston facing the
pad.
INSPECTION
● Check the caliper cylinder bore for scoring, scratches
or other damage.
● Measure the caliper I.D.
SERVICE LIMIT : 25.07mm
● Inspect piston surface for scratch or damage.
● Measure the piston O.D.
SERVICE LIMIT : 24.8mm
