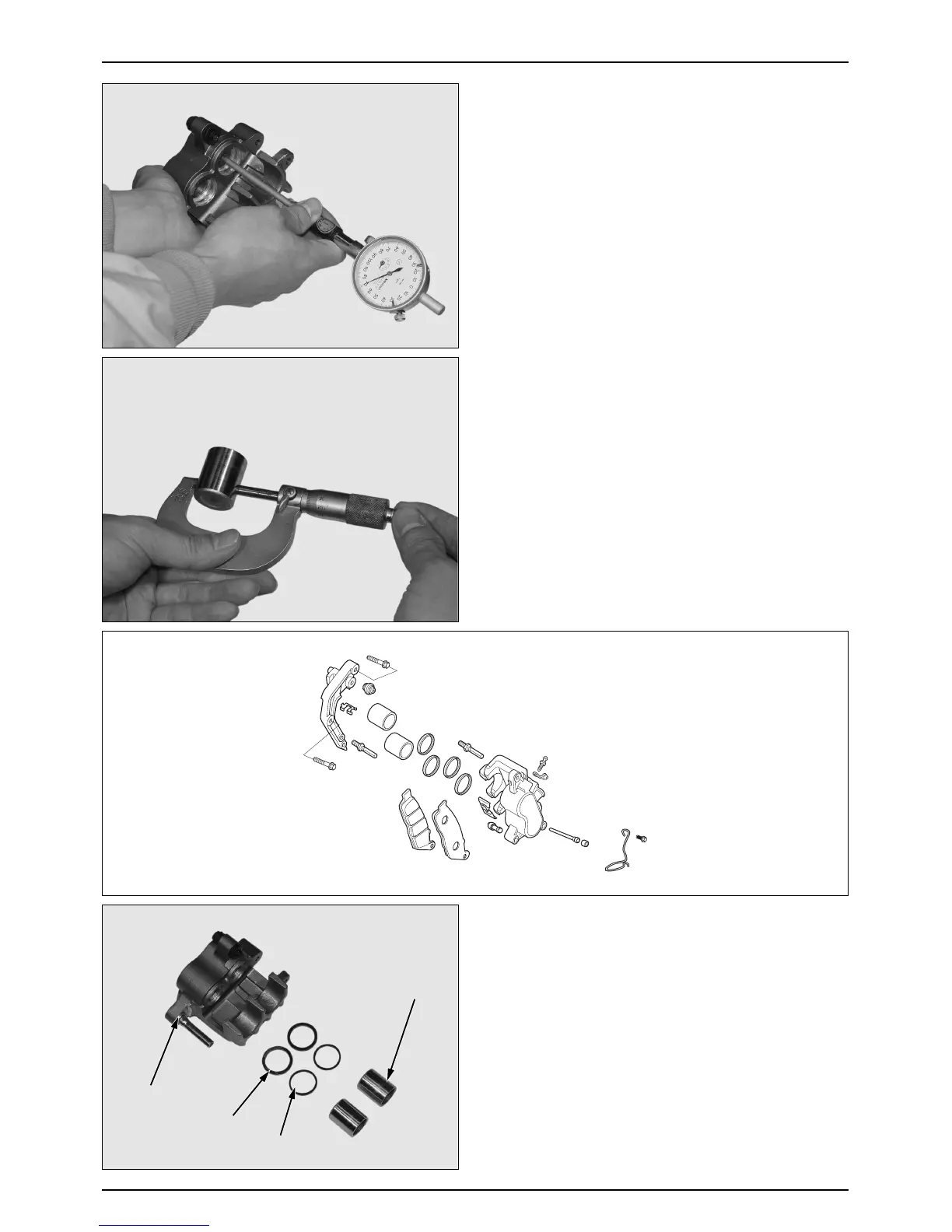

INSPECTION

● Check the caliper cylinder bore for scoring, scratches

or other damage.

● Measure the caliper I.D.

SERVICE LIMIT : 25.42mm

● Check the piston for scratches or wear.

● Measure the piston O.D. with a micrometer gauge.

SERVICE LIMIT : 25.27mm

● Clean the piston seal and the dust seal with the brake

fluid and install them in the caliper. Install the piston in

the caliper with the groove side of the piston facing the

pad.

14-13

FRONT WHEEL/FRONT FORK/STEERING/BRAKE

PISTON

PISTON SEAL

DUST SEAL

CALIPER
