DAELIM S2 250 Service Manual

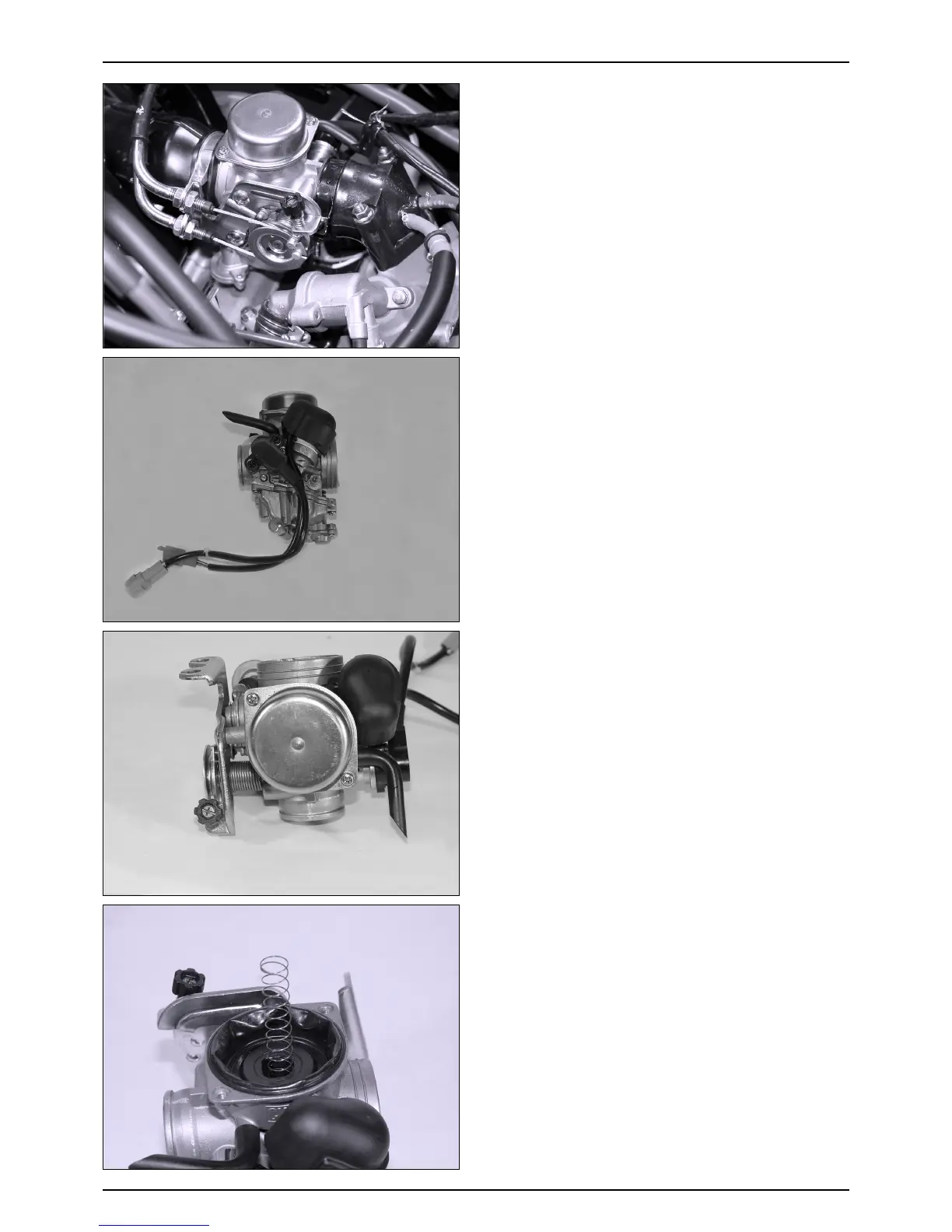

● Loosen the throttle cable lock nut, and remove the
throttle cable from the carburetor.
● Loosen the air cleaner connecting tube band and the
carburetor intake manifold band.
● Remove the carburetor
● Remove the two vacuum chamber cover screws and
the cover.
● Remove the compression spring and vacuum piston.
VACUUM CHAMBER REMOVAL
● Loosen the drain screw and drain the fuel from the float
chamber.
5-4
FUEL SYSTEM
