95XF series Inspection and adjustment
EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
3-49

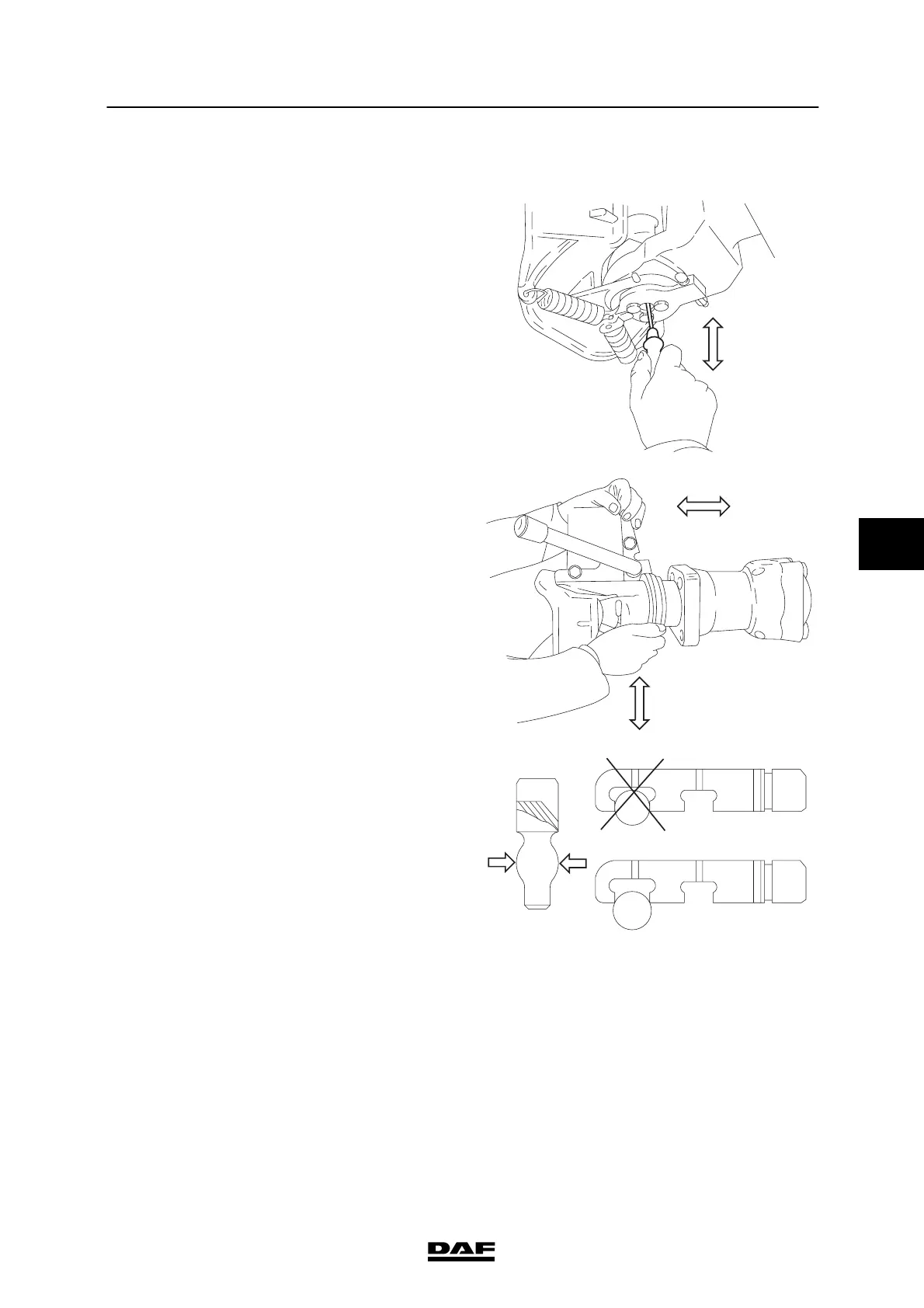

3.44 CHECKING THE TRAILER COUPLING
1. Check the upward play of the arched pin.
2. Check the radial play of the arched pin.
M9002
3. Check the vertical and horizontal play of the
coupling jaw.
M9001
4. Check the diameter of the arched pin.
5. Check the attachment of the trailer coupling
and the rear cross member.
Note:
For maximum play values, consult the
manufacturer’s instructions or the legal
requirements.
