DAF 95XF - Removal and Installation, Racor-Filter Element

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Removal and installation 95XF series
4-8
4.6 REMOVAL AND INSTALLATION, RACOR-FILTER ELEMENT
When removing the Racor filter
element, fuel will escape. Collect
the fuel to avoid the risk of fire.

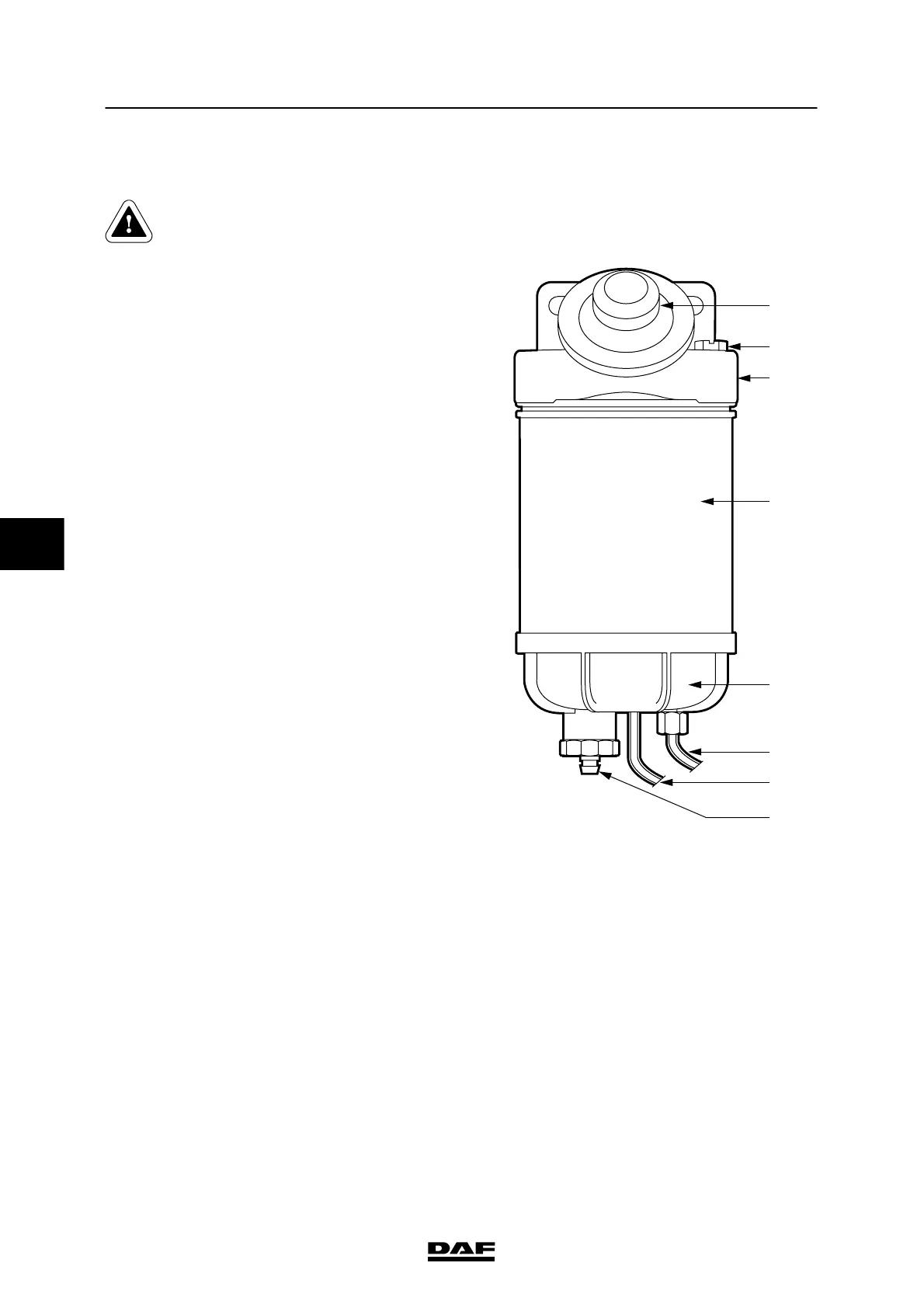

Removing the Racor filter element
1. Drain the fuel from the filter element by
unscrewing the bleed plug (2) and opening
the drain plug (8).
2. If fitted, disconnect the water sensor (6) and
the heating element (7) connectors.
3. Loosen the filter element (4) and the bottom
cover (5). Remove the bottom cover and
clean the O-ring seal.
Installing the Racor filter element
1. Apply a film of engine oil to the O-ring and
the new sealing ring. Fit the bottom cover
(5) to t he new filter element (4), fill the filter
with c lean diesel fuel and fit the assembly to
the f ilter housing (3).
2. Hand-tighten the new filter.
3. Connect the connector of the water sensor
and the heating element (if present).
4. Bleed the fuel system, if necessary. See
“Inspection and adjustment”.
5. Bleed the f ilter by operating the hand pump
with t he bleed nipple (2) opened, until the
fuel flows out. Close the bleed nipple.
6. Start the engine and check for leaks. If
necessary, tighten the filter.
