4.14 REMOVAL AND INSTALLATION, AIR DRYER FILTER ELEMENT
Removing the air dryer filter element

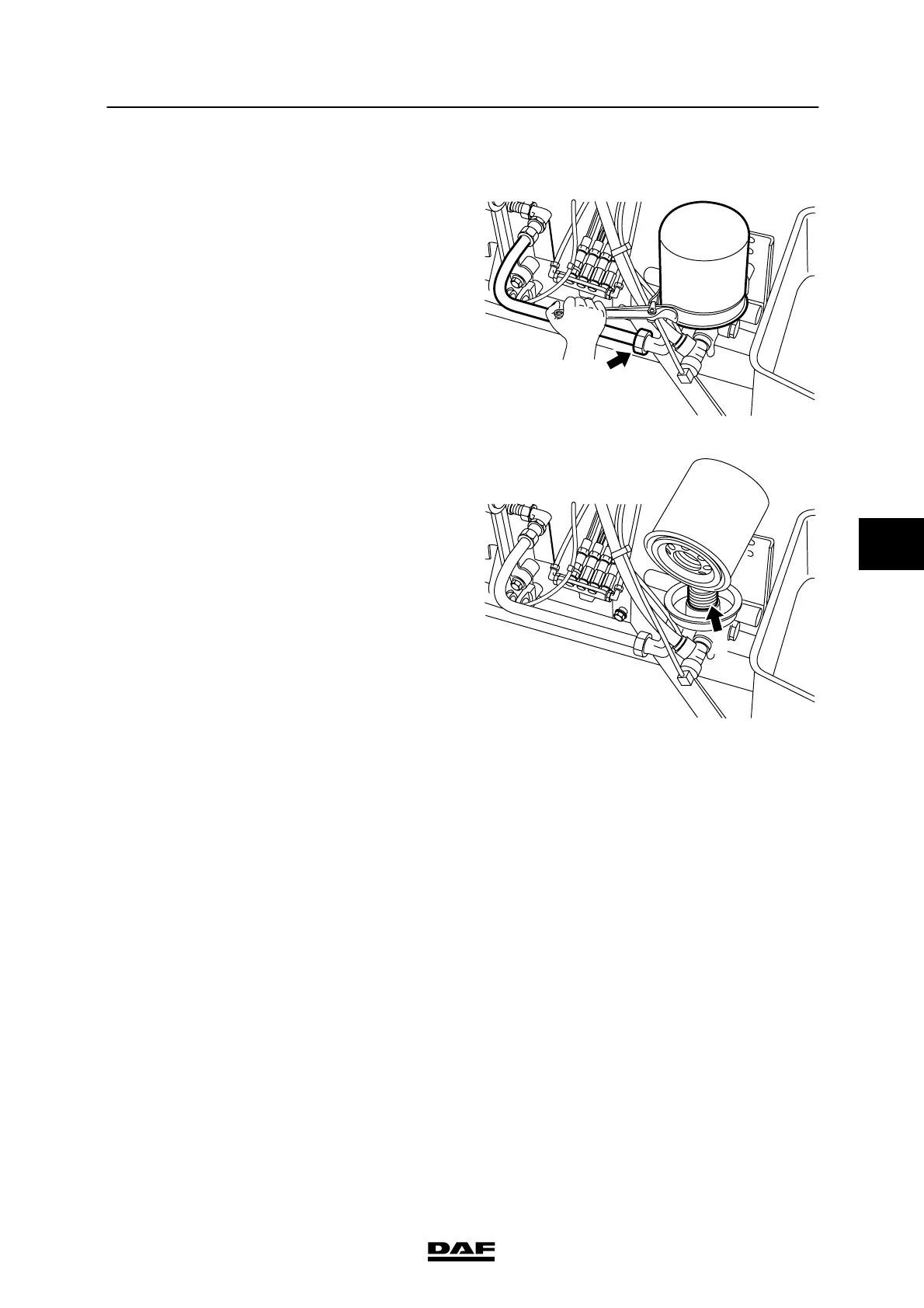

1. Remove the compressor line (1); as a
result, the inside of the air dryer will become
pressureless.
2. Remove the filter element by turning it
counter-clockwise using a strap wrench.
3. Clean the air dryer internally.
4. Check the air dryer threaded connection (2)
for damage and then lubricate it sparingly
with grease.
1
R600251
Installing the air dryer filter element
1. Lubricate the sealing ring of the new filter
element sparingly with grease.
2. Install the filter element by manually
tightening it until the sealing ring abuts.
Subsequently turn the air dryer filter
element one full turn by hand.
3. Fit the c ompressor line (1).
4. Pressurise the system and subsequently
check the air dryer for possible air leakage.
R600252
2
5
200424
