EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Inspection and adjustment 95XF series
3-4

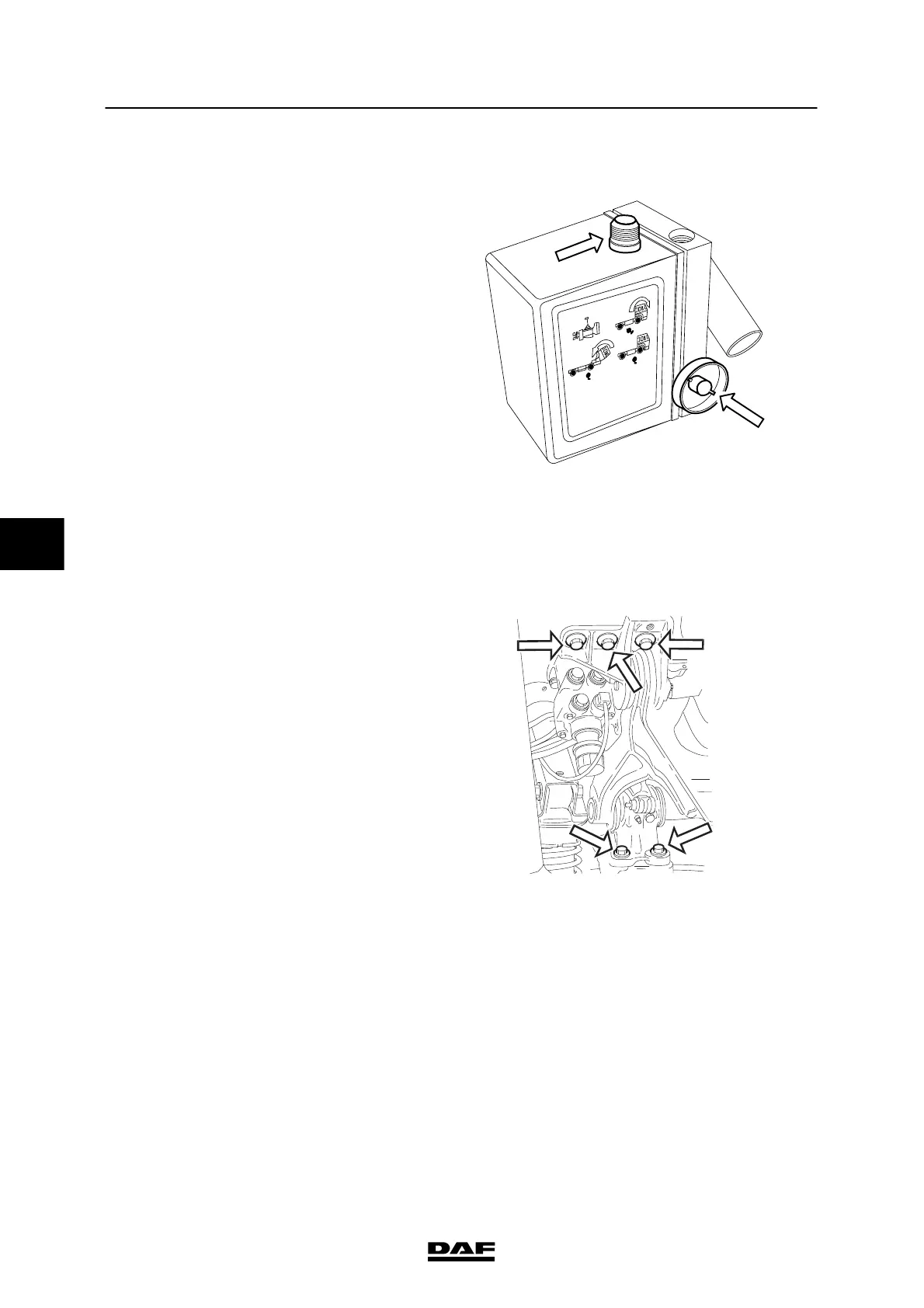

3.5 CHECKING THE FLUID LEVEL OF THE CAB TILTING PUMP
1. The fluid level must be checked when the
cab is t ilted back.
2. The cock (2) should be in the “lowering”
position (counter-clockwise).
3. Loosen filler plug (1) 3 to 4 turns and wait
until the overpressure, if any, has left the
reservoir. Now the filler plug can be
removed.
4. Start pumping with a maximum of five pump
strokes, making s ure that the pump lever is
in the lower position when finished.
5. Then check t he fluid level. This level should
be no more than 2 cm below the filling
opening.
Topupifnecessary.
6. Fit the f iller plug and hand-tighten it.
2
1
M1018
3.6 CHECKING THE CAB FASTENING
1. Check that all attachment bolts are present.
2. Visually inspect the attachment of the cab to
the t ilting mechanism.
3. Visually inspect the seals and condition of
the t ilting mechanism.
M1030
5
200424
