95XF series XF/XE engine
TECHNICAL DATA
1-1
1. XF/XE ENGINE
1.1 GENERAL
Valve clearance
Valve clearance (cold/warm):
inlet 0.45 mm
exhaust 0.45 mm
DEB
DEB setting 1.40 mm
V-belt tension
Belt tension “12.5–mm” V-belts in Newtons (N)
Multiple V-belt Single V-belt
raw-edge
1
raw-edge
1
New V-belt
2
Setting tension 1200 600
Test tension ≥800 ≥400
Worn-in V -belt
3
Minimum tension 500 250
Adjusting tension 700 350
(1)

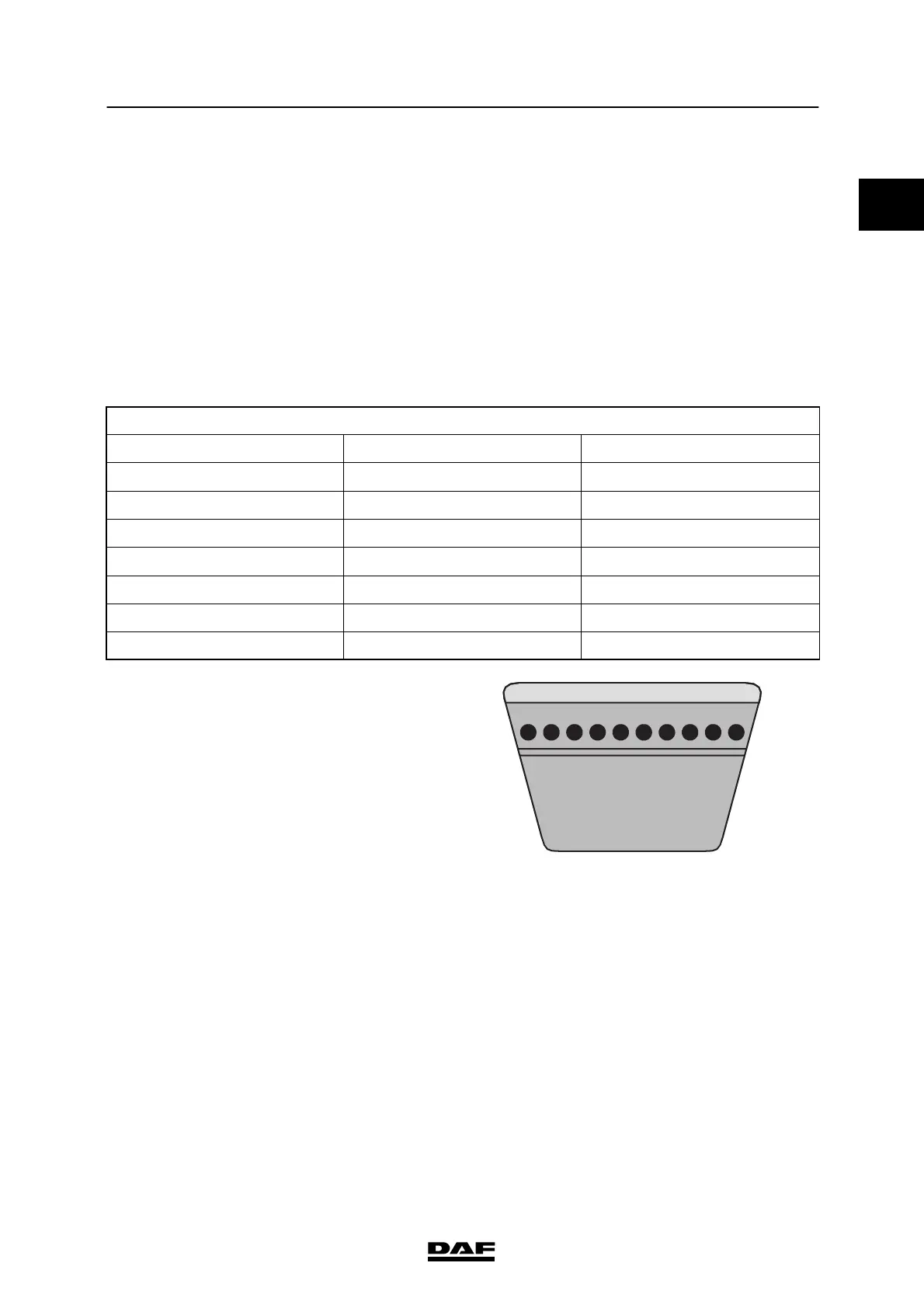

Raw-edge V-belts can be recognised by looking at
their edges and at the inside of the V-belt. Except for
the upper part of the belt side, no textile fabric is
present in the rubber (polished sides).
Version: either a toothed or a non-toothed belt.
(2)
After fitting the new V-belt, set the pre-tension to the
”setting tension” and after a trial run inspect whether
the pre-tension complies with the ”test tension”.
If the tension reading is lower than the ”test tension”
specified in the table, set the V-belt to the minimum
”test tension”.
(3)
If the V-belt tension is lower than the ”minimum
tension”, set the belt to the ”adjusting tension”.
M2121
