EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES
Removal and installation 95XF series
4-16
4.10 REMOVAL AND INSTALLATION, C-BRAKE
Removing the C-brake
1. Remove the C-brake connectors on the
C-brake housing.

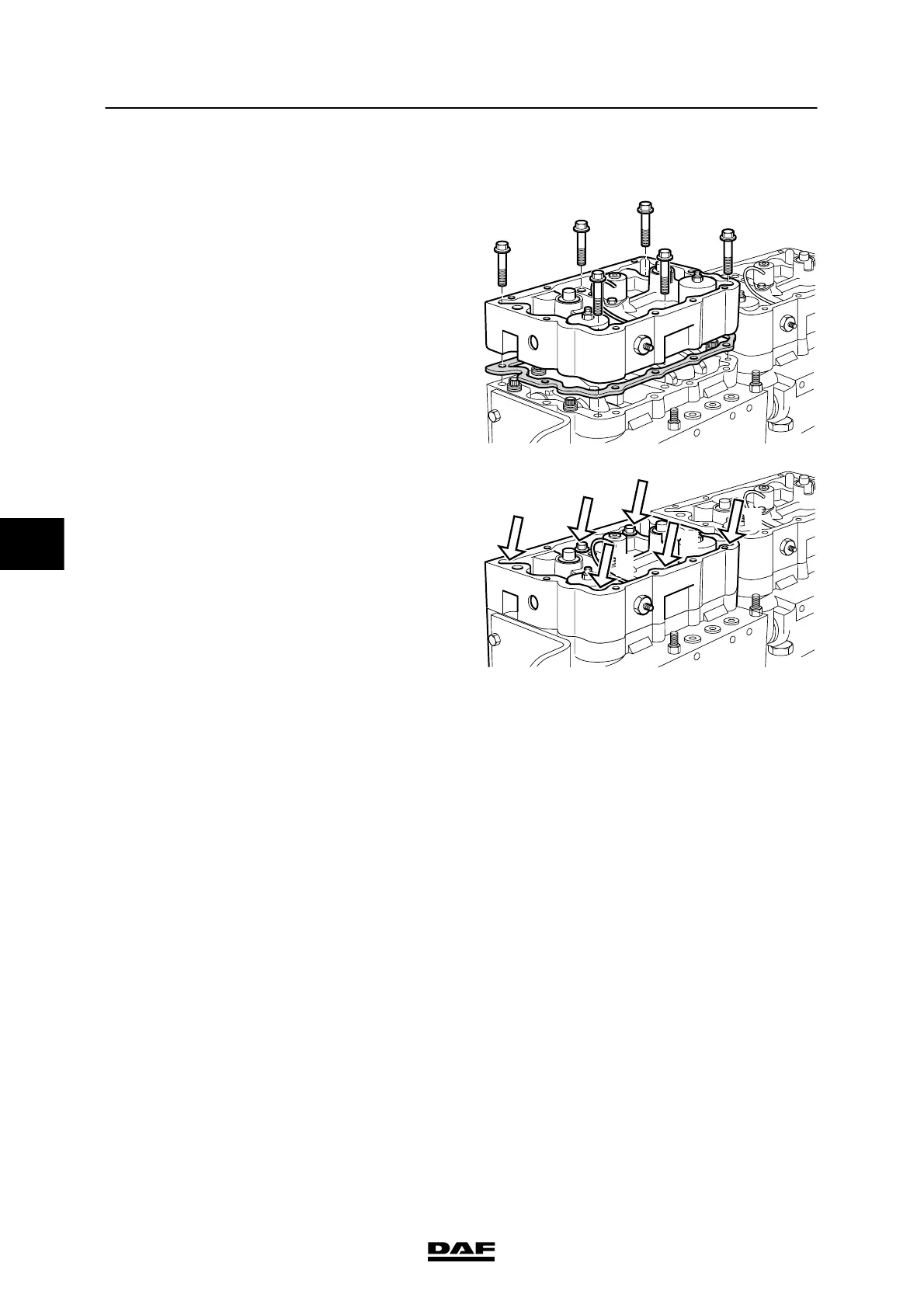

2. Remove the C-brake housing attachment
bolts.
Installing the C-brake
1. Clean and blow-dry the housing.
2. Apply a film of oil to the sealing face of the
C-brake housing.
3. Fit a new gasket.
4. Fit the C-brake (using two studs as guide
pins).
5. Fit the attachment bolts and tighten them, in
the order shown in the diagram, to the
specified t orque, see “Technical data”.
6. Fit the C-brake connectors.
7. Adjust the C-brake play, see “Inspection
and adjustment”.
M2135
M2136
1
2
5
4
6
3
5
200424
